CS-3845BN8 datasheet, PDF - EEWORLD Datasheet

CS-3845BN8: DescriptionSwitching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8,; CategoryPower/power management The power supply circuit; File Size307KB，6 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

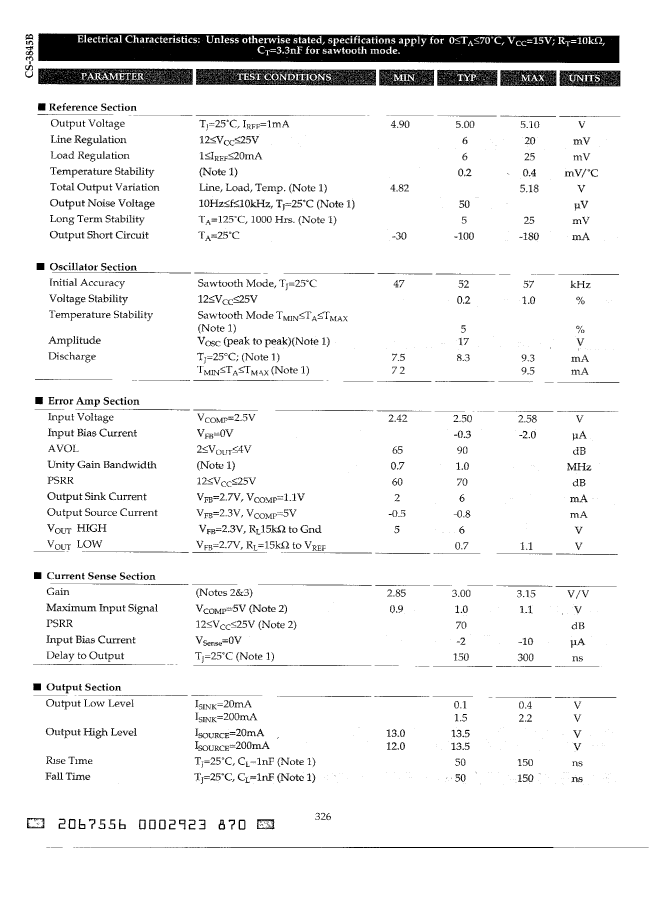

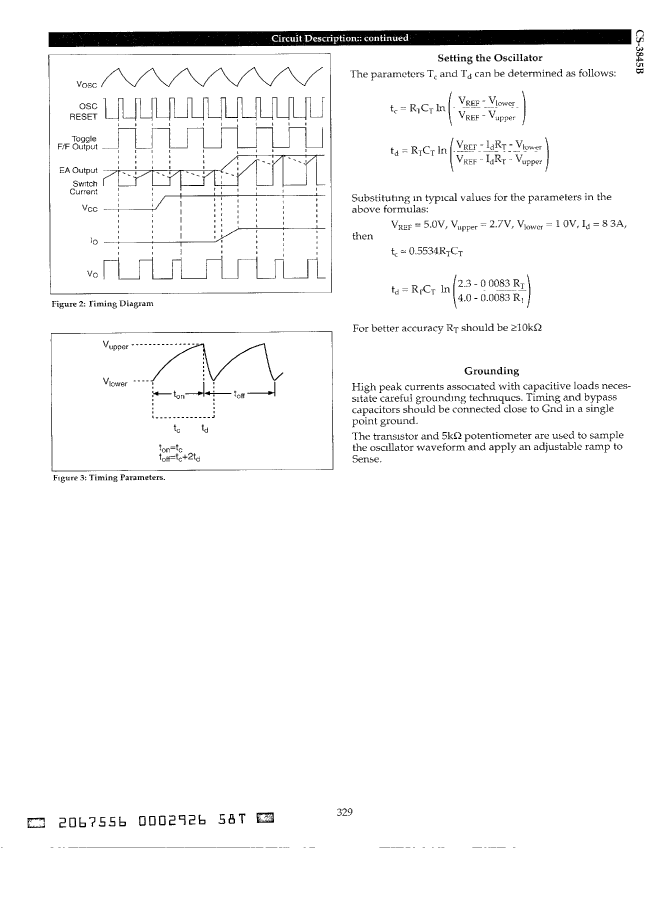

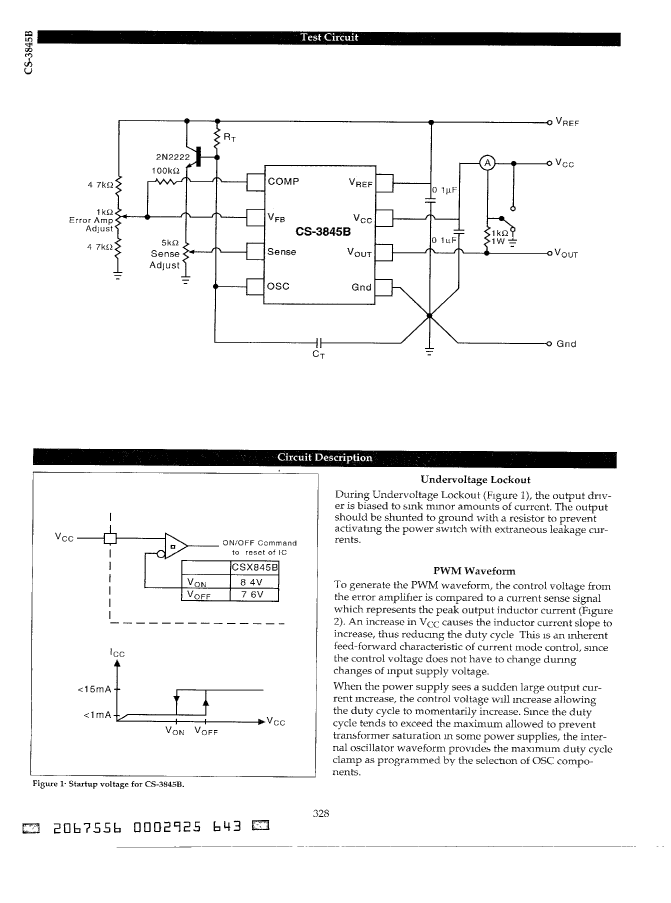

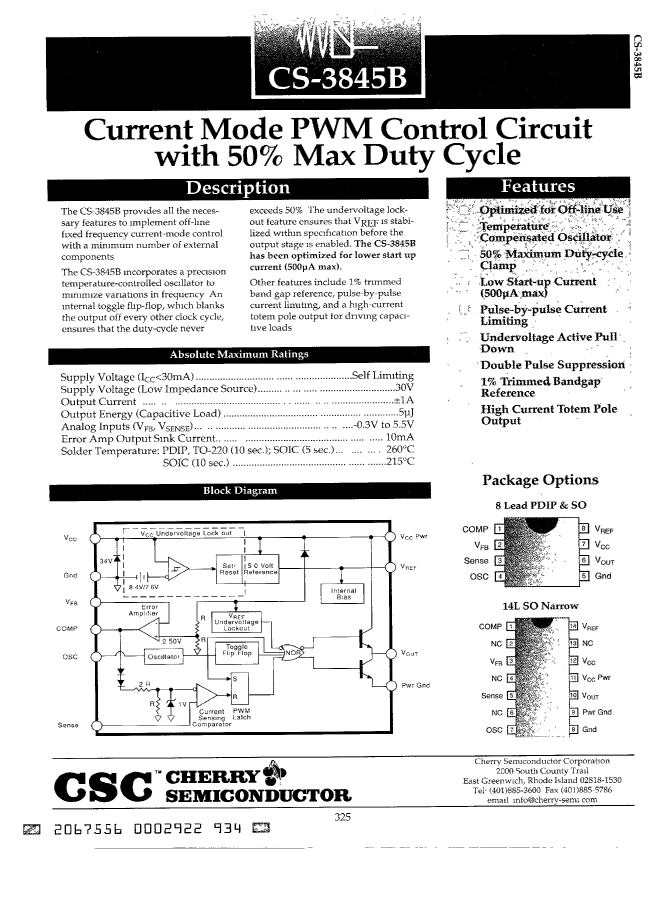

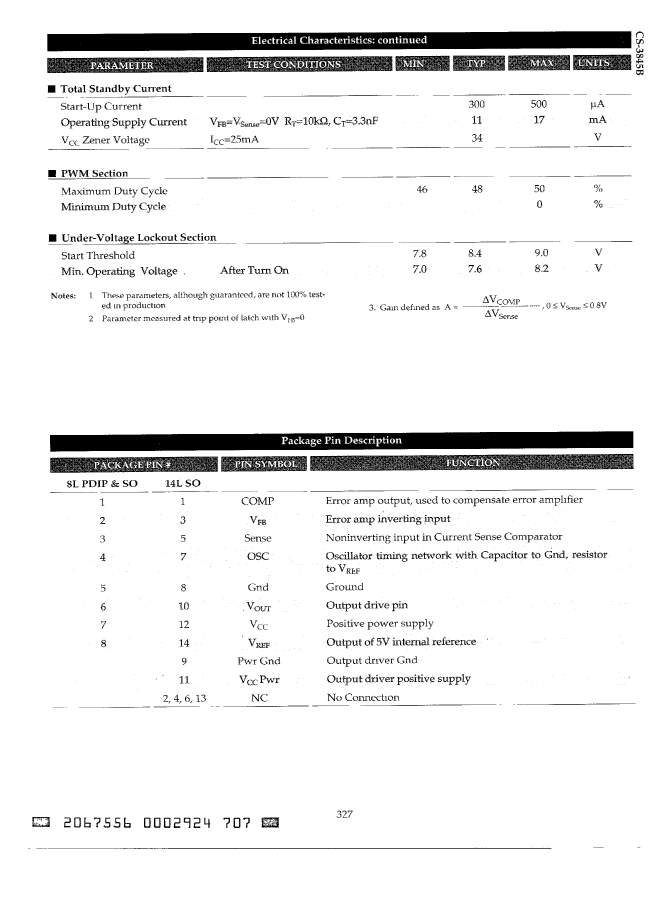

CS-3845BN8 Overview

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8,

Parameter Name	Attribute value
Maker	CHERRY
package instruction	,
Reach Compliance Code	unknown
Other features	HALF DUTY
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	25 V
Minimum input voltage	8.2 V
Nominal input voltage	15 V
JESD-30 code	R-PDIP-T8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1 A
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	17 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	500 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

This Material Copyrighted By Its Respective Manufacturer

	CS-3845BN8	CS-3845BD14	CS-3845BD8
Description	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8,	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO8,	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO8,
Reach Compliance Code	unknown	unknown	unknown
Other features	HALF DUTY	HALF DUTY	HALF DUTY
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	25 V	25 V	25 V
Minimum input voltage	8.2 V	8.2 V	8.2 V
Nominal input voltage	15 V	15 V	15 V
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C
Maximum output current	1 A	1 A	1 A
Nominal output voltage	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	17 mA	17 mA	17 mA
surface mount	NO	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE
Maximum switching frequency	500 kHz	500 kHz	500 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maker	CHERRY	CHERRY	-
encapsulated code	-	SOP	SOP
Base Number Matches	-	1	1
