HM2P67PDE331Z1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P67PDE331Z1LF

HM2P67PDE331Z1LF: DescriptionBoard Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P67PDE331Z1LF Overview

Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P67PDE331Z1LF Parametric

Parameter Name	Attribute value
Objectid	2142757322
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	127
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

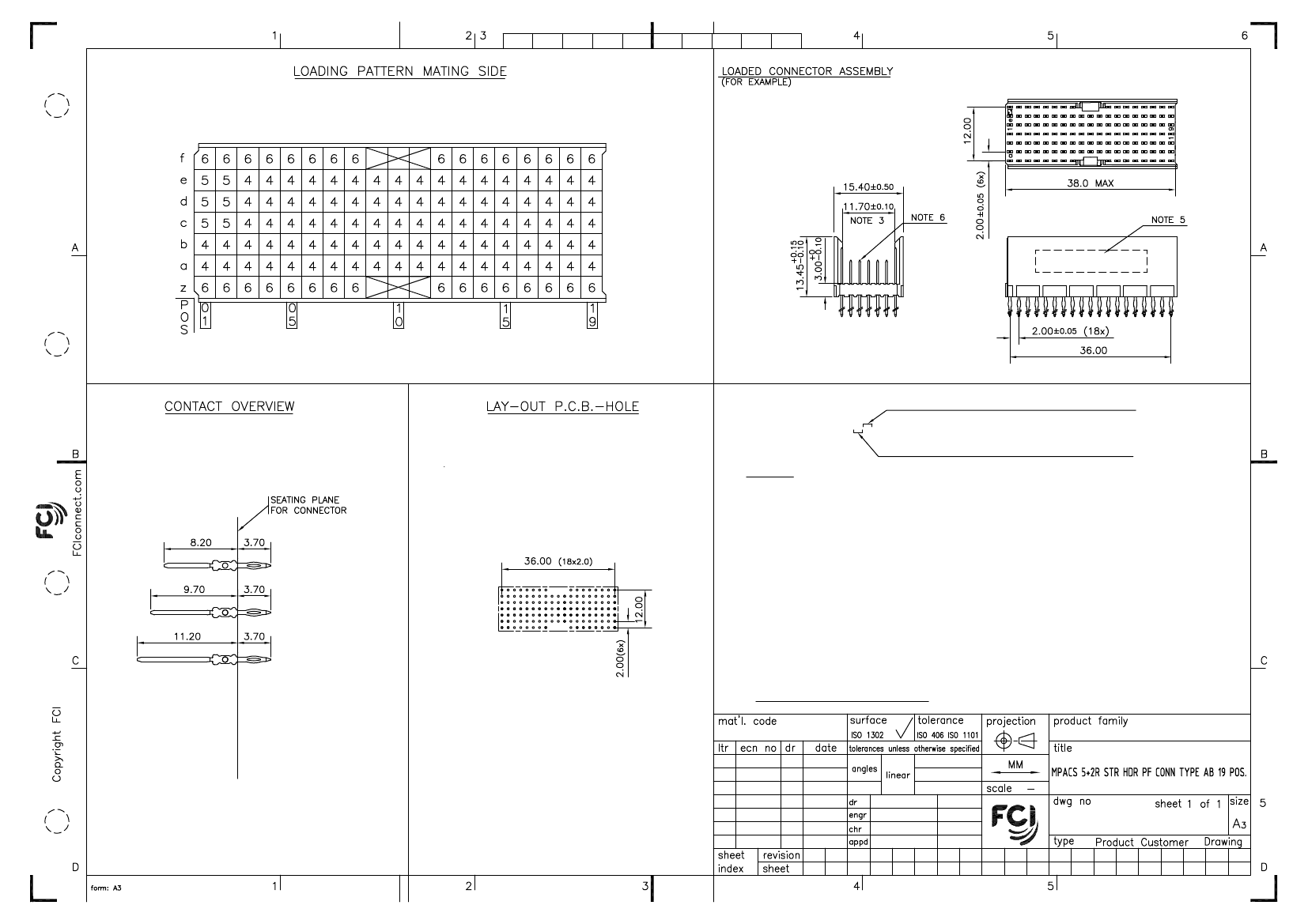

HM2P67PDE331----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P67PDE331----

SEE NOTE 4

I04-0030

I05-0188

I06-0090

MINI

2004/04/21

2005/10/13

2006/06/27

0°±1°

MINI K VANDANATH 2004/04/21

BIJU K PAUL

2004/04/21

2006/06/27

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028, 127

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007

HM2P67PDE331Z1LF Related Products

	HM2P67PDE331Z1LF	HM2P67PDE331N9LF	HM2P67PDE331Z1	HM2P67PDE331E9LF	HM2P67PDE331E9
Description	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Back Plane Connectors,2mm Hard Metric Series,Millipacs, Vertical Header, Type AB 19, 95 Signal Pin, Press Fit Tail,Shielded, 250 mating cycles and ROHS Compliant	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,
Objectid	2142757322	2142757320	2142757323	2142757318	2142757319
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
YTEOL	8.6	8.6	8.6	8.6	8.6
Other features	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	127	127	127	127	127
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	-
Manufacturer's serial number	HM2	-	HM2	HM2	-
