M6EH / SM6EH
Double-Balanced Mixer
Rev. V2
Features
•
•
•
•
•
•
LO 5 to 750 MHz
RF 5 to 500 MHz
IF DC to 500 MHz
LO Drive +20 dBm (nominal)
High Intercept Point +28.5 dBm (typ)
High Isolation 45 dB (typ)

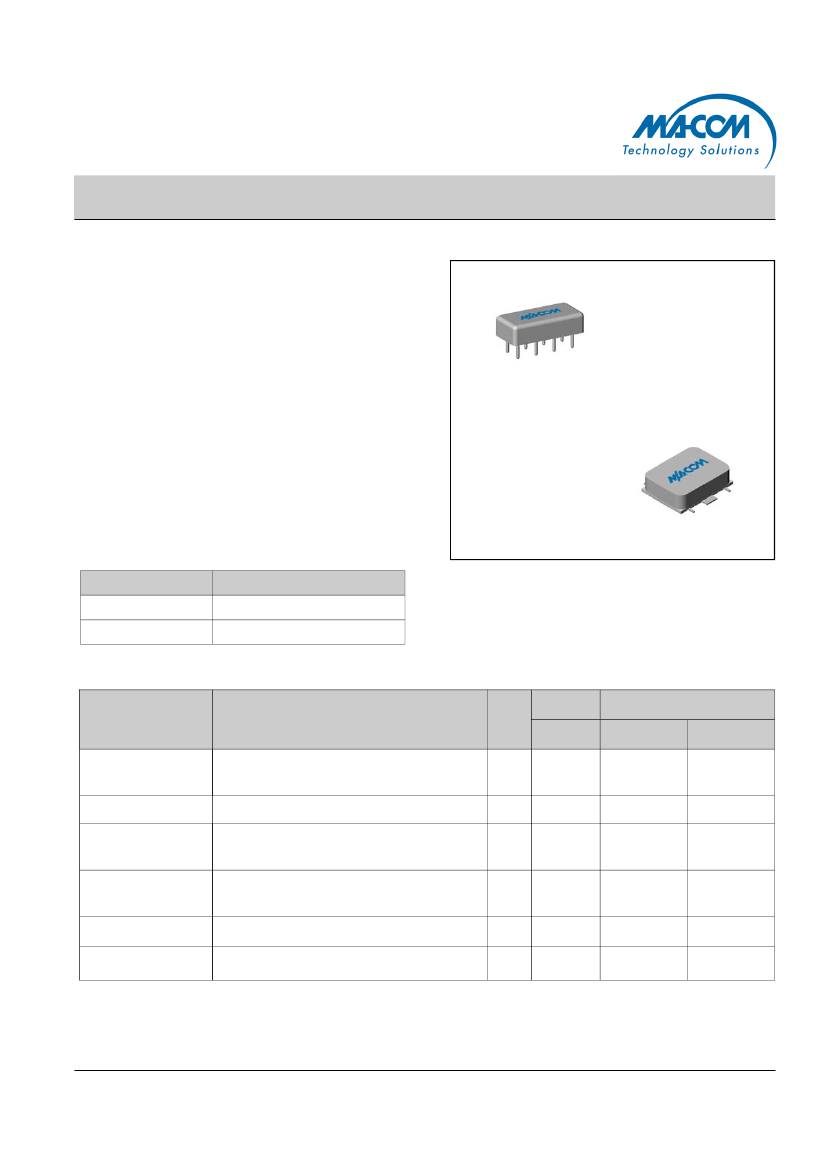

Product Image
Description
The M6EH/SM6EH is a double balanced mixer, designed for use
in military, commercial and test equipment applications. The
design utilizes Schottky ring quad diodes and broadband ferrite
baluns to attain excellent performance. This mixer can also be
used as a phase detector and/or bi-phase modulator since the IF
port is DC coupled to the diodes. Environmental screening avail-
able to MIL-STD-883, MIL-STD-202, or MIL-DTL-28837, consult
factory.
Ordering Information
Part Number
M6EH
SM6EH
Package
Relay Header
Surface Mount
Electrical Specifications: Z
0
= 50Ω Lo = +20 dBm (Downconverter application only)
Typical
Parameter
SSB Conversion Loss
(max)
SSB Noise Figure (max)
Isolation, L to R (min)
Guaranteed
+25ºC
-54º to +85ºC
7.3
7.8
8.8
____
39
29
19
39
24
17
Test Conditions
fR = 10 to 100 MHz , fL = 10 to 100 MHz, fI = 10 to 100 MHz
fR = 100 to 250 MHz , fL = 100 to 250 MHz, fI = 10 to 250 MHz
fR = 5 to 500 MHz, fL = 5 to 750 MHz, fI = 0.5 to 500 MHz
Within 1 db of conversion loss
fL = 5 to 200 MHz
fL = 200 to 500 MHz
fL = 500 to 750 MHz
fL = 5 to 200 MHz
fL = 200 to 500 MHz
fL = 500 to 750 MHz
fL = +20 dBm
fR1 = 250 MHz 0 dBm, fR2 = 260 MHz 0 dBm, fL =
300 MHz +20 dBm
Units
5.5
6.0
6.5
____
60
45
35
55
40
30
+13
+28.5
7.0
7.5
8.5
____
40
30
20
40
25
18
dB
dB
dB
Isolation, L to I (min)
dB
1 dB Conversion Comp.
Input IP3
dBm
dBm
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
M6EH / SM6EH
Double-Balanced Mixer
Rev. V2

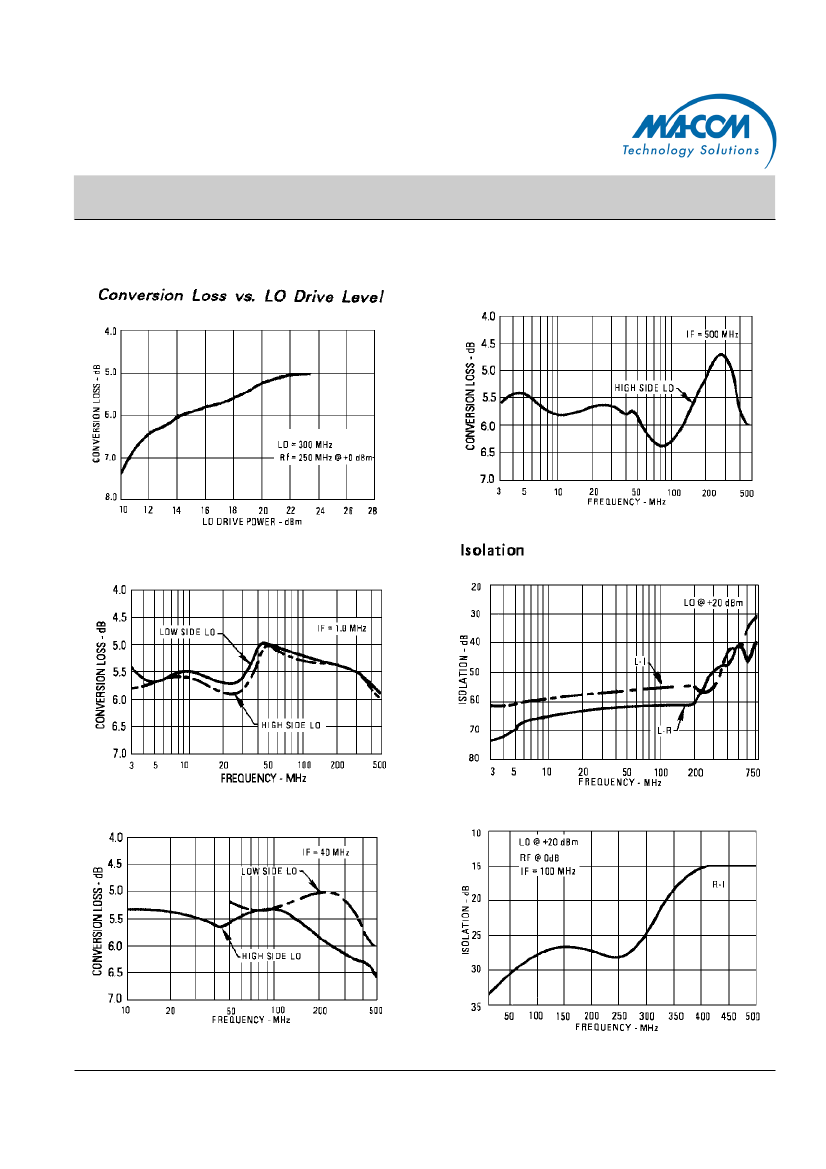

Typical Performance Curves
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
M6EH / SM6EH
Double-Balanced Mixer
Rev. V2
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current

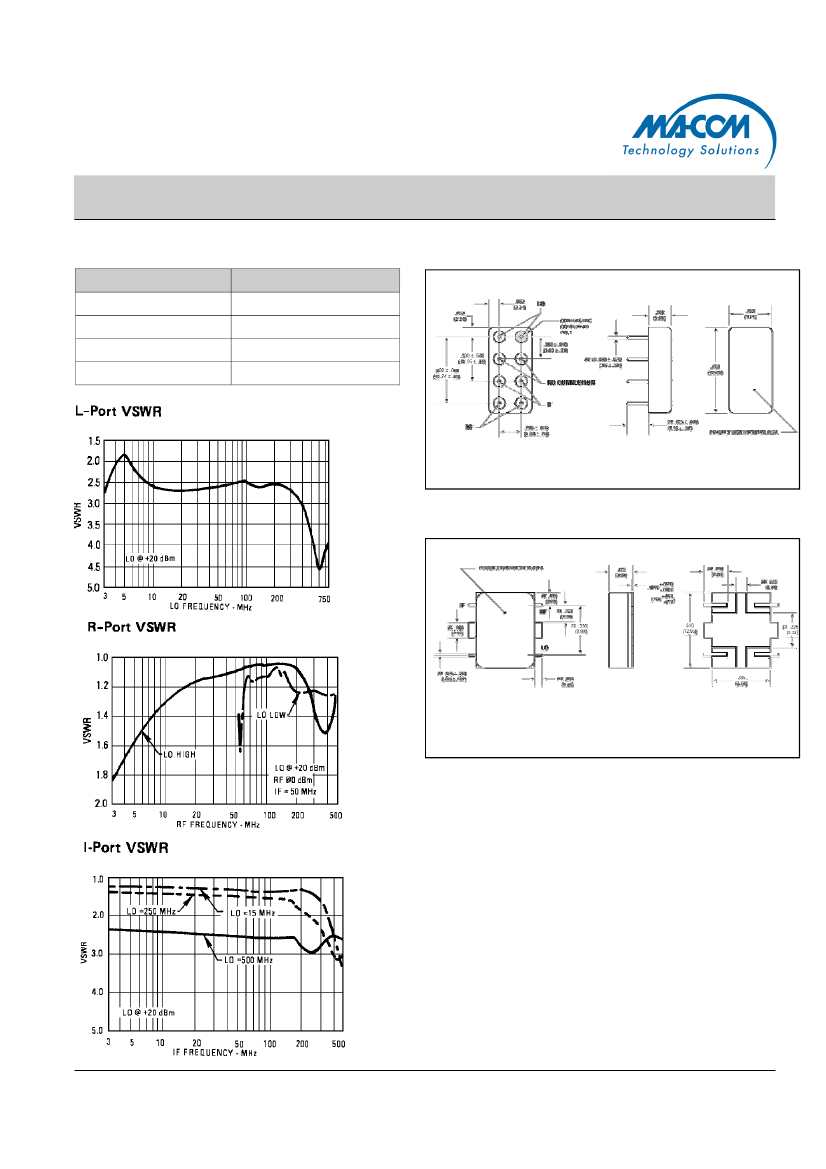

Outline Drawing: Relay Header
*
Absolute Maximum
-54ºC to +100ºC
-65ºC to +100ºC
+26 dBm max @ +25ºC
50 mA DC
Weight: 3 grams (0.11 oz.) max
Outline Drawing: Surface Mount
*
Weight: 2 grams (0.07 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
