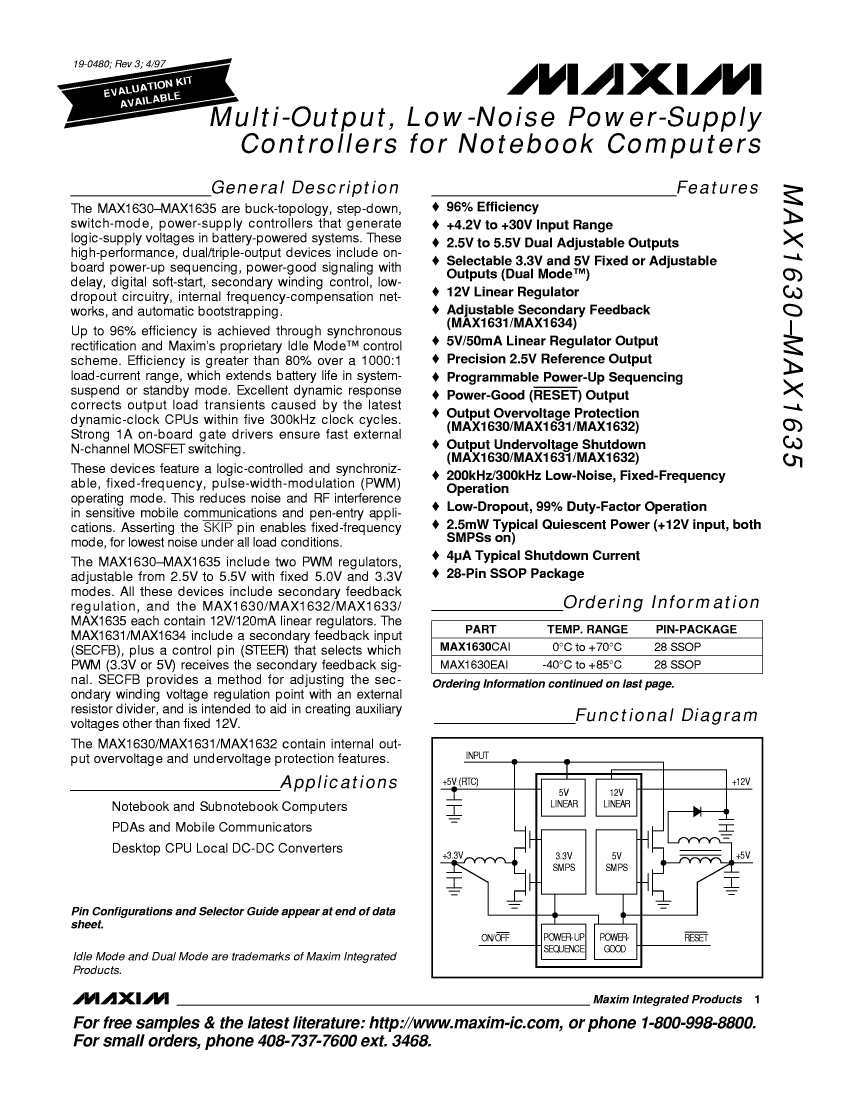

Switching Controller, Current-mode, 300kHz Switching Freq-Max, BICMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28

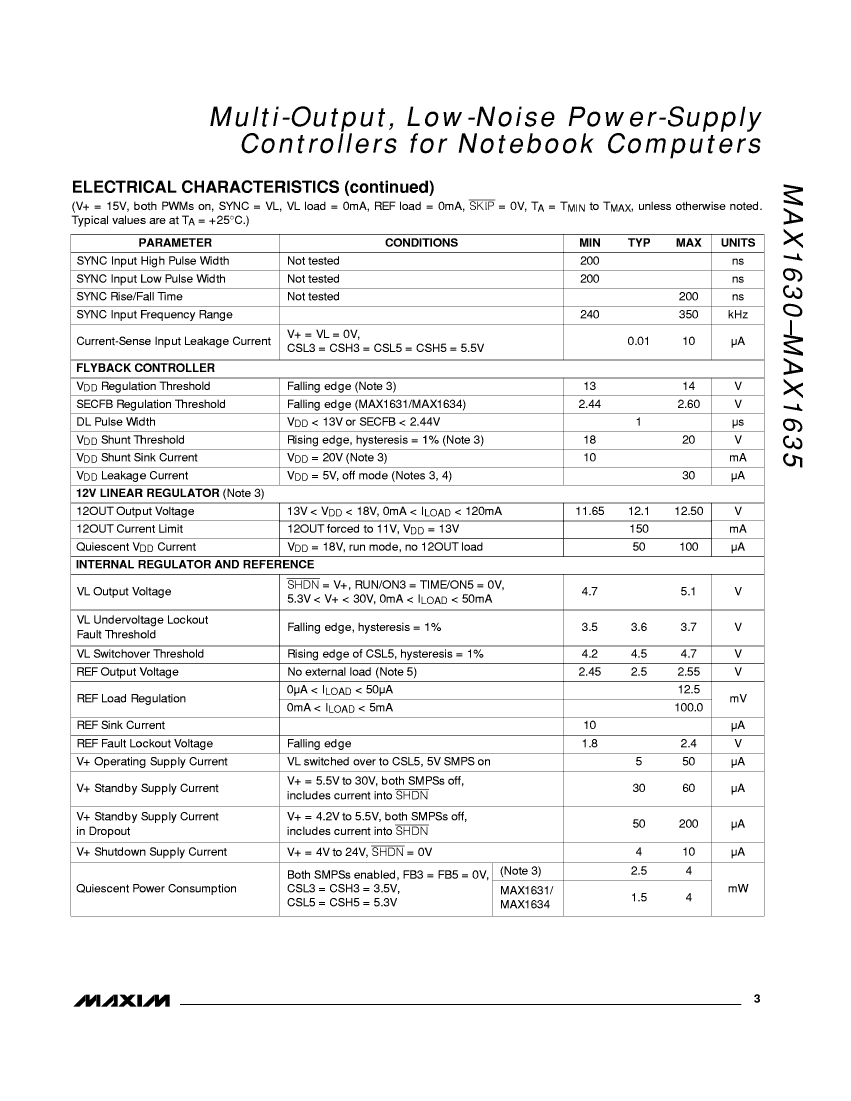

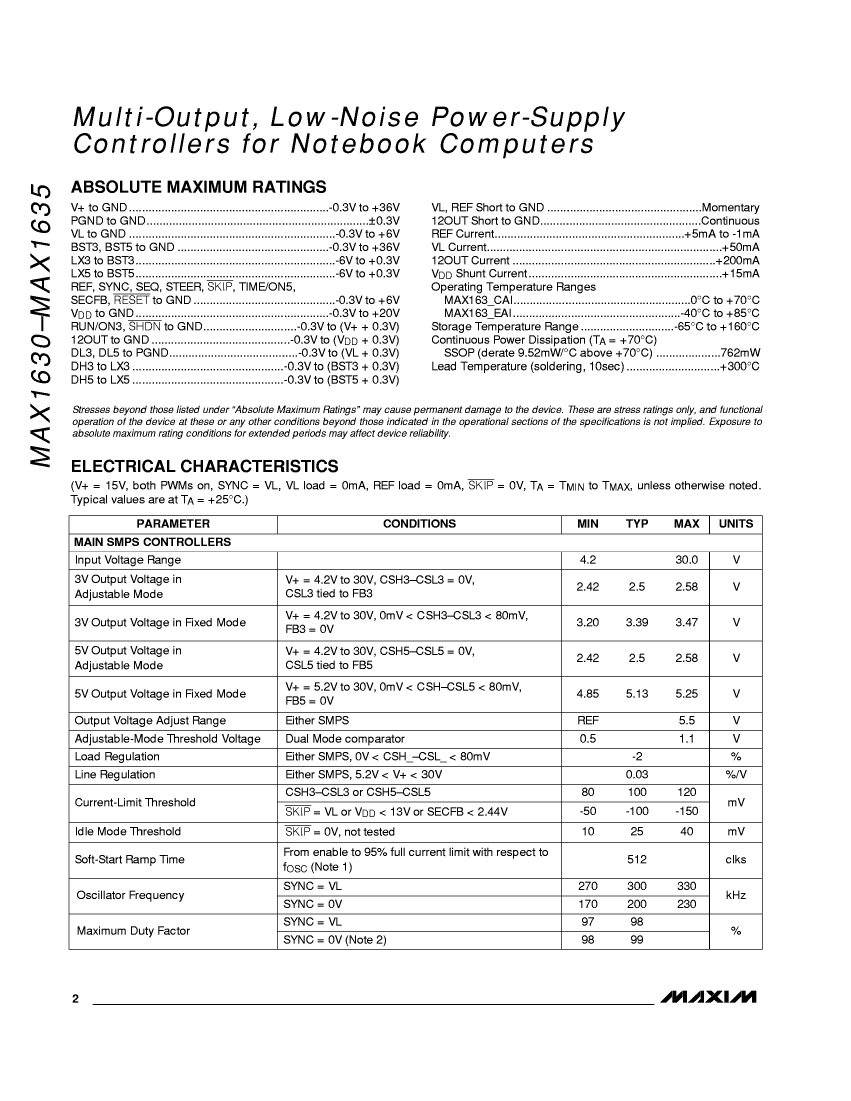

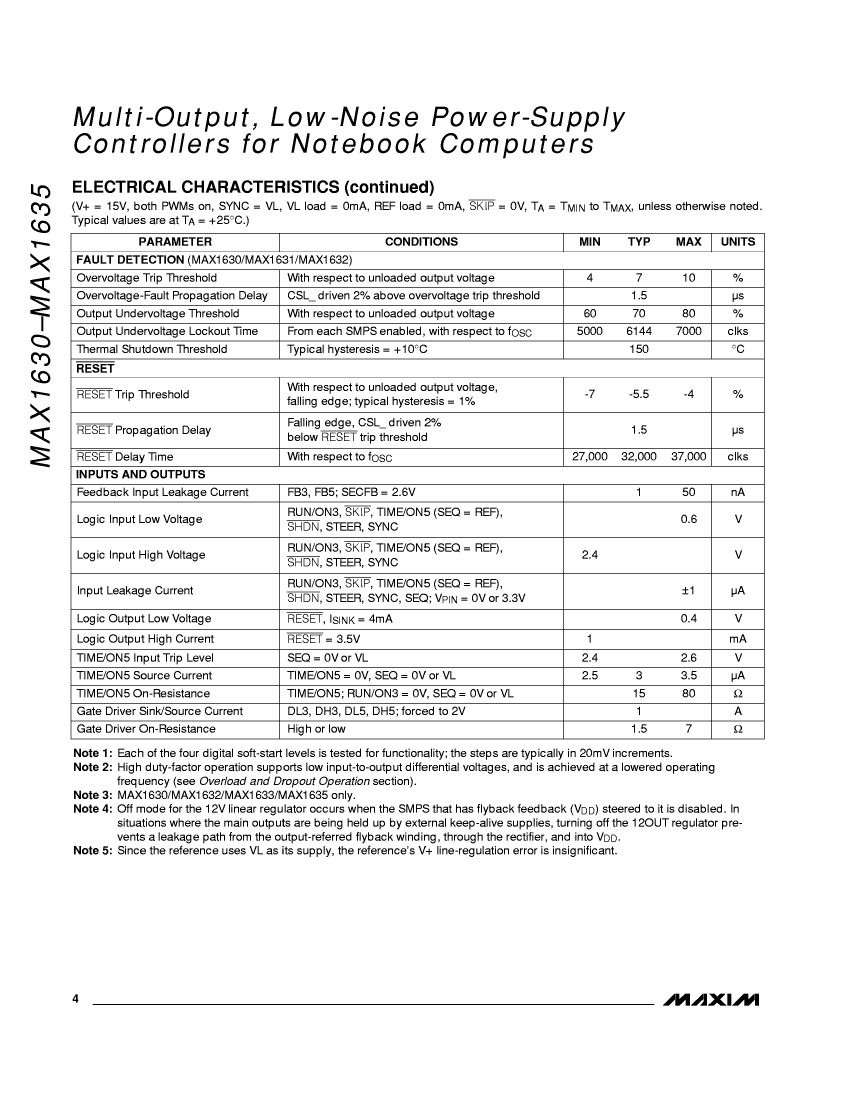

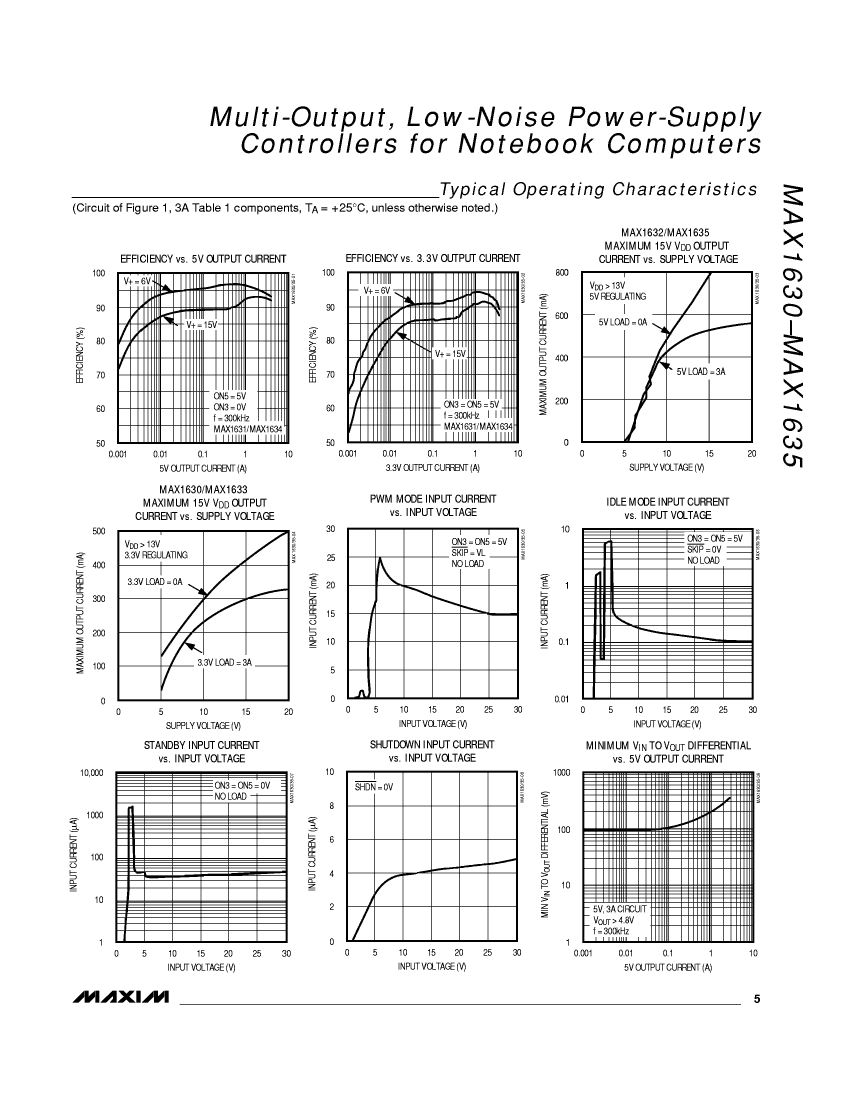

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Maxim |
| Parts packaging code | SSOP |
| package instruction | SSOP, |
| Contacts | 28 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER |
| control mode | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 30 V |
| Minimum input voltage | 4.2 V |
| Nominal input voltage | 15 V |
| JESD-30 code | R-PDSO-G28 |
| JESD-609 code | e3 |
| length | 10.2 mm |
| Humidity sensitivity level | 1 |
| Number of functions | 1 |
| Number of terminals | 28 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Nominal output voltage | 12 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum seat height | 1.99 mm |
| Maximum supply current (Isup) | 0.05 mA |
| surface mount | YES |
| Switch configuration | PUSH-PULL |
| Maximum switching frequency | 300 kHz |
| technology | BICMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 5.29 mm |
| MAX1630EAI+T | MAX1631CAI+T | MAX1635EAI+T | |
|---|---|---|---|
| Description | Switching Controller, Current-mode, 300kHz Switching Freq-Max, BICMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28 | Switching Controller, Current-mode, 300kHz Switching Freq-Max, BICMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28 | Switching Controller, Current-mode, 300kHz Switching Freq-Max, BICMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28 |
| Is it lead-free? | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to |
| Maker | Maxim | Maxim | Maxim |
| Parts packaging code | SSOP | SSOP | SSOP |
| package instruction | SSOP, | SSOP, | SSOP, |
| Contacts | 28 | 28 | 28 |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER |
| control mode | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 30 V | 30 V | 30 V |
| Minimum input voltage | 4.2 V | 4.2 V | 4.2 V |
| Nominal input voltage | 15 V | 15 V | 15 V |
| JESD-30 code | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 |
| JESD-609 code | e3 | e3 | e3 |
| length | 10.2 mm | 10.2 mm | 10.2 mm |
| Humidity sensitivity level | 1 | 1 | 1 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 |
| Maximum operating temperature | 85 °C | 70 °C | 85 °C |
| Minimum operating temperature | -40 °C | - | -40 °C |
| Nominal output voltage | 12 V | 5 V | 12 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SSOP | SSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.99 mm | 1.99 mm | 1.99 mm |
| Maximum supply current (Isup) | 0.05 mA | 0.05 mA | 0.05 mA |
| surface mount | YES | YES | YES |
| Switch configuration | PUSH-PULL | PUSH-PULL | PUSH-PULL |
| Maximum switching frequency | 300 kHz | 300 kHz | 300 kHz |
| technology | BICMOS | BICMOS | BICMOS |
| Temperature level | INDUSTRIAL | COMMERCIAL | INDUSTRIAL |
| Terminal surface | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 0.65 mm | 0.65 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 5.29 mm | 5.29 mm | 5.29 mm |
