EP13E7C2J-32.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EP13E7C2J-32.000MTR

EP13E7C2J-32.000MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 32MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components oscillator; File Size123KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EP13E7C2J-32.000MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 32MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC PACKAGE-4

EP13E7C2J-32.000MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVHCMOS
Output load	30 pF
physical size	3.2mm x 2.5mm x 1.05mm
longest rise time	6 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EP13E7

Series

•

Programmable Crystal Oscillators

•

LVCMOS Output

• +3.3V

Supply Voltage

•

Tri-State and Power Down Options

•

4 Pad Ceramic SMD Package

•

RoHS Compliant (Pb-Free)

EP13E7

1.05

3.2

2.5

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Nominal Frequency

3.300MHz, 3.6864MHz, 5.000MHz, 6.000MHz, 6.144MHz, 7.000MHz, 8.000MHz, 9.000MHz,

10.000MHz, 12.000MHz, 14.7456MHz, 16.000MHz , 19.200MHz, 20.000MHz, 24.000MHz,

25.000MHz, 26.000MHz, 27.000MHz, 30.000MHz, 32.000MHz, 33.000MHz, 33.330MHz, 33.333MHz,

37.500MHz, 40.000MHz, 48.000MHz, 50.000MHz, 52.000MHz, 54.000MHz, 55.000MHz, 66.000MHz,

70.000MHz, 75.000MHz, 80.000MHz, 83.000MHz, 88.000MHz, 96.000MHz, and 100.000MHz

-20°C to 70°C or -40°C to 85°C

-55°C to 125°C

3.3V

±5%

12mA Maximum

3.300MHz to 25.000MHz

17mA Maximum

25.001MHz to 75.000MHz

22mA Maximum

75.001MHz to 90.000MHz

25mA Maximum

90.001MHz to 100.000MHz

Inclusive of All Conditions: Calibration Tolerance at 25°C , ±25ppm, 50ppm or ±100ppm Maximum

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, 1st Year

Aging at 25°C, 260°C Reflow, Shock, and Vibration

90% of V

Minimum

= -8mA

= +8mA

10% of V

Maximum

3.300MHz to 50.000MHz, 20% to 80% of waveform

6nSeconds Maximum

50.001MHz to 75.000MHz, 20% to 80% of waveform

4nSeconds Maximum

75.001MHz to 100.000MHz, 20% to 80% of waveform

2nSeconds Maximum

at 50% of waveform

50 ±5(%)

3.300MHz to 50.000MHz

30pF Maximum

50.001MHz to 100.000MHz

15pF Maximum

Tri-State or Power Down

of 90% of V

Minimum

Enables Output

No Connection

Enables Output

of 10% of V

Maximum

Disables Output

Disabled Output (Logic Low)

30µA Maximum

Disabled Output (High Impedance)

8mA Maximum

3.300MHz to 24.999999MHz

350pSec Maximum

25.000MHz to 100.000MHz

200pSec Maximum

±5ppm/Year Maximum

10mSec Maximum

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Pad 1 Connection

Pad 1 Input Voltage

Standby Current

Disable Current

Absolute Clock Jitter

Aging at 25°

Start Up Time

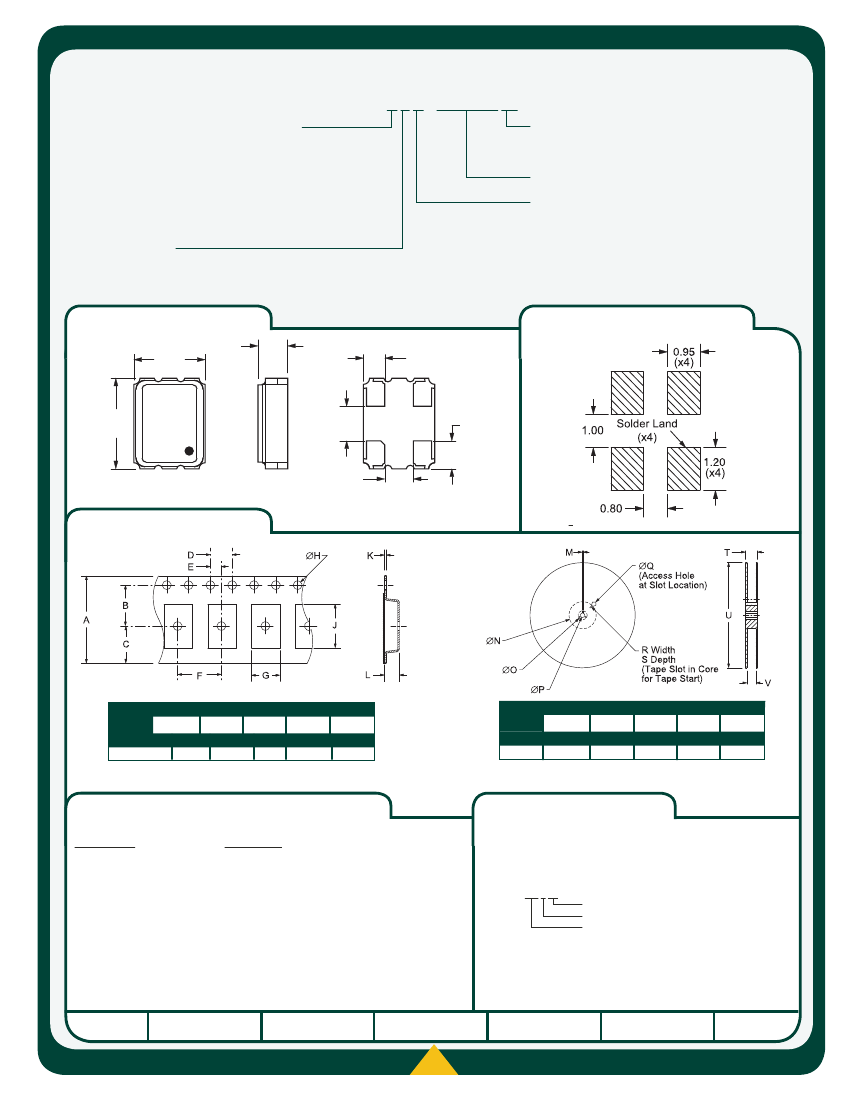

MANUFACTURER
