SC50C40 datasheet, PDF - EEWORLD Datasheet

SC50C40: DescriptionSilicon Controlled Rectifier, 50000mA I(T), 400V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size174KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

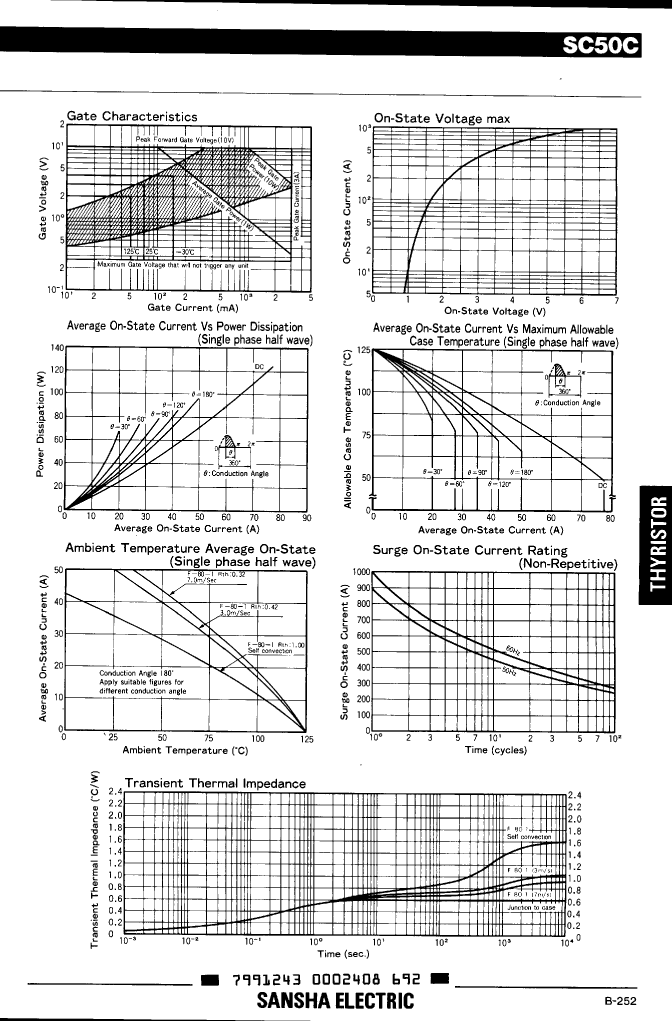

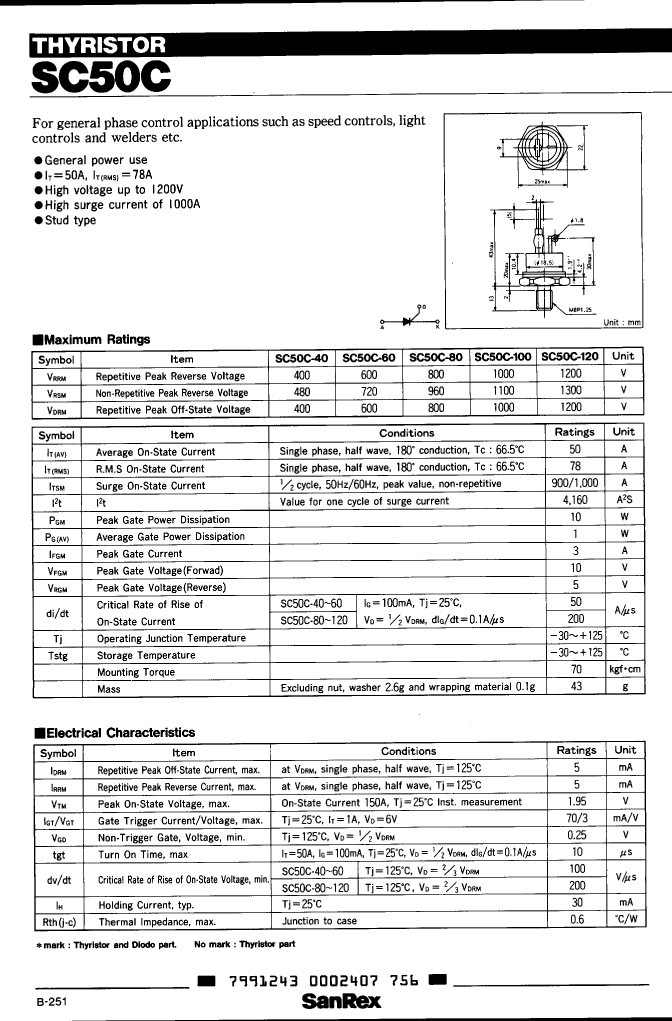

SC50C40 Overview

Silicon Controlled Rectifier, 50000mA I(T), 400V V(DRM)

Parameter Name	Attribute value
Maker	SanRex
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	70 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	30 mA
Maximum leakage current	5 mA
On-state non-repetitive peak current	900 A
Maximum on-state voltage	1.9 V
Maximum on-state current	50000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Off-state repetitive peak voltage	400 V
surface mount	NO
Trigger device type	SCR

	SC50C40	SC50C80	SC50C60
Description	Silicon Controlled Rectifier, 50000mA I(T), 400V V(DRM)	Silicon Controlled Rectifier, 50000mA I(T), 800V V(DRM)	Silicon Controlled Rectifier, 50000mA I(T), 600V V(DRM)
Maker	SanRex	SanRex	SanRex
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	100 V/us	200 V/us	100 V/us
Maximum DC gate trigger current	70 mA	70 mA	70 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V
Maximum holding current	30 mA	30 mA	30 mA
Maximum leakage current	5 mA	5 mA	5 mA
On-state non-repetitive peak current	900 A	900 A	900 A
Maximum on-state voltage	1.9 V	1.9 V	1.9 V
Maximum on-state current	50000 A	50000 A	50000 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Off-state repetitive peak voltage	400 V	800 V	600 V
surface mount	NO	NO	NO
Trigger device type	SCR	SCR	SCR
