C50EX500 datasheet, PDF - EEWORLD Datasheet

C50EX500: DescriptionSilicon Controlled Rectifier, 95000mA I(T), 500V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size84KB，2 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

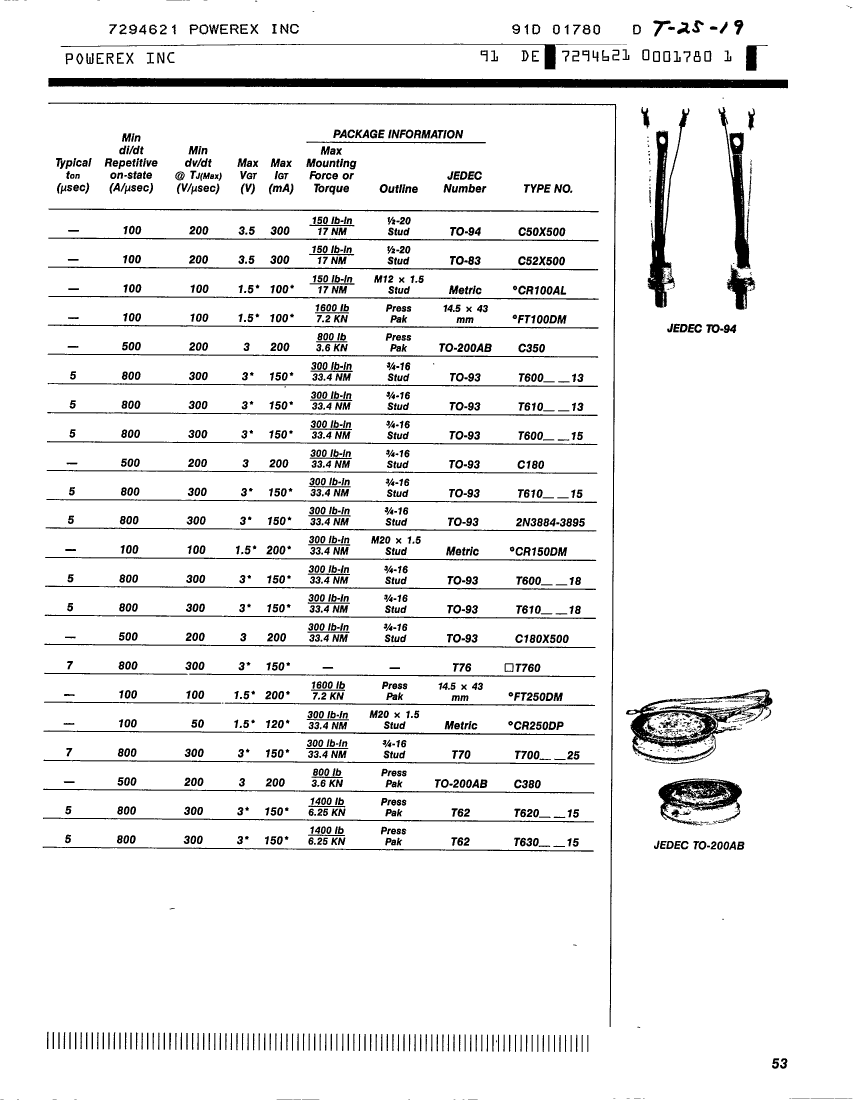

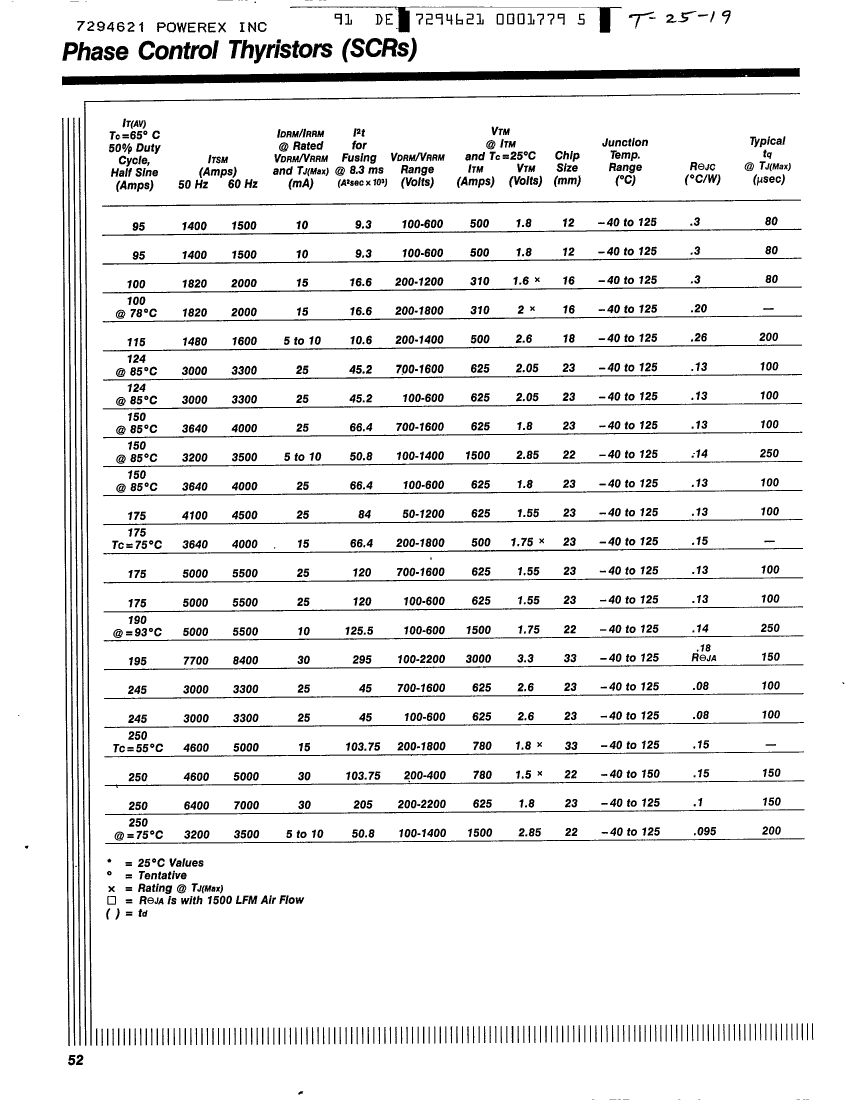

C50EX500 Overview

Silicon Controlled Rectifier, 95000mA I(T), 500V V(DRM),

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	80 µs
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3.5 V
Maximum holding current	100 mA
Maximum leakage current	10 mA
On-state non-repetitive peak current	1500 A
Maximum on-state current	95000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Trigger device type	SCR

	C50EX500	C52EX500	C50BX500	C50DX500	C50AX500	C50CX500	C50MX500
Description	Silicon Controlled Rectifier, 95000mA I(T), 500V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 500V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 200V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 100V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 300V V(DRM),	Silicon Controlled Rectifier, 95000mA I(T), 600V V(DRM)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	80 µs	80 µs	80 µs	80 µs	80 µs	80 µs	80 µs
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA
Maximum DC gate trigger voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Maximum leakage current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
On-state non-repetitive peak current	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A
Maximum on-state current	95000 A	95000 A	95000 A	95000 A	95000 A	95000 A	95000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	500 V	500 V	200 V	400 V	100 V	300 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	POWEREX	POWEREX	-	-	POWEREX	POWEREX	POWEREX
Maximum holding current	100 mA	-	100 mA	100 mA	100 mA	100 mA	100 mA
