KA25U datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> KA25U

Preview

KA25U: DescriptionWire Terminal; CategoryThe connector terminals; File Size171KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

KA25U Overview

Wire Terminal

KA25U Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	KA-U
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	0 AWG

Preview

Download Datasheet

View All

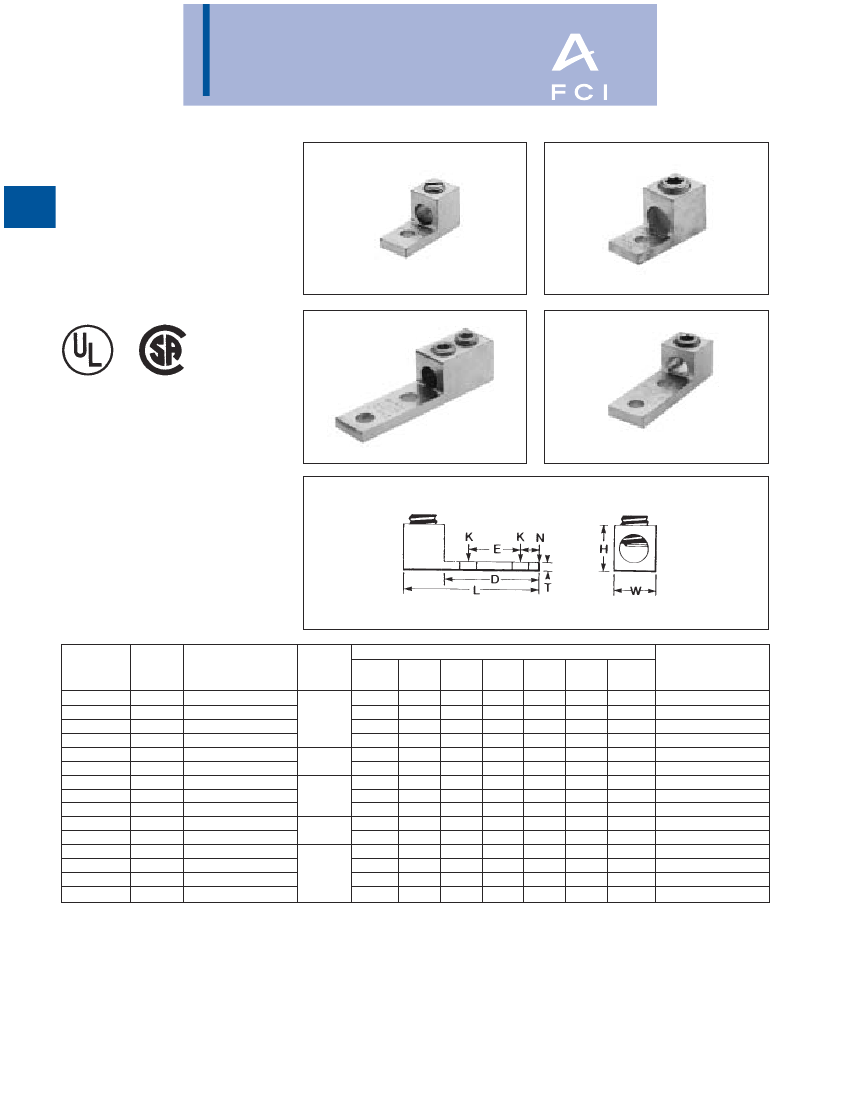

BURNDY

Mechanical

TYPES KA-U, KKA-U

UNIVERSAL TERMINAL

A-24

(One Conductor) For Aluminum

and Copper Conductors

These dual-rated one-conductor lugs are

constructed from high strength aluminum

alloy and electro tin-plated to provide low

contact resistance.

Fig. 1

Fig. 2

AL9CU

Fig. 3

Fig. 4

CATALOG

NUMBER*

KA6U

KA2U

KA25U

KA26U

KA29U

KA30U

KA31U

KA34U

KA36U

KA40U

KA44U

KKA31U-2N

KA36U-2N

KA40U-2N

KA44U-2N

FIG.

NO.

1

2

3

4

WIRE RANGE

ALUMINUM OR

COPPER

14 STR. - 6 STR.

14 STR. - 2 STR.

14 STR. - 1/0 STR.

6 STR. - 2/0 STR.

6 STR. - 250

6 STR. - 300

6 STR. - 350

4 STR. - 500

2 STR. - 600

300 - 800

500 - 1000

6 STR. - 350

2 STR. - 600

300 - 800

500 - 1000

STUD

HOLE

SIZE

1/4

D

.63

.81

.94

1.03

1.50

1.72

1.69

3.16

3.22

3.03

L

1.06

1.16

1.50

1.47

2.00

2.25

2.81

3.19

3.38

5.50

4.69

4.75

DIMENSIONS

**

N

W

E

.25

.31

.44

.47

.50

.88

.78

.88

.63

.50

.63

1.00

1.13

1.51

1.50

1.75

1.25

1.50

1.75

—

1.75

T

.09

.10

.19

.25

.31

.44

.50

.38

.44

.50

**

H

.50

.55

.80

1.13

1.12

1.25

1.58

1.56

1.94

1.50

1.57

1.94

RECOMMENDED

TIGHTENING

▲

TORQUE in-lb

45

50

120

275

375

500

600

375

500

600

5/16

3/8

1/2

* "N" indicates NEMA standard stud holes.

▲

Listed torque values are for maximum conductor sizes

accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for

smaller conductor sizes.

** Maximum dimension.

KA25U Related Products

	KA25U	KA44U	KA40U	KA40U-2N	KA36U-2N	KA26U	KKA31U-2N	KA44U-2N	KA34U
Description	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	KA-U	KA-U	KA-U	KA-U	KA-U	KA-U	KKA-U	KA-U	KA-U
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL
Wire gauge	0 AWG	1000 AWG	800 AWG	800 AWG	600 AWG	0 AWG	350 AWG	1000 AWG	500 AWG
Base Number Matches	-	1	1	1	1	1	1	-	-

Recommended Resources

Monostable circuit diagram

FM-AM tuning circuit

Practical voice-controlled music lantern (2)

Charger circuit diagram that automatically stops charging

Carrier frequency operated relay

Interface circuit between ICL7109 and microcontroller
