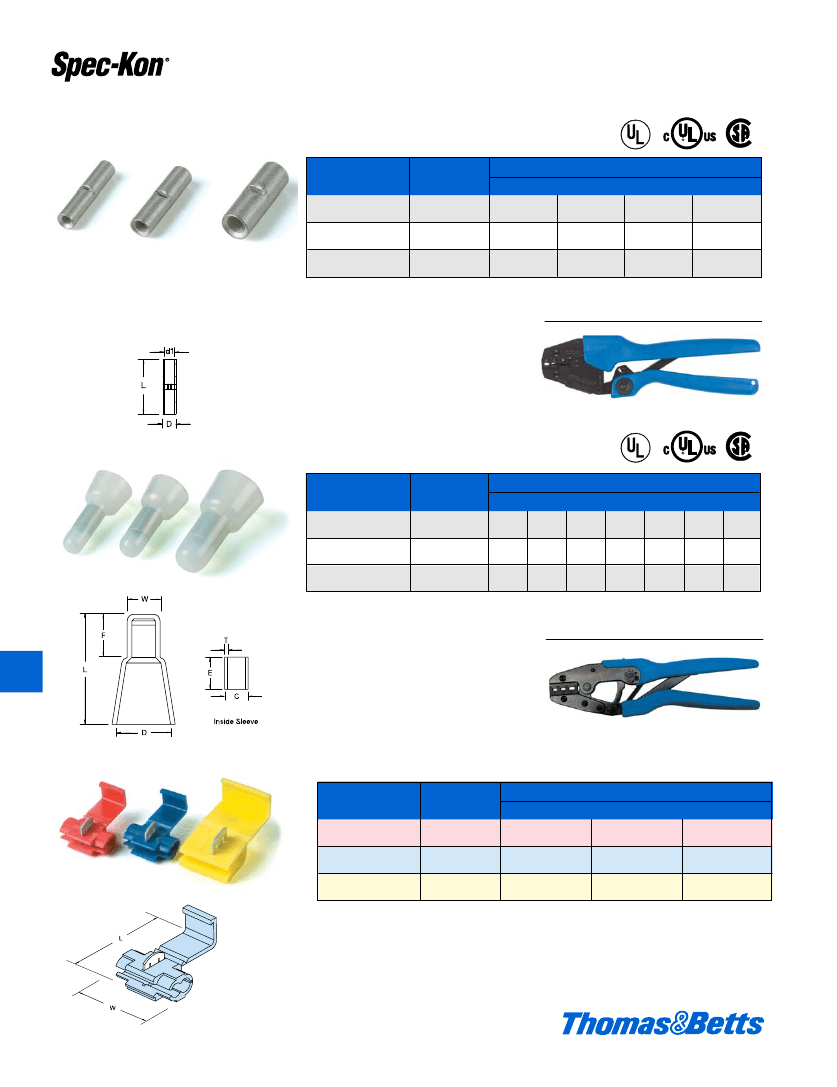

Splices, Wire Joints, and Quick Splices
®
Non-Insulated Butt Splice
Catalog
Number
K18-BS-M
K14-BS-M
®
Wire
Range
22-16 A.W.G.
0.5-1.5 mm
2
Dimension
inch
mm
L
.591
15.0
.591
15.0
.591
15.0
D
.130
3.3
.154
3.9
.213
5.4
d1
.067
1.7
.091
2.3
.134
3.4
T
.031
0.8
.031
0.8
.039
1.0
16-14 A.W.G.
1.5-2.5 mm
2
• Chamfered Barrel Entry
• Seamless Barrel Construction
• Wire Stop
K10-BS-M
Box Quantity: (M)=1000
UL File #E9809
CSA File #LR4503
12-10 A.W.G.
4-6 mm
2
Tool used with Non-Insulated
Butt Splice
See pages in back of catalog for complete tool
information.
Tool and Die Selection Chart on page M42.
Terminal Material:
Copper Tubular
ERG2002
®
Nylon Insulated Wire Joint
Catalog
Number
KN18-WJ-M
KN14-WJ-M
KN10-WJ-D
®
Wire
Range
22-16 A.W.G.
1.25 mm
2
Dimension
inch
mm
W
.209
5.3
.236
6.0
.299
7.6
F
.315
8.0
.354
9.0
.394
10.0
L
.827
21.0
.827
21.0
1.004
25.5
D
.386
9.8
.394
10.0
.492
12.5
E
.276
7.0
.276
7.0
.295
7.5
T
.020
0.5
.020
0.5
.028
0.7
C
.091
2.3
.122
3.1
.157
4.0
16-14 A.W.G.
2 mm
2
12-10 A.W.G.
5.5 mm
2
Box Quantity: (W)=250; (D)=500; (M)=1000
UL File #E66716
CSA File #LR4503
See pages in back of catalog for complete tool
information.
Tool and Die Selection Chart on page M42.
Tool used with Nylon
Insulated Wire Joint
M
®
Spec-Kon
Maximum Electrical Rating:
105˚C 300 Volts Max.
Terminal Material:
Copper Tube
ERG2500WJ
Vinyl Insulated Quick Splice
Catalog
Number
KV14-OOQS-D
KV18-OOQS-D
KV10-OOQS*
Wire
Range
22-18 A.W.G.
0.5-1.0 mm
2
Dimension
inch
mm
W
.787
20.0
.787
20.0
.807
20.5
L
1.063
27.0
1.063
27.0
1.358
34.5
Color
red
blue
yellow
18-14 A.W.G.
.75-2.5 mm
2
12-10 A.W.G.
4-6 mm
2
Box Quantity: (W)=250; (D)=500; (M)=1000
* 200 piece quantity only.
See pages in back of catalog for complete tool information.
Tool and Die Selection Chart on page M42.
Maximum Electrical Rating:
105˚C 600 Volts Max.
Terminal Material:
Brass
