MC74AC05DR2 datasheet, PDF - EEWORLD Datasheet

MC74AC05DR2: DescriptionIC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size145KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

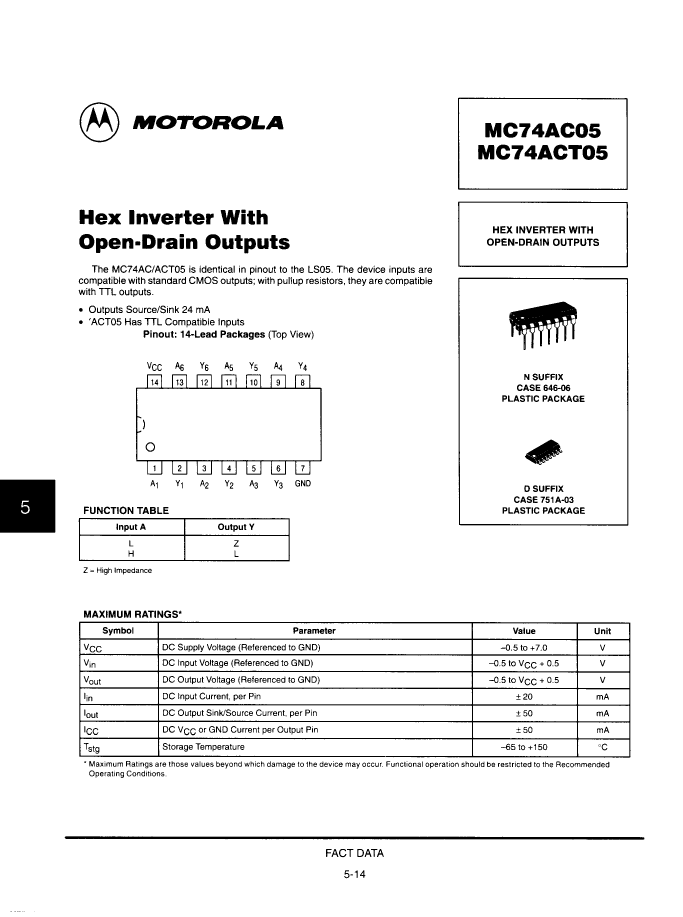

Download Datasheet Parametric Compare View All

MC74AC05DR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74AC05DR2	-	-	View	Buy Now

IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.012 A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	9 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

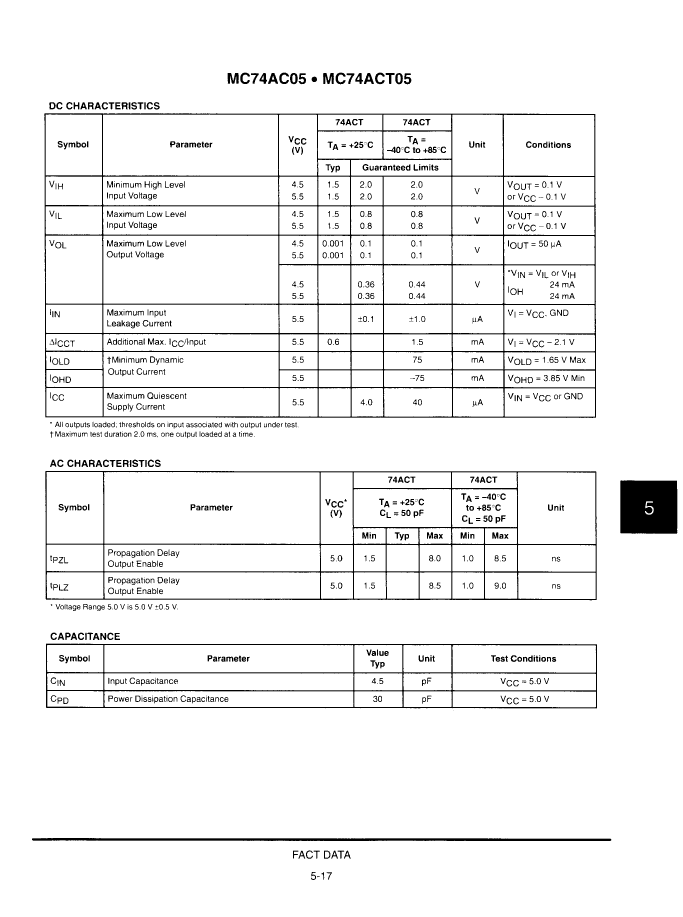

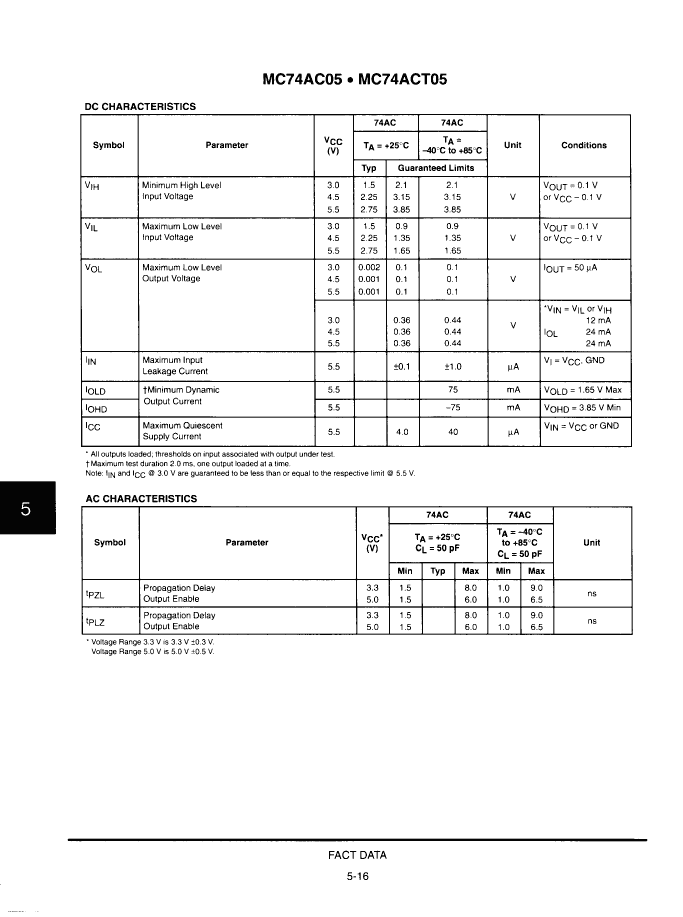

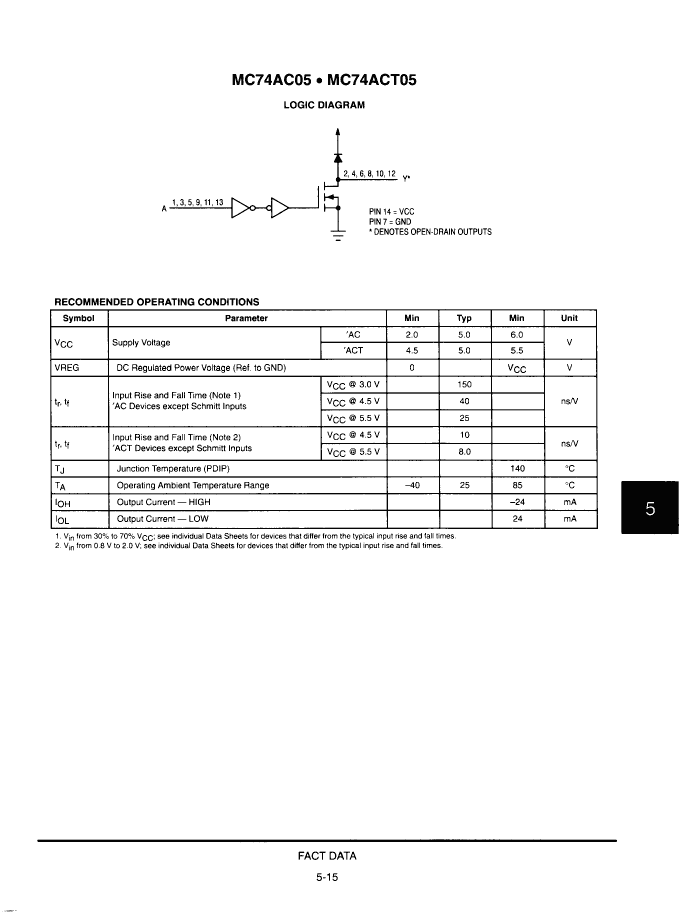

	MC74AC05DR2	MC74ACT05DR2	MC74AC05D
Description	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,ACT-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP
package instruction	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.012 A	0.024 A	0.012 A
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3/5 V	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
method of packing	TAPE AND REEL	TAPE AND REEL	-
