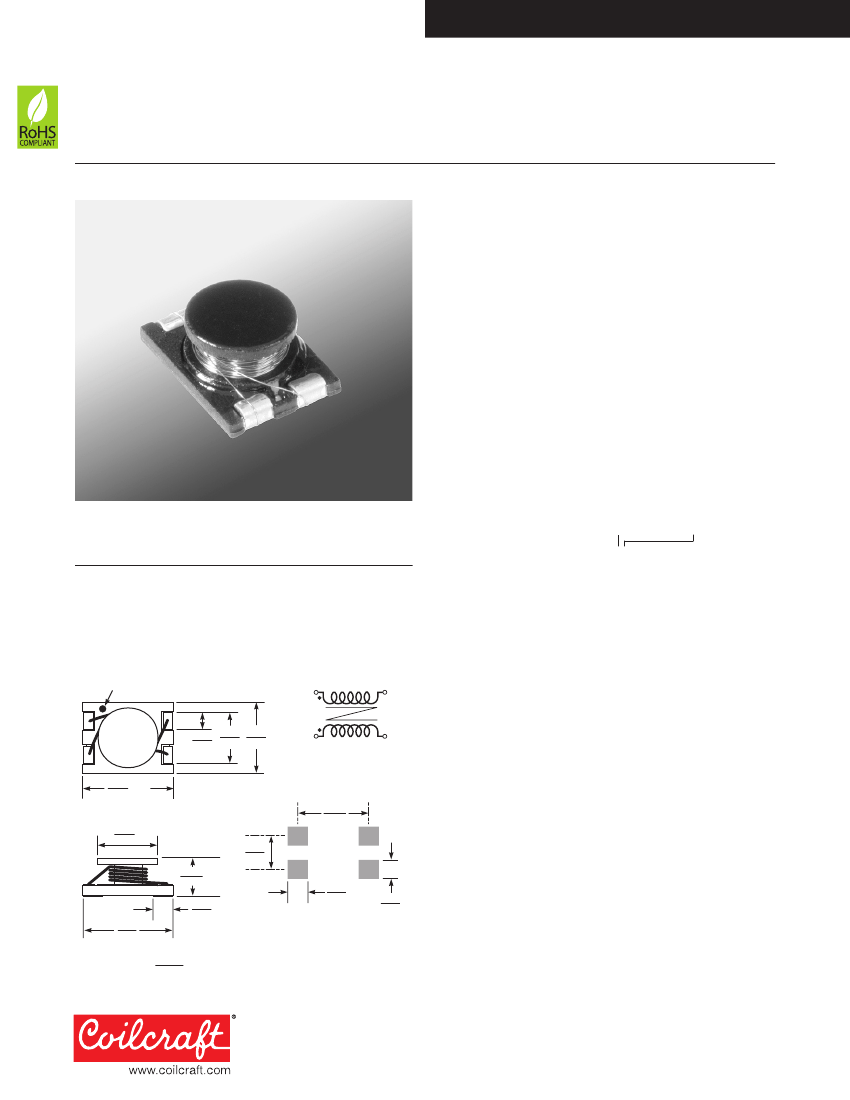

DW3316 Coupled Inductors for xDSL
• Coupled inductor optimized for xDSL filtering applications
• Can be used as a common mode choke, 1:1 transformer or
in SEPIC applications
Core material
Ferrite
Terminations
RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight
1.13 – 1.34 g
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750 per 13″ reel Plastic tape: 24 mm wide,
0.36 mm thick, 16 mm pocket spacing, 5.5 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part number
1
DW3316-155ML_
DW3316-275ML_
DW3316-335ML_
DW3316-395ML_
DW3316-475ML_
DW3316-685ML_
Color
dot
Inductance
2
DCR
±20%
max
(mH)
(Ohms)
1.5
10.8
2.7
18.0
3.3
20.0
3.9
23.0
4.7
26.0
6.8
42.0
1
SRF
3
typ
(MHz)
1.70
1.25
1.10
0.968
0.850
0.690
1. When ordering, please specify
termination
and
packaging
codes:
(mA)
300
230
180
160
160
150
4
Isat
4
1
4
0.100 0.290
0.400 max
2,54 7,37
10,16
2
3
2
3
Schematic
DW3316-685MLD
Termination: L
= Gold over nickel over phos bronze terminations
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
2. Inductance is per winding, tested at 10 kHz, 0.1 Vrms, 0 Adc using an
Agilent/HP 4263B LCR meter or equivalent.
3. SRF is measured using an Agilent/HP 8753D network analyzer.
4. DC current at which the inductance drops 10% (typ) from its value with-
out current.
5. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
0.515
max
13,08
0.395
10,03
0.330
dia
8,38
0.185
4,70
0.200 max
5,08
0.100
2,54
0.490
12,45
0.115
2,92
Dimensions are in
-123
0.110
2,79
Recommended
Land Pattern
inches
mm
US
