BD139-10: DescriptionPower Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size341KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

BD139-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD139-10	-	-	View	Buy Now

BD139-10 Overview

Power Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN

BD139-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SIP
package instruction	TO-126, 3 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	63
JEDEC-95 code	TO-126
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	12.5 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	190 MHz

Preview

Download Datasheet

View All

BD135

BD137

BD139

SILICON

NPN TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BD135, BD137,

and BD139 are silicon NPN epitaxial planar transistors

designed for audio amplifier and switching applications.

MARKING: FULL PART NUMBER

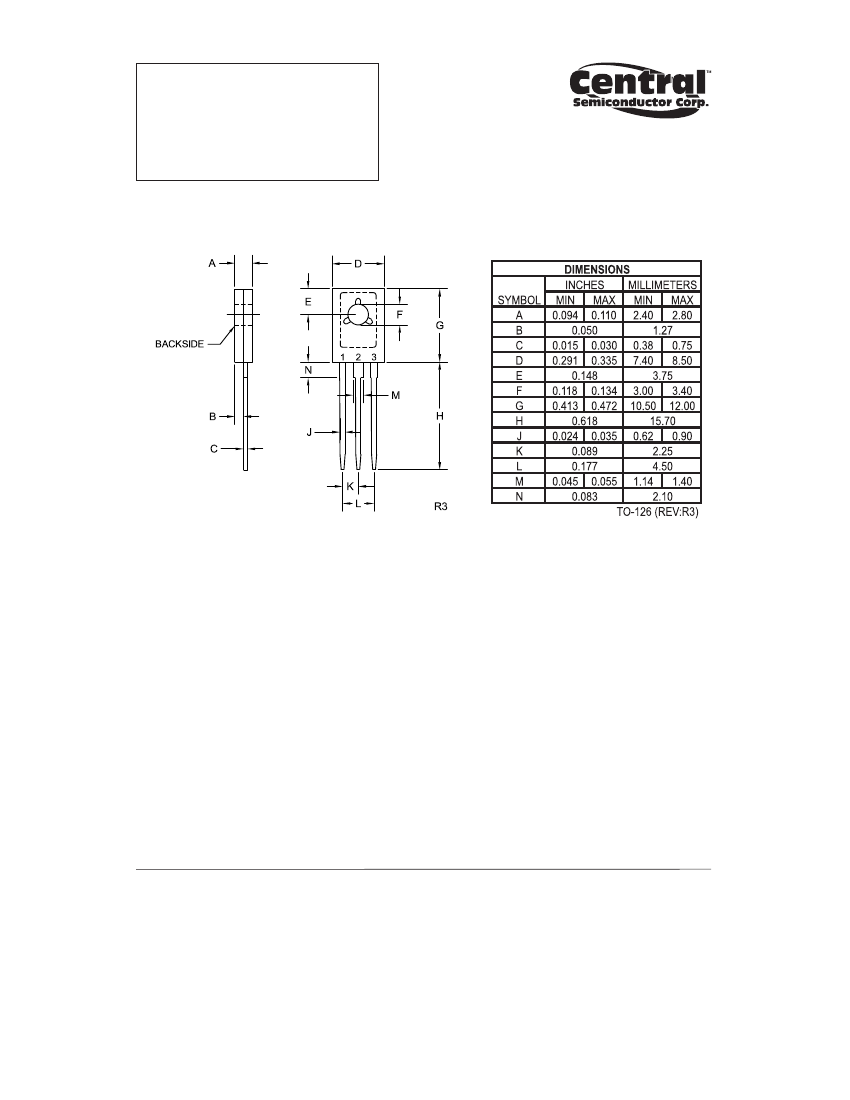

TO-126 CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL

Collector-Base Voltage

VCBO

Collector-Emitter Voltage

VCEO

Emitter-Base Voltage

VEBO

Continuous Collector Current

IC

Peak Collector Current

ICM

Continuous Base Current

IB

Peak Base Current

IBM

Power Dissipation (Tmb<70°C)

PD

Power Dissipation (TA=25°C)

PD

Operating and Storage Junction Temperature

TJ, Tstg

Thermal Resistance

Θ

Jmb

Thermal Resistance

Θ

JA

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCEO

VCE(SAT)

VBE(ON)

hFE

fT

BD135

45

BD137

BD139

60

100

60

80

5.0

1.5

2.0

0.5

1.0

8.0

1.25

-65 to +150

10

100

UNITS

V

A

W

°C

°C/W

CHARACTERISTICS:

(TC=25°C unless otherwise noted)

TEST CONDITIONS

MIN

TYP

VCB=30V

VCB=30V (TC=125°C)

VEB=5.0V

IC=30mA (BD135)

45

IC=30mA (BD137)

60

IC=30mA (BD139)

80

IC=500mA, IB=50mA

VCE=2.0V, IC=500mA

VCE=2.0V, IC=5.0mA

40

VCE=2.0V, IC=150mA

63

VCE=2.0V, IC=500mA

25

VCE=5.0V, IC=50mA, f=100MHz

190

BD135-10

BD137-10

BD139-10

MIN

MAX

63

160

MAX

100

10

100

0.5

1.0

250

UNITS

nA

μA

nA

V

MHz

SYMBOL

hFE

TEST CONDITIONS

VCE=2.0V, IC=500mA

BD135-16

BD137-16

BD139-16

MIN

MAX

100

250

R4 (13-March 2014)

BD139-10 Related Products

	BD139-10	BD135-10	BD137-10	BD139-16	BD135-16	403IXXCM	BD137-16	BD137LEADFREE	BD139LEADFREE
Description	Power Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Surface Mount Quartz Crystal	Power Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin, TO-126, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	conform to	conform to
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	-	-	-	Central Semiconductor	Central Semiconductor	Central Semiconductor
Parts packaging code	SIP	SIP	SIP	SIP	SIP	-	SIP	SIP	SIP
package instruction	TO-126, 3 PIN	TO-126, 3 PIN	TO-126, 3 PIN	TO-126, 3 PIN	TO-126, 3 PIN	-	TO-126, 3 PIN	TO-126, 3 PIN	TO-126, 3 PIN
Contacts	3	3	3	3	3	-	3	3	3
Reach Compliance Code	unknown	unknown	unknown	not_compliant	not_compliant	-	unknown	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	-	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	-	1.5 A	1.5 A	1.5 A
Collector-emitter maximum voltage	80 V	45 V	60 V	80 V	45 V	-	60 V	60 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	63	63	63	100	100	-	100	25	25
JEDEC-95 code	TO-126	TO-126	TO-126	TO-126	TO-126	-	TO-126	TO-126	TO-126
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	-	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e3	e3
Number of components	1	1	1	1	1	-	1	1	1
Number of terminals	3	3	3	3	3	-	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	-	150 °C	-	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	260	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	-	NPN	NPN	NPN
Maximum power dissipation(Abs)	12.5 W	12.5 W	12.5 W	12.5 W	12.5 W	-	12.5 W	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	MATTE TIN (315)	MATTE TIN (315)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	190 MHz	190 MHz	190 MHz	190 MHz	190 MHz	-	190 MHz	190 MHz	190 MHz
