FE115-20-BULK datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FE115-20-BULK

Preview

FE115-20-BULK: DescriptionParallel - Fundamental Quartz Crystal, 11.0592MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size476KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FE115-20-BULK Overview

Parallel - Fundamental Quartz Crystal, 11.0592MHz Nom, SMD, 2 PIN

FE115-20-BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Other features	BT-CUT; BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	11.0592 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.5XB5.0XH1.7 (mm)/L0.295XB0.197XH0.067 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

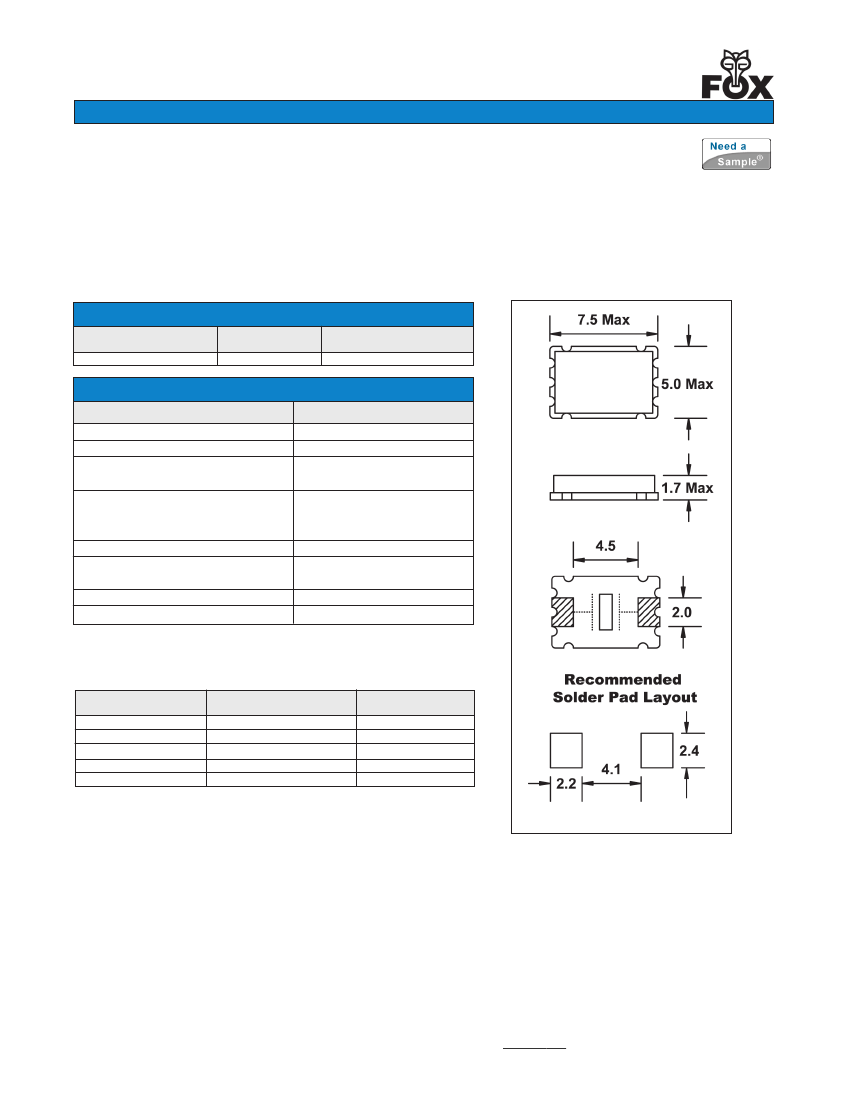

Ceramic Resin Sealed SMD Crystal

Page 1 of 2

Model: FE

RoHS Compliant / Pb Free

http://www.foxonline.com/need_a_sample.htm

Rev. 5/5/2014

FEATURES

•

• Tolerances to < 20 PPM

Low Cost

• Stabilities to < 15 PPM

High Frequency Range

Fundamental to 50 MHz (BT Cut)• Temperatures to -40ºC ~ +85ºC

• 1.4mm Height Max

Resin Sealed

Tape and Reel (2,000 pcs. STD) • 2 Additional Footprints (FH, FL)

OPTIONS

• PART NUMBER

Part Number

219-Frequency-xxxxx

Model Number

FE

Frequency Range (MHz)

6.000 ~ 160.000

• STANDARD SPECIFICATIONS

1

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating

(T

OPR

)

Storage

(T

STG

)

Shunt Capacitance

(Co)

Load Capacitance

(C

L

)

Drive Level

Aging per year

1

MAX

(unless otherwise noted)

6.000 ~ 160.000 MHz

±50 PPM

±50PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

±5 PPM

Other stabilities & operating temperature ranges available. Consult Fox Customer Service for

specific requirements.

All specifications subject to change without notice.

Frequency Range

(MHz)

6.000 ~ 8.000

8.000+ ~ 16.000

16.000+ ~ 50.000

28.000 ~ 84.000

84.000+ ~ 160.000

Operating Mode

Fundamental

3rd OT

5th OT

Max ESR

Ω

80

60

40

60

80

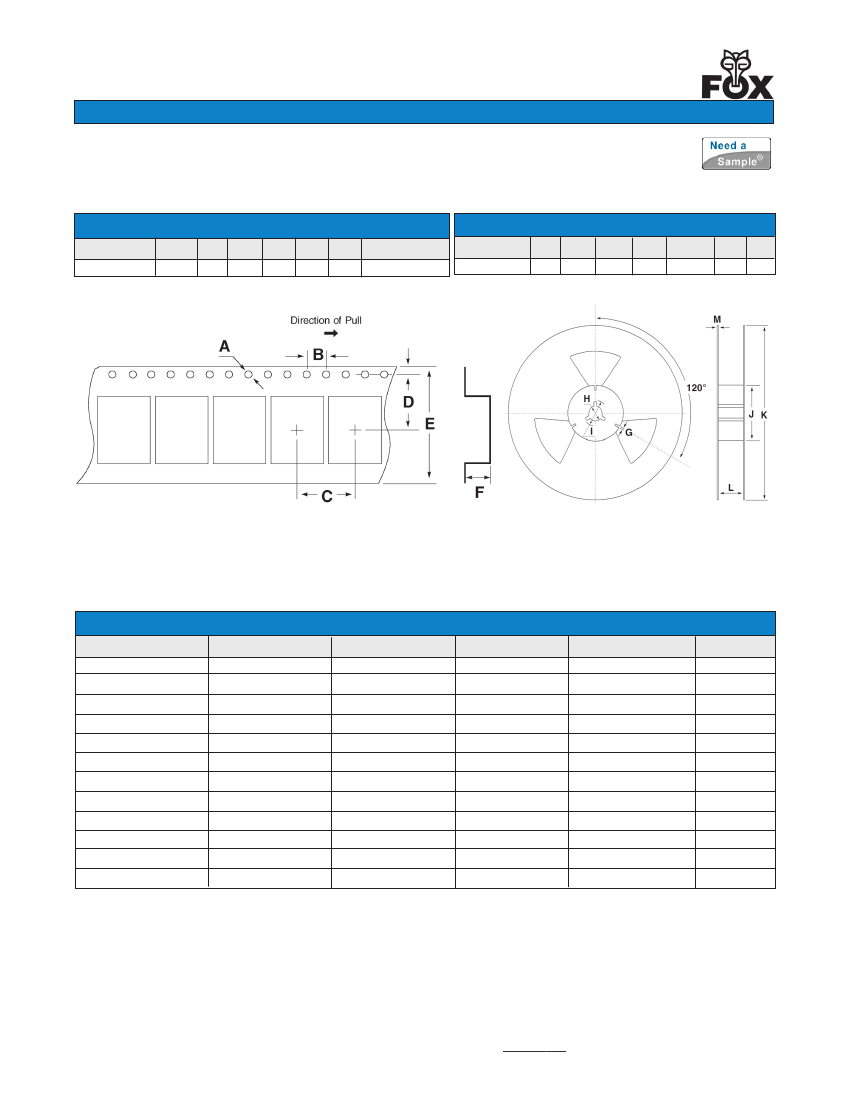

All dimensions are in millimeters.

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554
