824-M0286R: DescriptionDatacom Transformer, 10/100 BASE-T; AUTOMDIX; ETHERNET Application(s), 1CT:1CT; 1CT:1CT, SO016G, ROHS COMPLIANT; CategoryPower management transformer; File Size106KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0286R Overview

Datacom Transformer, 10/100 BASE-T; AUTOMDIX; ETHERNET Application(s), 1CT:1CT; 1CT:1CT, SO016G, ROHS COMPLIANT

824-M0286R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SO016G, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX; ETHERNET
Insulation voltage	1500 V
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	D12.79.4XH6.22 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:1CT

Preview

Download Datasheet

View All

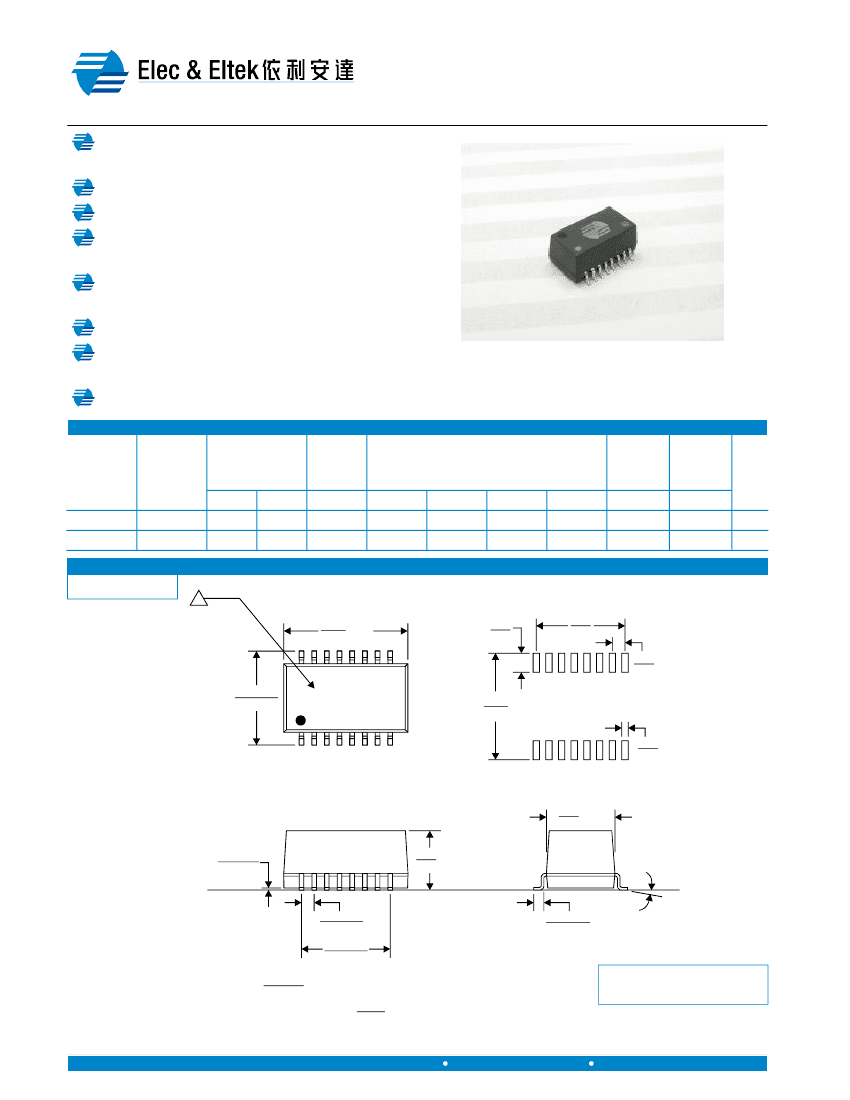

E & E Magnetic Products Limited

10/100 Base-T Single Port

Magnetic Module

Design For Power over Ethernet (PoE) Applications

S

CHEMATICS

Compliant with IEEE802.3af standard including

350uH OCL with 8mA DC bias

Designed for IP phone and IP switch applications

350mA balanced DC line current capability

Design to withstand IR-reflow with peak

temperature per IPC/JEDEC J-STD-020C

Compact footprint for use in the most space-restrictive

applications

Operating temperature 0°C to +70°C.

Symmetrical TX and RX channels suitable for Auto

MDI/MDIX applications

RoHS compliant version is available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Turns Ratio

Insertion

Loss

(dB Max)

.1-100MHz 1-30MHz

1.2

16.0

Return Loss

(dB Min)

40MHz

14.0

50MHz

13.0

CMRR

(dB Min)

Crosstalk

(dB Min)

Hipot

(Vrms)

Tx

Rx

60-80MHz .1-100MHz .1-100MHz

12.0

33.0

-

33.0

35.0

1500

824-M0145 824-M0145R 1CT:1CT 1CT:1CT

-

824-M0286R 1CT:1CT 1CT:1CT

M

ECHANICAL

D

IMENSIONS

Package: SO016G

3

.500

MAX

12.70

.075

1.91

.350

8.89

.050

1.27

.370 ±.010

9.40 ±0.25

EE

4x0xxx

(DATE)

.420

10.67

.025

0.64

Recommended

Pad Layout

.280

MAX

7.11

.005-.020

0.13-0.51

.245

6.22 MAX

0-8°

REFERENCE OR

GAUGE PLANE

.050 ±.005

1.27 ±0.13

.035 ±.010

0.89 ±0.25

Notes:

.350 ±.010

8.89 ±0.25

Weight (in gram)

inches

1. All dimensions are specified in mm with higher precedence in inches.

Tape & Reel

.010 .

2. Unless otherwise specified, all tolerances are ±

0.25

3. For available RoHS part number, the part will be marked with “4M0xxxR”, instead of “4M0xxx”.

:

1.1 typ.

600 / reel

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH304(07)

Revised in 06/07

824-M0286R Related Products
