824-M0326 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> 824-M0326

Preview

824-M0326: DescriptionDatacom Transformer, 1000 BASE-T; ETHERNET Application(s), SO048C; CategoryPower management transformer; File Size138KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

824-M0326 Overview

Datacom Transformer, 1000 BASE-T; ETHERNET Application(s), SO048C

824-M0326 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Elec & Eltek
package instruction	SO048C
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	1000 BASE-T; ETHERNET
high	6.99 mm
Insulation voltage	1500 V
length	27.94 mm
Manufacturer's serial number	824-M0326
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	27.94mm X 15.24mm X 6.99mm
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
width	15.24 mm

Preview

Download Datasheet

View All

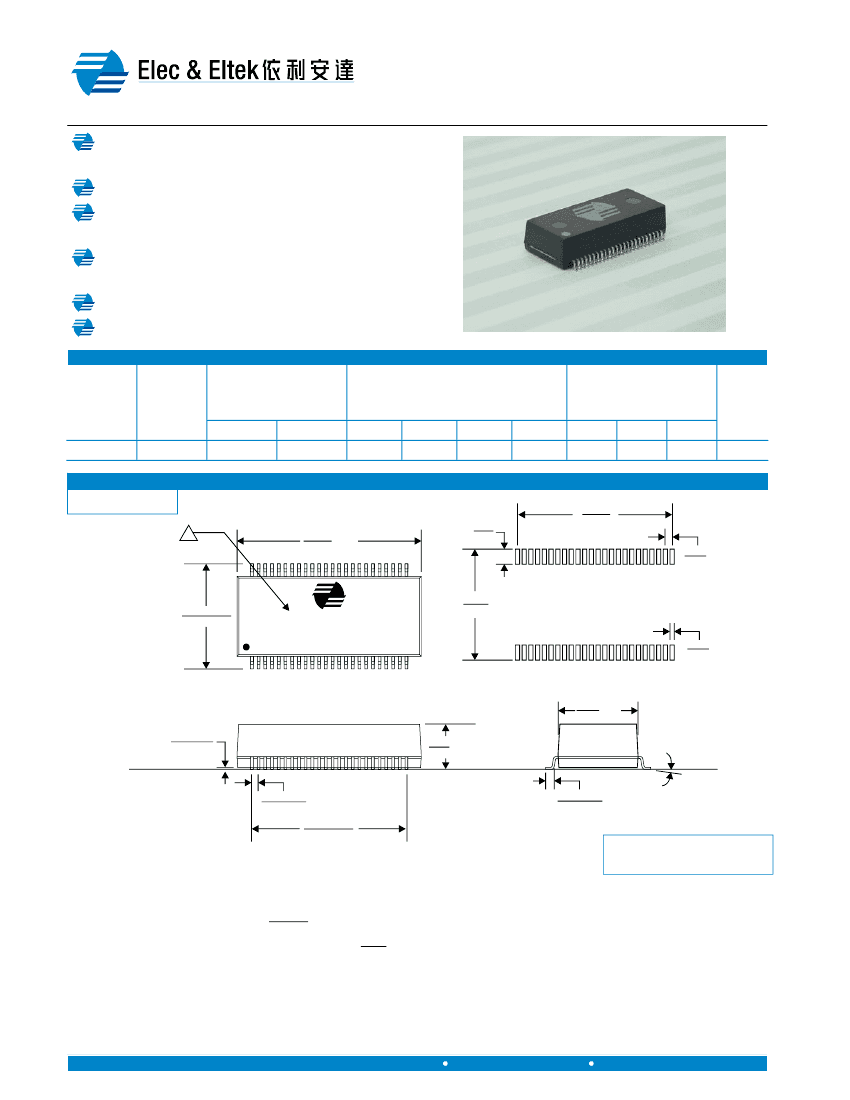

E & E Magnetic Products Limited

1000 Base-T Dual Port

Magnetic Module

Design for Power over Ethernet (PoE) Applications

S

CHEMATICS

Compliant with IEEE802.3af standard including

350uH OCL with 8mA DC bias

350mA balanced DC line current capability

Support 4 pairs of Category 5 UTP cable with

1000Base-T full duplex applications

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C.

RoHS compliant version is available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

1.1

Insertion

Loss

(dB Max)

.1-100MHz 100-125MHz

824-M0326 824-M0326R

2.0

30MHz

18.0

Return Loss

(dB Min)

60MHz

12.0

80MHz

12.0

100MHz

10.0

30MHz

43.0

Crosstalk

(dB Min)

60MHz

37.0

100MHz

33.0

1500

Hipot

(Vrms)

M

ECHANICAL

D

IMENSIONS

Package: SO048C

3

1.100 MAX

27.94

.075

1.91

.920

23.37

.040

1.02

.600±.010

15.24 ±0.25

824-M0326

(DATE) (COUNTRY)

.635

16.13

.025

0.64

Recommended

Pad Layout

.480

MAX

12.19

.005-.015

0.13-0.38

.275 MAX

6.99

REFERENCE OR

GAUGE PLANE

.040±.005

1.02±0.13

.920±.010

23.37±0.25

.035±.010

0.89±0.25

0-8°

Weight (in gram)

Tape & Reel

:

4.6 typ.

300 / reel

Notes:

1. All dimensions are specified in inches with higher precedence in inches.

mm

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For available RoHS part number, the part will be marked with “824-M0326R”, instead of “824-M0326”.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH402(01)

Revised in 06/07

824-M0326 Related Products

	824-M0326	824-M0326R
Description	Datacom Transformer, 1000 BASE-T; ETHERNET Application(s), SO048C	Datacom Transformer, 1000 BASE-T; ETHERNET Application(s), SO048C, ROHS COMPLIANT
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Elec & Eltek	Elec & Eltek
package instruction	SO048C	SO048C, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	1000 BASE-T; ETHERNET	1000 BASE-T; ETHERNET
high	6.99 mm	6.99 mm
Insulation voltage	1500 V	1500 V
length	27.94 mm	27.94 mm
Manufacturer's serial number	824-M0326	824-M0326
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2
Maximum operating temperature	70 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL
physical size	27.94mm X 15.24mm X 6.99mm	27.94mm X 15.24mm X 6.99mm
Primary inductance	350 µH	350 µH
surface mount	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER
width	15.24 mm	15.24 mm
