CY7C474-15LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C474-15LC

CY7C474-15LC: DescriptionFIFO, 32KX9, 15ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32; Categorystorage storage; File Size284KB，11 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C474-15LC Overview

FIFO, 32KX9, 15ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32

CY7C474-15LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QFJ
package instruction	CERAMIC, LCC-32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	15 ns
Other features	RETRANSMIT
Maximum clock frequency (fCLK)	33.3 MHz
period time	30 ns
JESD-30 code	R-CQCC-N32
JESD-609 code	e0
length	13.97 mm
memory density	294912 bit
Memory IC Type	OTHER FIFO
memory width	9
Number of functions	1
Number of terminals	32
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX9
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum standby current	0.02 A
Maximum slew rate	0.16 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm

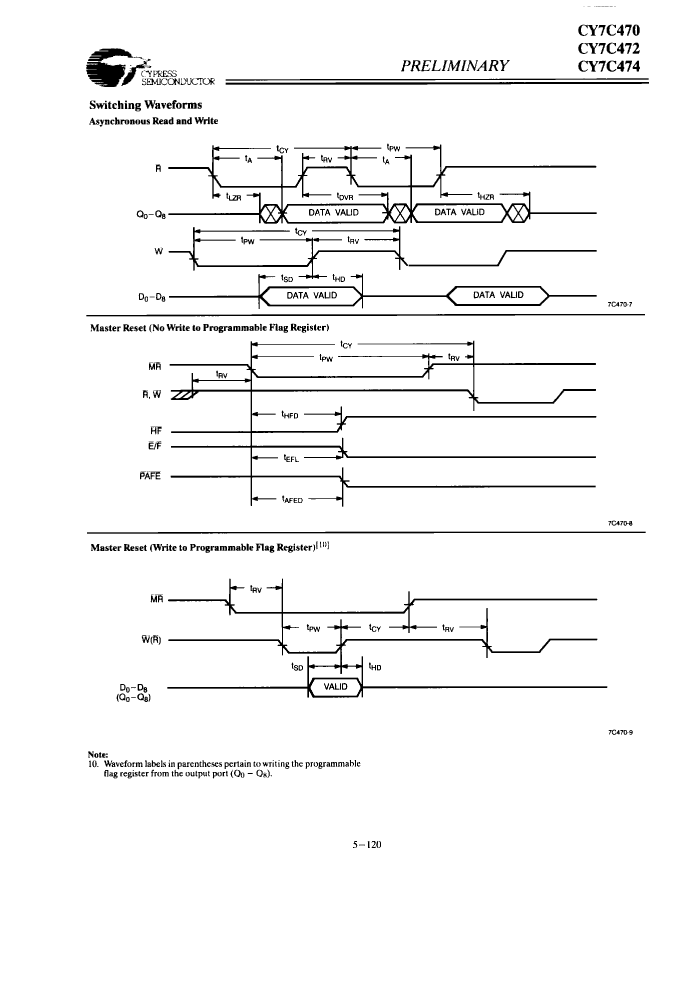

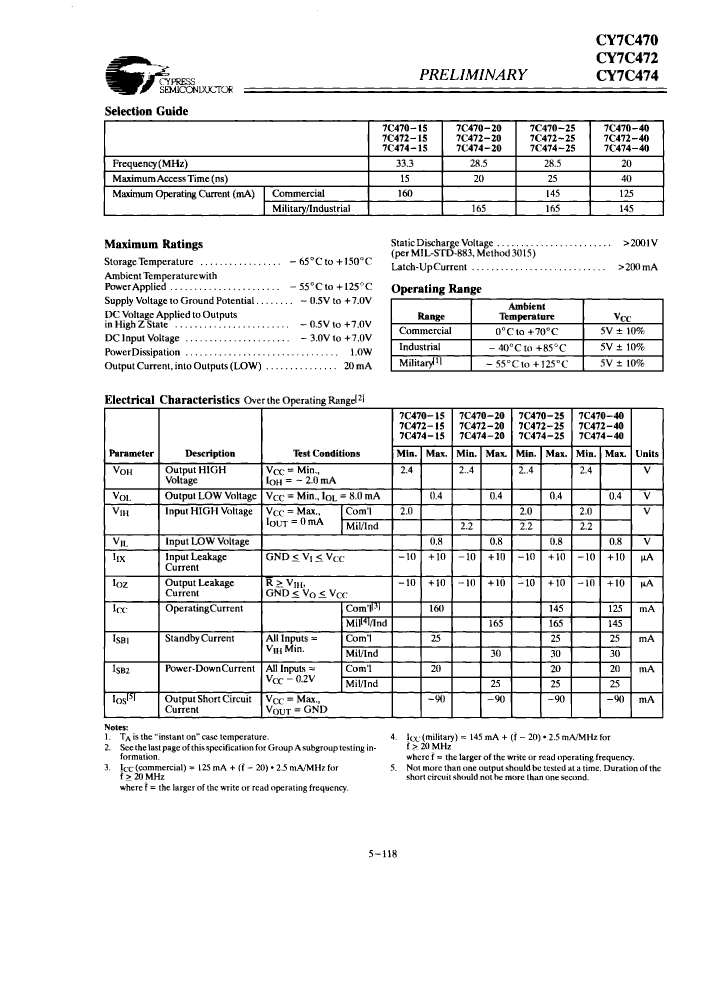

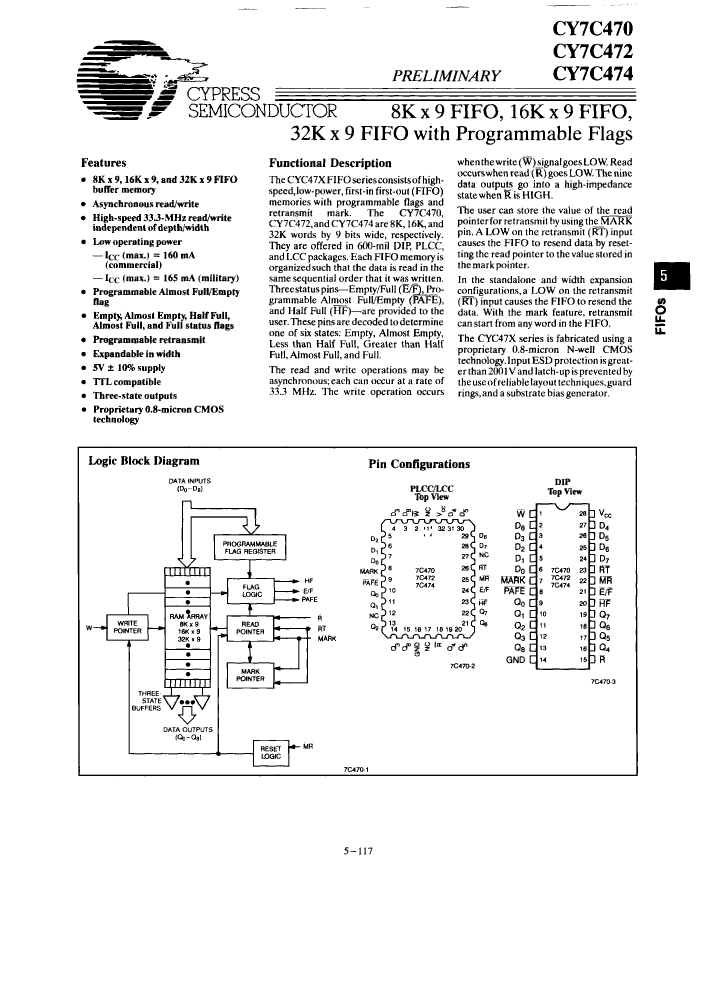

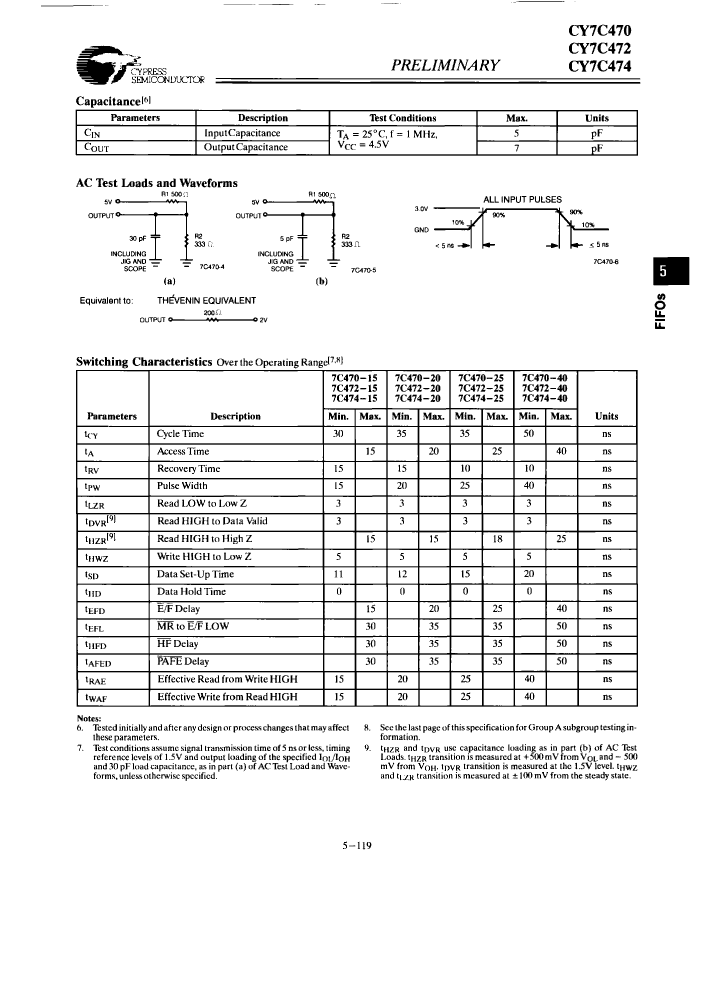

Preview

Download Datasheet

View All

CY7C474-15LC Related Products

	CY7C474-15LC	CY7C470-40LC	CY7C472-25LC	CY7C472-15LC	CY7C472-40LC	CY7C470-15LC	CY7C474-25LC	CY7C474-40LC	CY7C470-25LC
Description	FIFO, 32KX9, 15ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 8KX9, 40ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 16KX9, 25ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 16KX9, 15ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 16KX9, 40ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 8KX9, 15ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 32KX9, 25ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 32KX9, 40ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32	FIFO, 8KX9, 25ns, Asynchronous, CMOS, CQCC32, CERAMIC, LCC-32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ
package instruction	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32	CERAMIC, LCC-32
Contacts	32	32	32	32	32	32	32	32	32
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	15 ns	40 ns	25 ns	15 ns	40 ns	15 ns	25 ns	40 ns	25 ns
Other features	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT
Maximum clock frequency (fCLK)	33.3 MHz	20 MHz	28.5 MHz	33.3 MHz	20 MHz	33.5 MHz	28.5 MHz	20 MHz	28.5 MHz
period time	30 ns	50 ns	35 ns	30 ns	50 ns	30 ns	35 ns	50 ns	35 ns
JESD-30 code	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm
memory density	294912 bit	73728 bit	147456 bit	147456 bit	147456 bit	73728 bit	294912 bit	294912 bit	73728 bit
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	9	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32	32
word count	32768 words	8192 words	16384 words	16384 words	16384 words	8192 words	32768 words	32768 words	8192 words
character code	32000	8000	16000	16000	16000	8000	32000	32000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX9	8KX9	16KX9	16KX9	16KX9	8KX9	32KX9	32KX9	8KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Maximum standby current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum slew rate	0.16 mA	0.125 mA	0.145 mA	0.16 mA	0.125 mA	0.16 mA	0.145 mA	0.125 mA	0.145 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm
Maker	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
