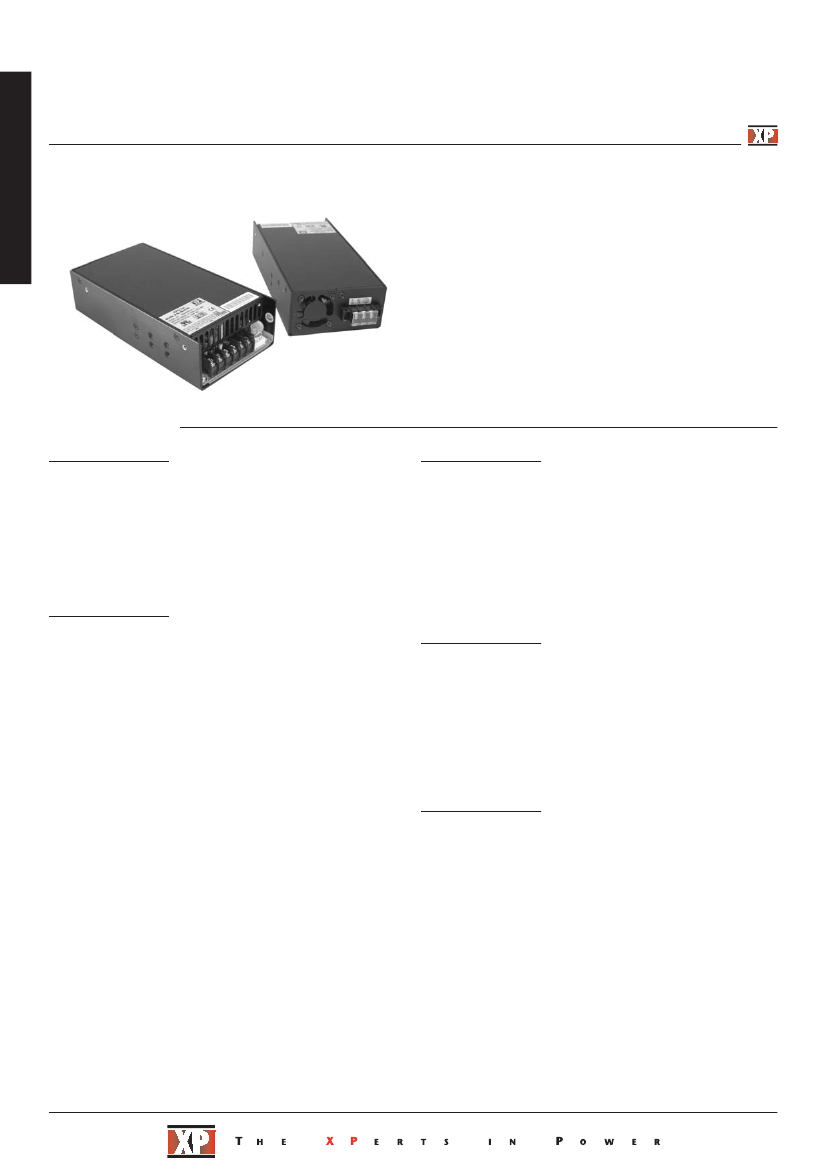

AC-DC
300/400 Watts
SMQ Series
•
•
•
•
•
•
•
High Power Density
High Peak Load Rating
DC OK
Remote On/Off
Universal Input
xppower.com
Single Outputs from 12.0 V to 54.0 V
Internal Fan
Specification
Input
Input Voltage
Input Frequency
Input Current
• 90-264 VAC (120-370 VDC)
• 47-63 Hz
• 5.00 A at 90 VAC (SMQ300),
6.35 A at 90 VAC (SMQ400)
Inrush Current
• 35 A max at 230 VAC
Power Factor
• 0.99 typical
Earth Leakage Current
• <2.5 mA at 230 VAC/50Hz
<1.5 mA at 115 VAC/60Hz
General
Efficiency
Isolation
• 80% typical
• 3000 VAC Input to Output,
1500 VAC Input to Ground,
250 VDC Output to Ground
• 60 kHz typical for PFC stage,
30 kHz typical for main converter
• 4.7 W/In
3
(SMQ300), 6.25 W/In
3
(SMQ400)
• DC OK, TTL HIGH within 100-500 ms
LOW 1 ms before loss of regulation
• 138 kHrs per MIL-HDBK-217F
Switching Frequency
Power Density
Signals
MTBF
Output
Output Voltage
Output Voltage Trim
Minimum Load
Start Up Delay
Hold Up Time
Line Regulation
Load Regulation
Transient Response
•
•
•
•
•
•
•
•
12 to 54 VDC - see table
See table
No minimum load required
2.5 s typical at 120 VAC
20 ms minimum at 120 VAC & 80% load
±1%
±1%
5% max. deviation, recovery to within
1% in 500 µs for a 50% load change
1% pk-pk, 20 MHz BW
115-130% Vnom, recycle input to reset
120-150% of nominal current,
auto recovery
Unit shuts down, auto recovery
Environmental
Operating Temperature
• 0 ˚C to +70 ˚C, derate linearly from
100% at +50 ˚C to 50% at +70 ˚C
• Via internal fan
Cooling
Operating Humidity
• 5-90% RH, non-condensing
Storage Temperature
• -20 ˚C to +85 ˚C
Shock
• 15 g (non-operation), 11 ms half
sine-wave, 3 times for each axis
Vibration
• 10 Hz - 55 Hz (non-operation) 2 g,
sweep time 3 mins, 60 mins/axis
Ripple & Noise
•
Overvoltage Protection
•
Overcurrent Protection
•
Overtemperature
Protection
Remote Sense
Remote On/Off
•
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Dips & Interruptions
Safety Approvals
• EN55022 and FCC Part 15,
level B conducted
• EN61000-3-2
• EN61000-3-3
• EN61000-4-2, level 2 contact, level 3 air,
Perf Criteria A
• EN61000-4-3, 3 V/m, Perf Criteria A
• EN61000-4-4, level 2, Perf Criteria A
• EN61000-4-5, level 3, Perf Criteria A
• EN61000-4-6, level 2, Perf Criteria A
• EN61000-4-11, 30% 10 ms, 60% 100 ms,
100% 5000 ms Perf Criteria A, B, B
• UL60950, CSA C22.2 No.60950,
EN60950, CE Mark LVD
• Compensates for up to 0.5 V drop
• On = TTL Logic High or Open circuit
Off = TTL Logic Low or Short circuit
AC-DC
Models and Ratings
Maximum
Power
Output Voltage
(1)
Preset
12 V
15 V
18 V
24 V
27 V
36 V
48 V
54 V
12 V
15 V
18 V
24 V
27 V
36 V
48 V
54 V
Range
12-15 V
12-15 V
16-21 V
22-30 V
22-30 V
31-47 V
48-56 V
48-56 V
12-15 V
12-15 V
16-21 V
22-30 V
22-30 V
31-47 V
48-56 V
48-56 V
Output Current
Maximum
Peak
(2)
25.00 A
46.66 A
20.00 A
46.66 A
16.66 A
33.33 A
12.50 A
23.33 A
11.11 A
23.33 A
8.33 A
17.07 A
6.25 A
12.72 A
5.55 A
12.72 A
33.33 A
46.66 A
26.66 A
46.66 A
22.22 A
33.33 A
16.66 A
23.33 A
14.81 A
23.33 A
11.11 A
17.07 A
8.33 A
12.72 A
7.40 A
12.72 A
SMQ
Model
Number
(3)
SMQ300PS12-C†^
SMQ300PS15-C†^
SMQ300PS18-C
SMQ300PS24-C†^
SMQ300PS27-C
SMQ300PS36-C
SMQ300PS48-C†^
SMQ300PS54-C
SMQ400PS12-C†^
SMQ400PS15-C†^
SMQ400PS18-C
SMQ400PS24-C†^
SMQ400PS27-C
SMQ400PS36-C
SMQ400PS48-C†^
SMQ400PS54-C
300 W
400 W
Notes
1. Other voltages are available. Contact sales office for details.
2. Standard models have foldback mode current protection with a high peak load capacity. This peak can be taken for 500 µs max.
3. For optional U-channel versions without fan/cover, change SMQ prefix to SMU, and delete suffix ‘-C’ from model number. Requires forced air cooling at 18 CFM.
†
Available from Farnell. See pages 204-206.
^
Available from Newark. See pages 207-208.

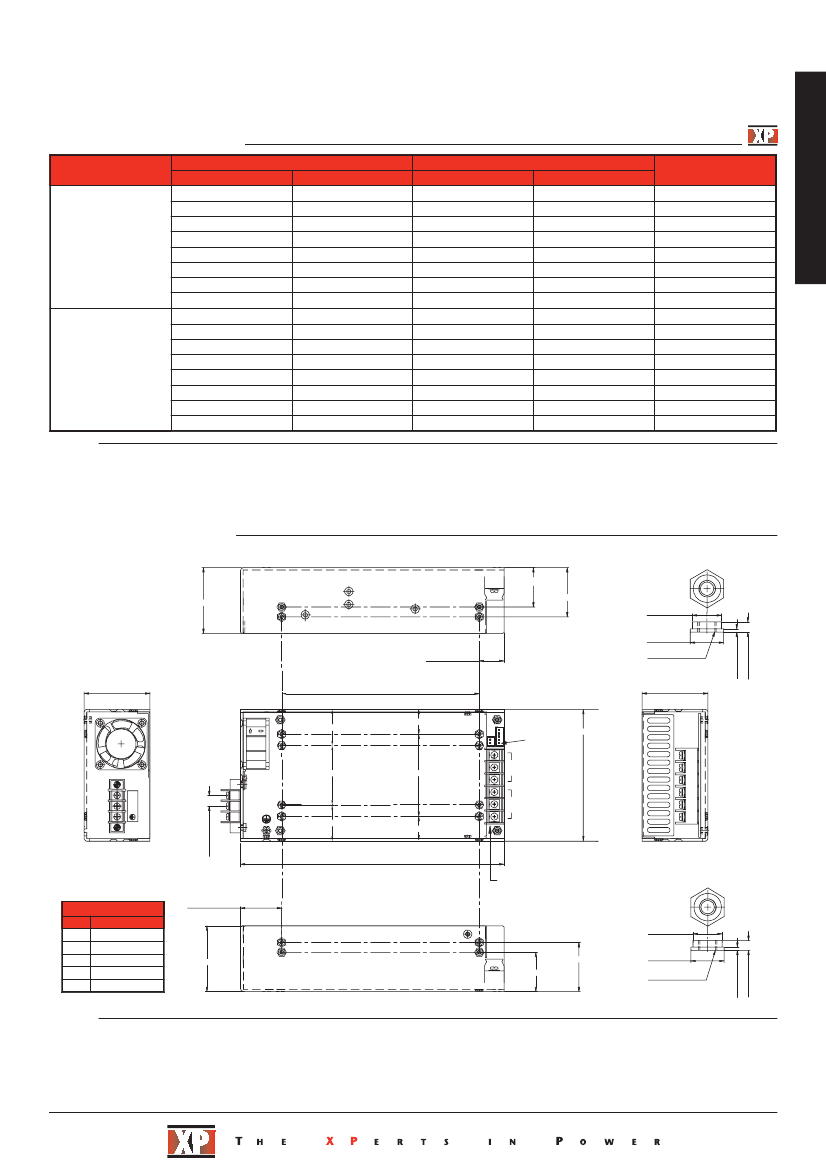

Mechanical Details
A Mounting Hole 8 Places
Scale 4:1
1.10 (27.94)
*
2.00 (50.8)
B
A
B
A
0.25 (6.4)
0.75 (19.05)
UNC6-32
(Zn-plated)
2.00 (50.8)
0.02 (0.6)
0.07 (1.9)
1.50 (38.1)
0.22 (5.6)
2.00 (50.8)
6.00 (152.4)
A
B
1.10 (27.94)
0.75 (19.05)
A
B
Pin
Control 1
VO-
4.00 (101.6)
1.80 (45.72)
L N
2.50 (63.5)
B
8.25 (0.32)
A
1.10 (27.94)
0.75 (19.05)
A
Terminal Block
M3 Screw
3 Pins 8.25 mm center
8.00 (203.2)
Terminal Block
M3.5 Screw 6 Pins 9.5 mm center
1.25 (31.75)
0.22 (5.6)
A
B
A
B
0.25 (6.4)
M4
(Zn (yellow) - plated)
0.02 (0.6)
0.07 (1.9)
B Mounting Hole 8 Places
Scale 4:1
Pin
1
2
3
4
5
Control
Function
DC OK
On/Off
RTN
-sense
+sense
VO+
B
2.00 (50.8)
1.50 (38.1)
1.10 (27.94)*
Notes
1.
2.
3.
4.
5.
6.
*
Dimensions in inches (mm).
Control connector mates with JST XHP-5 or equivalent.
Fan connector is wired in parallel to the internal fan. No auxiliary output is available.
Weight: 2.42 lbs (1100 g) approx.
Maximum mounting screw penetration: 0.15 (4.00) from case outer surfaces.
Remote ON/OFF activation is 3 minutes max.
Dimension for SMU models is 1.20 (30.48).
17-Apr-07
