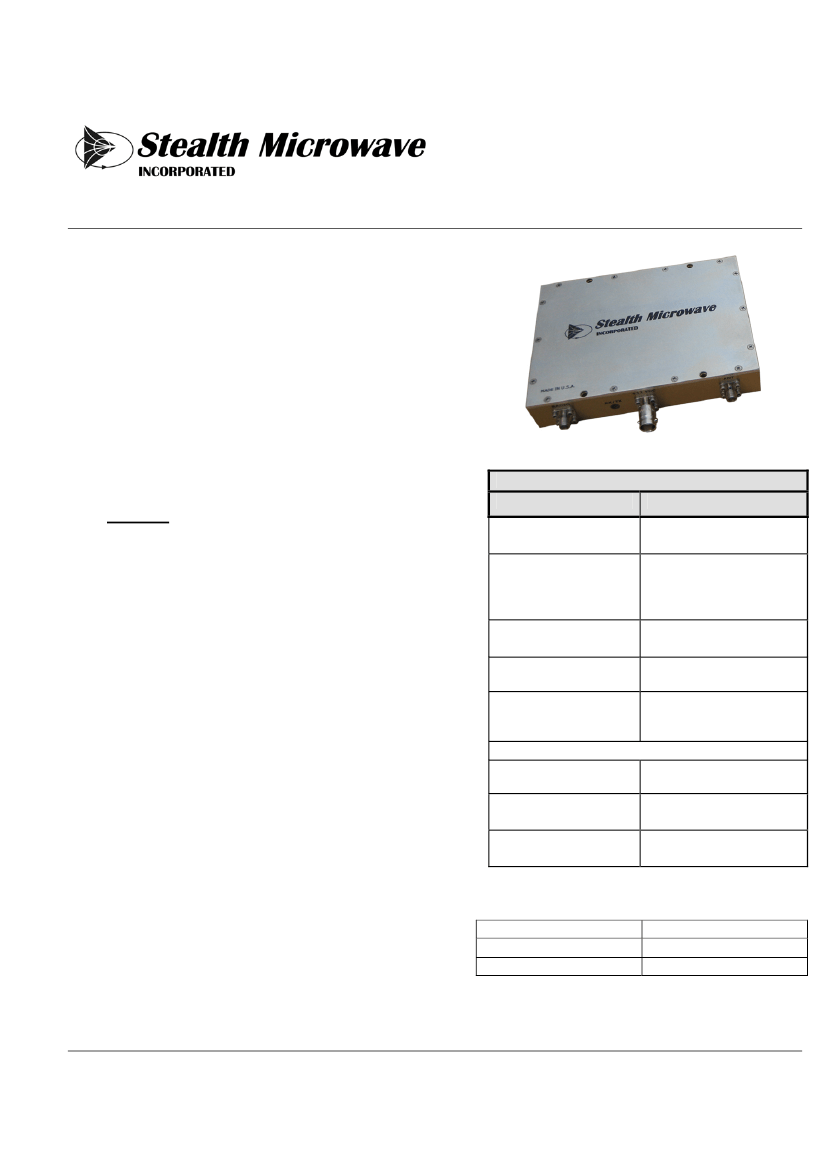

Model SMTR2425-11B40
2.4-2.5 GHz
10W Bi-Directional Power Amplifier
Stealth Microwave’s
SMTR2425-11B40
is
a solid state amplifier for use in 802.11b
WLAN systems. This SSPA utilizes state of
the art LDMOS FET transistors which
allow for more efficient operation while still
meeting EVM limits. Designed primarily
for military use, the design can be applied
for various ISM band applications as well.
Features
U
Parameter
Frequency Range
802.11b Compliant
Power Out
Transmit Path
Specification
2400-2500 MHz
+ 40 dBm / 10W (min)
Output power can be
raised/lowered based on
requirements
Variable via AGC, can be
fixed if required.
+12 or + 28 Volts
2.5 – 3.0 A
(10W output)
•
•
•
•
•
Automatic Gain Control circuitry
provides consistent 10W output over
a wide input range
LED Tx/Rx mode status indicator
+12V Power Supply (+28V version
available )
Rugged Weatherproof Housing
Various DC/RF connector options
available
Gain
DC Input Voltage
DC Input Current
(On Transmit)
Receive Path
Receive Gain
23 dB (can be adjusted
based on requirements)
Receive Noise Figure
3 dB typical, 4 dB max.*
DC Input Current
(On Recieve)
Approx 150 mA
Mechanical Dimensions
RF Connectors
Operating Temperature
* Contact sales if lower NF required
6 x 5 x .8 inches
SMA Female
0ºC to +65ºC
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
Model SMTR2425-11B40
2.4-2.5 GHz
10W Bi-Directional Power Amplifier

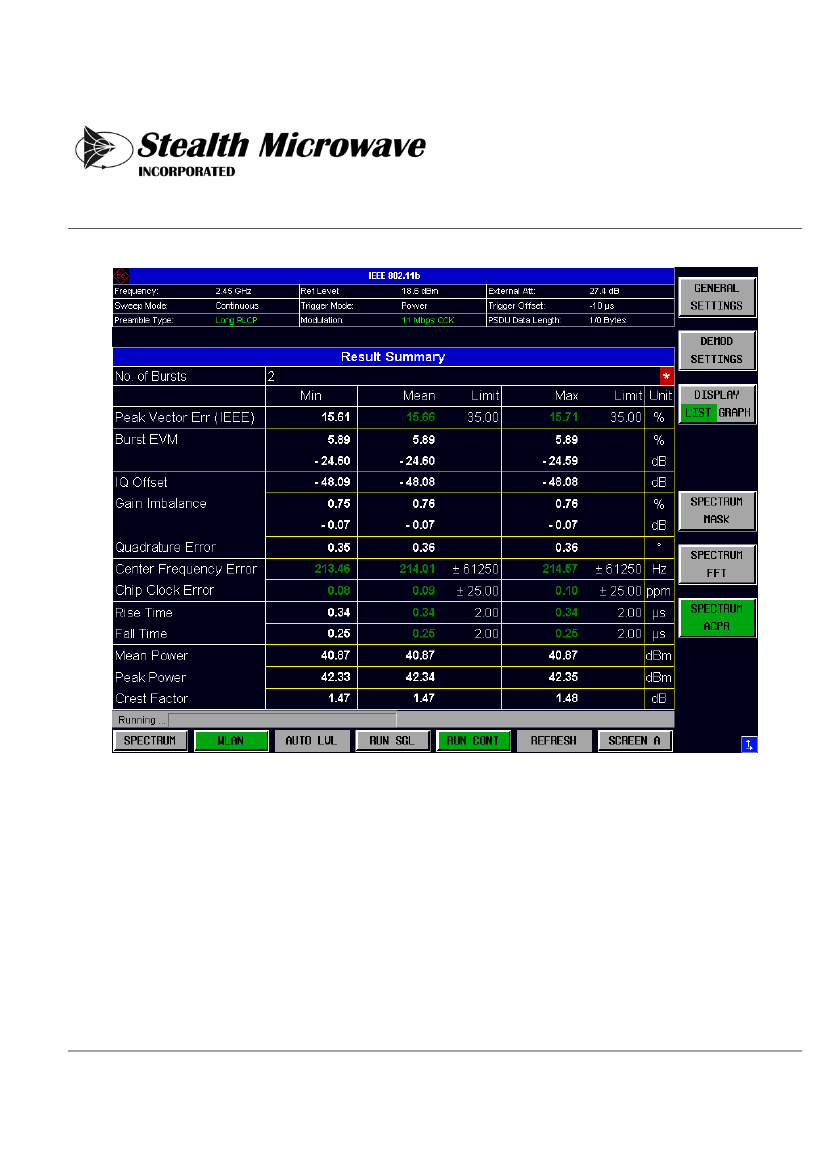

EVM Performance – 10W Average Power for 802.11b @11Mbps
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
Model SMTR2425-11B40
2.4-2.5 GHz
10W Bi-Directional Power Amplifier

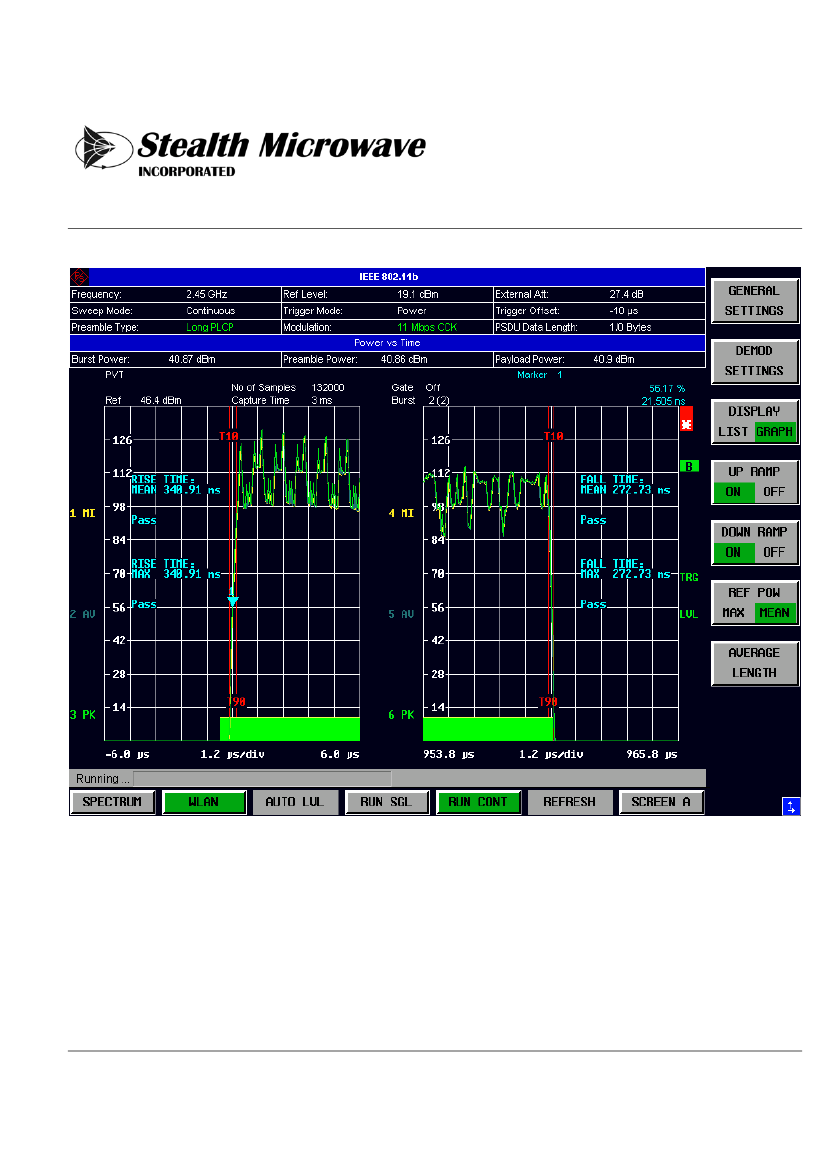

Rise/Fall Time Measurements
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
Model SMTR2425-11B40
2.4-2.5 GHz
10W Bi-Directional Power Amplifier

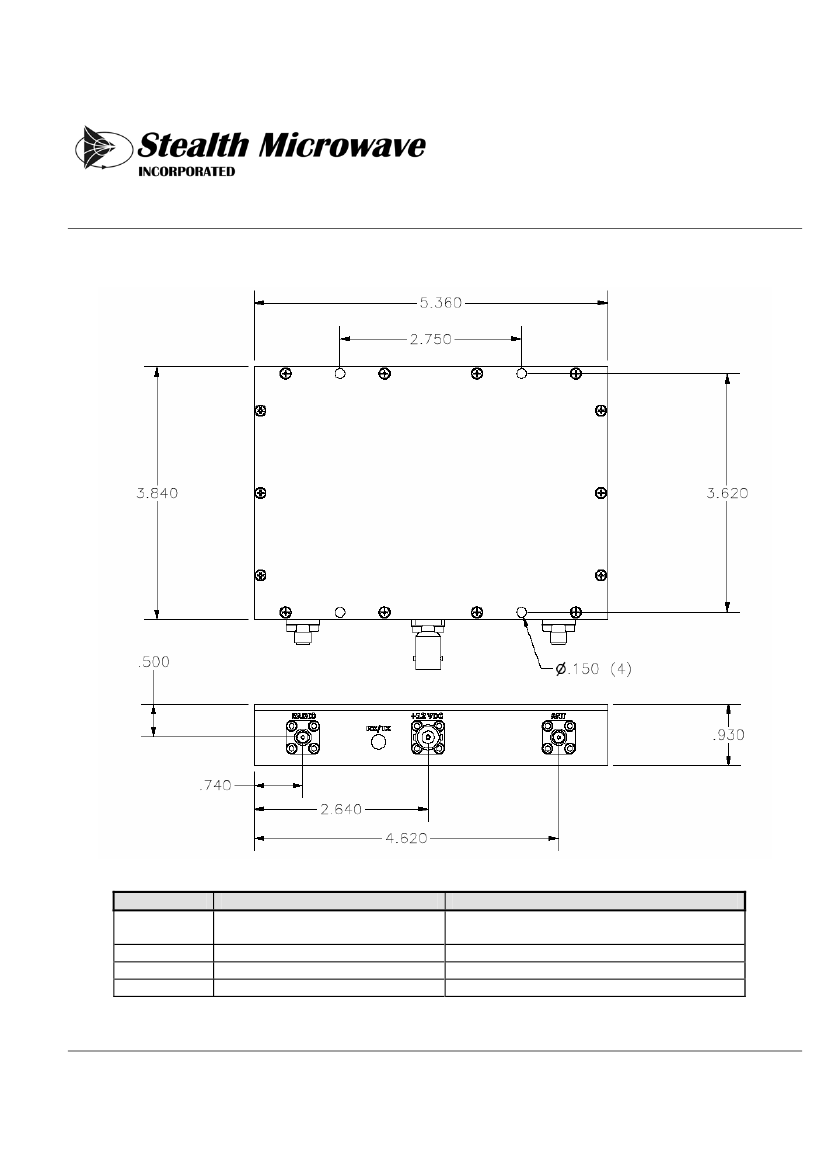

DIMENSIONS IN INCHES
Pin
RF INPUT
RF OUTPUT
GND
+12VDC
Description
Input Connector (SMA Female)
Output Connector (SMA Female)
Ground Turret
DC Input Voltage
Values
Input range set per customer requirements –
Typically +5 to +20dBm input
+40dBm
---
+ 12 Volts @ 2.5 Amperes (typ.)
Specifications subject to change without notice.
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
