52459-002: DescriptionTelecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size309KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52459-002 Overview

Telecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle

52459-002 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52459
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	PLASTIC
Termination type	SURFACE MOUNT
Total number of contacts	92

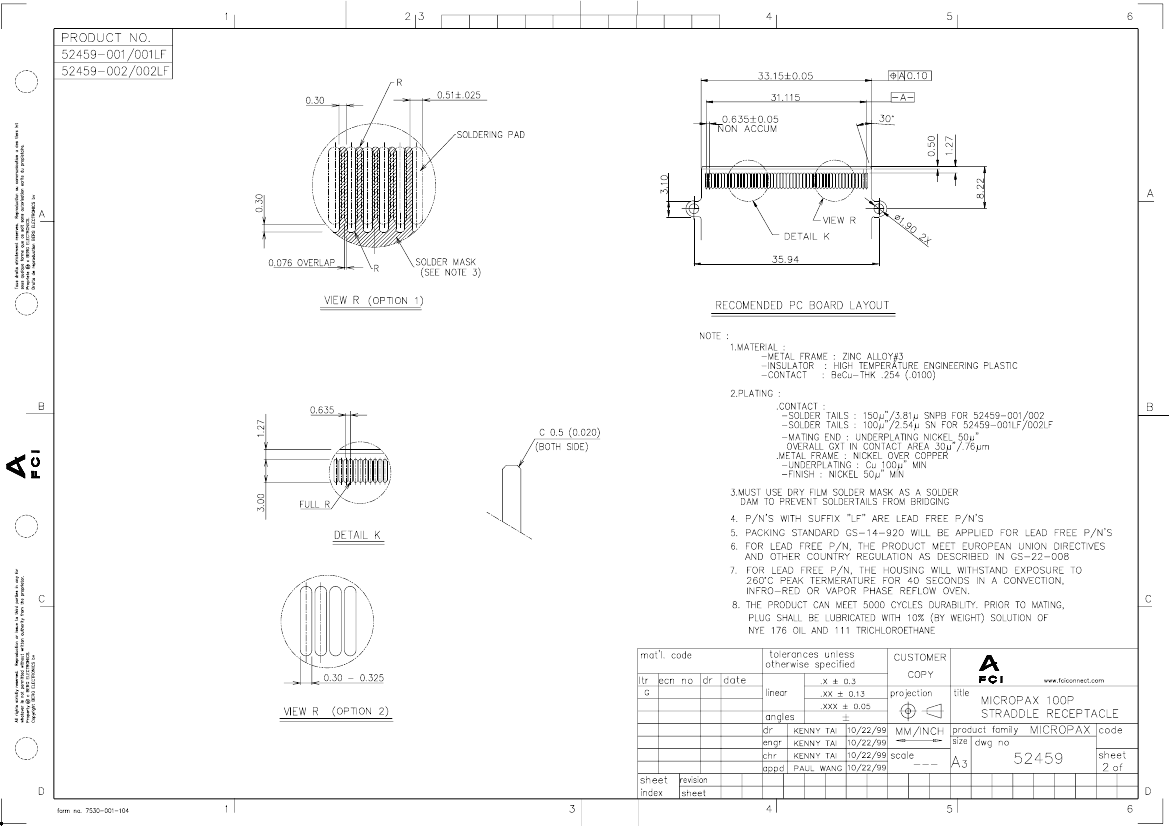

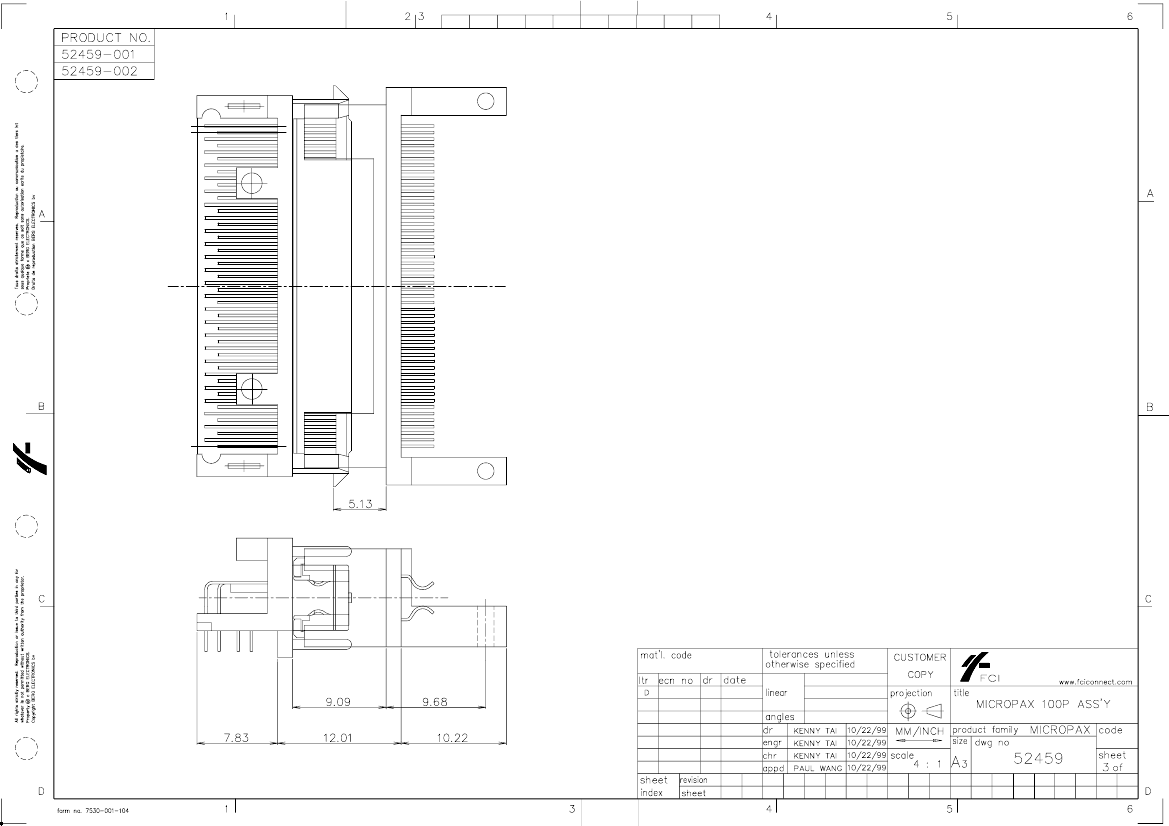

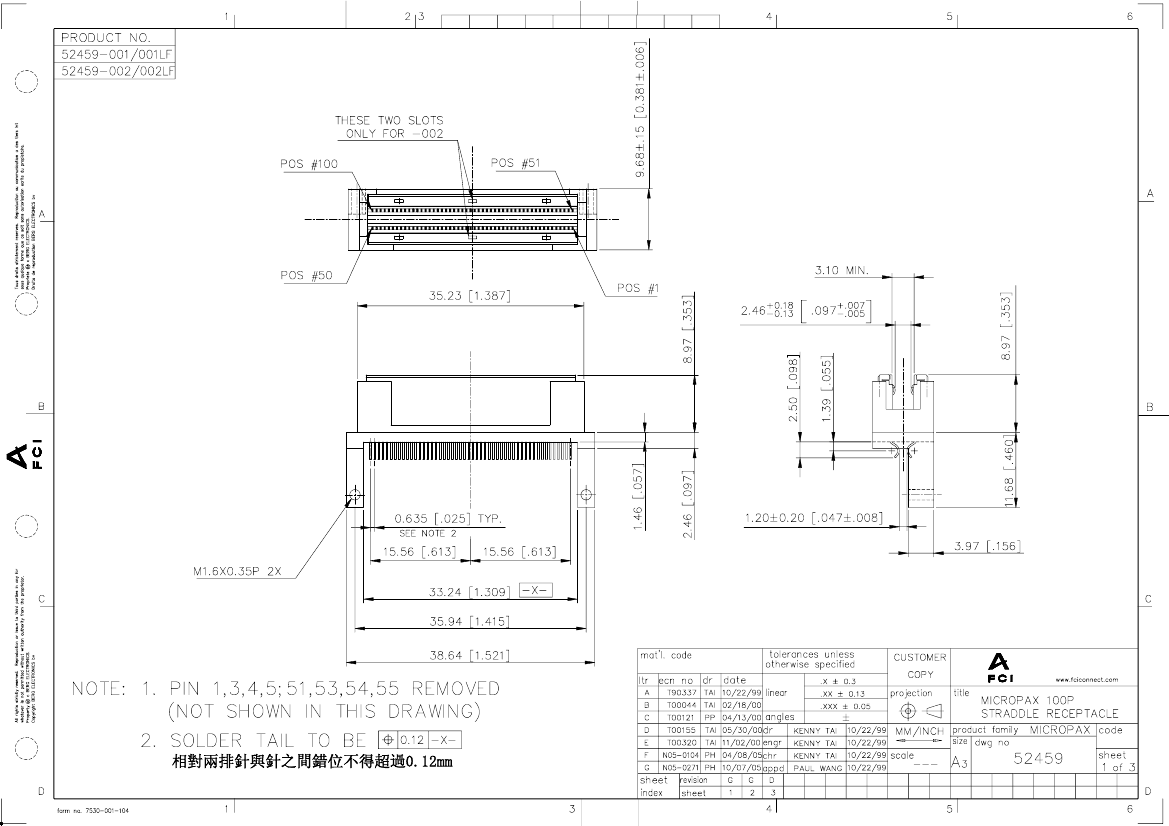

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Jul 22, 2010

.

52459-002 Related Products

	52459-002	52459-001LF	52459-001	52459-002LF
Description	Telecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 92 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	compliant	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL	TIN (100) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN (100) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e3	e0	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	92	92	92	92
Manufacturer's serial number	52459	52459	-	52459
