DSX421G-16MHZ-STBY2-CL1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> DSX421G-16MHZ-STBY2-CL1

DSX421G-16MHZ-STBY2-CL1: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Nom,; CategoryPassive components Crystal/resonator; File Size65KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/

Download Datasheet Parametric View All

DSX421G-16MHZ-STBY2-CL1 Overview

Parallel - Fundamental Quartz Crystal, 16MHz Nom,

DSX421G-16MHZ-STBY2-CL1 Parametric

Parameter Name	Attribute value
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	50 ppm
load capacitance	8 pF
Manufacturer's serial number	DSX421G
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L4XB2.5XH0.85 (mm)
surface mount	YES

Preview

Download Datasheet

View All

SMD Type Crystal Resonators

DSX421G

NEW

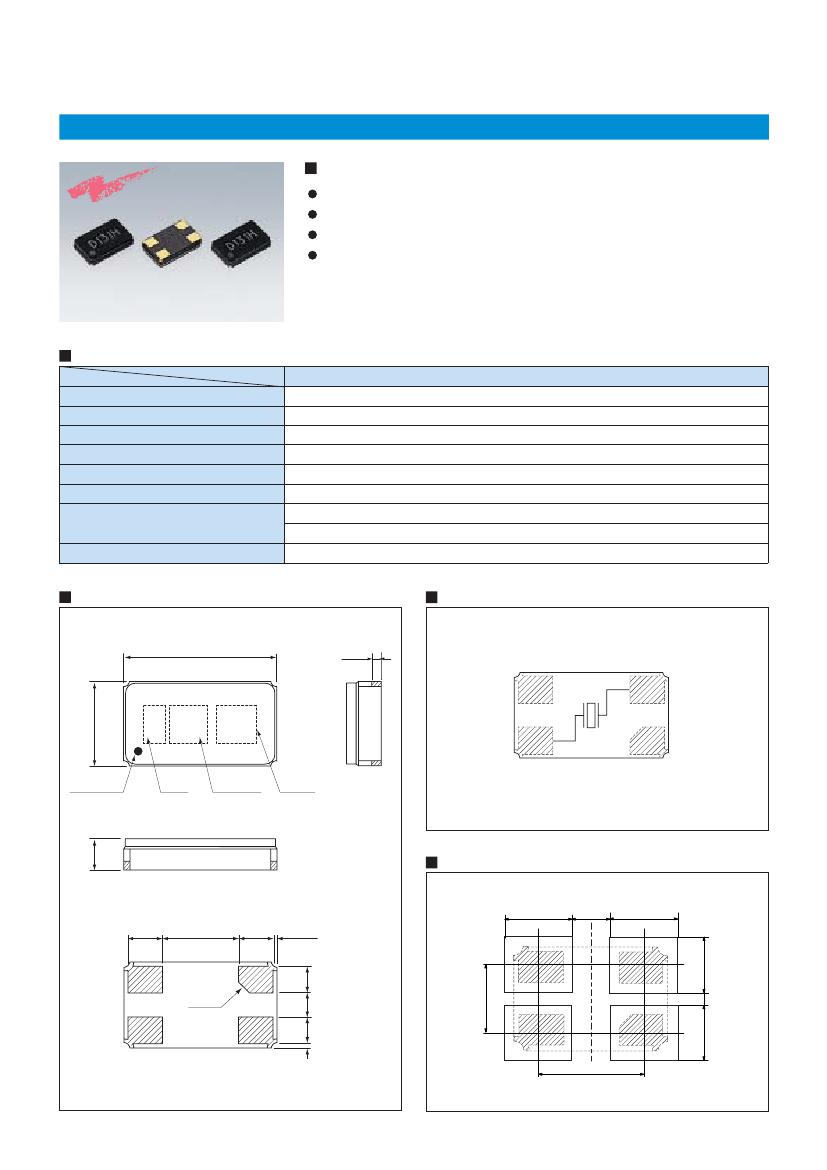

Features

Miniature SMD crystal resonators.

（height 0.85mm）

Higher precision and reliability.

Good for automatic mounting and reflow soldering.

Suitable for Bluetooth or Radio LAN

Generic Specification

Item

Frequency Range

Vibration Mode

Load Capacitance

Drive Level

Frequency Tolerance

Series Resistance

Frequency Characteristics

over Temperature

Storage Temperature Range

Packing Unit : 3000pcs./reel

Type

DSX421G

12, 13, 16, 26MHz

Fundamental

Series, 8pF, 10pF, 12pF

10μW (300μW max.)

±10×10

-6

∼±50×10

-6

(at 25℃)

60Ω max.

±7×10

-6

/−10∼＋60℃ (Ref. to 25℃)

±15×10

-6

/−30∼＋85℃ (Ref. to 25℃)

−40∼＋85℃

Consult our sales representative for other specifications or special specifications.

Dimensions[mm]

Internal Connections

〈Top View〉

4.0±0.1

0.25

2.5±0.1

D 13 1G

Logo

Frequency

Lot.No.

#1&#3 connected to quartz element

#2&#4 are open

#1pin is

marked

0.85±0.15

Recommended Land Pattern

[mm]

1.3

0.9

（2.0）

0.9

4−0.1

1.6

1.3

C0.3

0.8 （0.7） 0.8

1.5

4−0.1

2.9

1.2

0.3

1.2
