REVISION AB
AB
RHLE-50-DBE
HLE-1XX-02-XXX-DV-XX-XX-XX

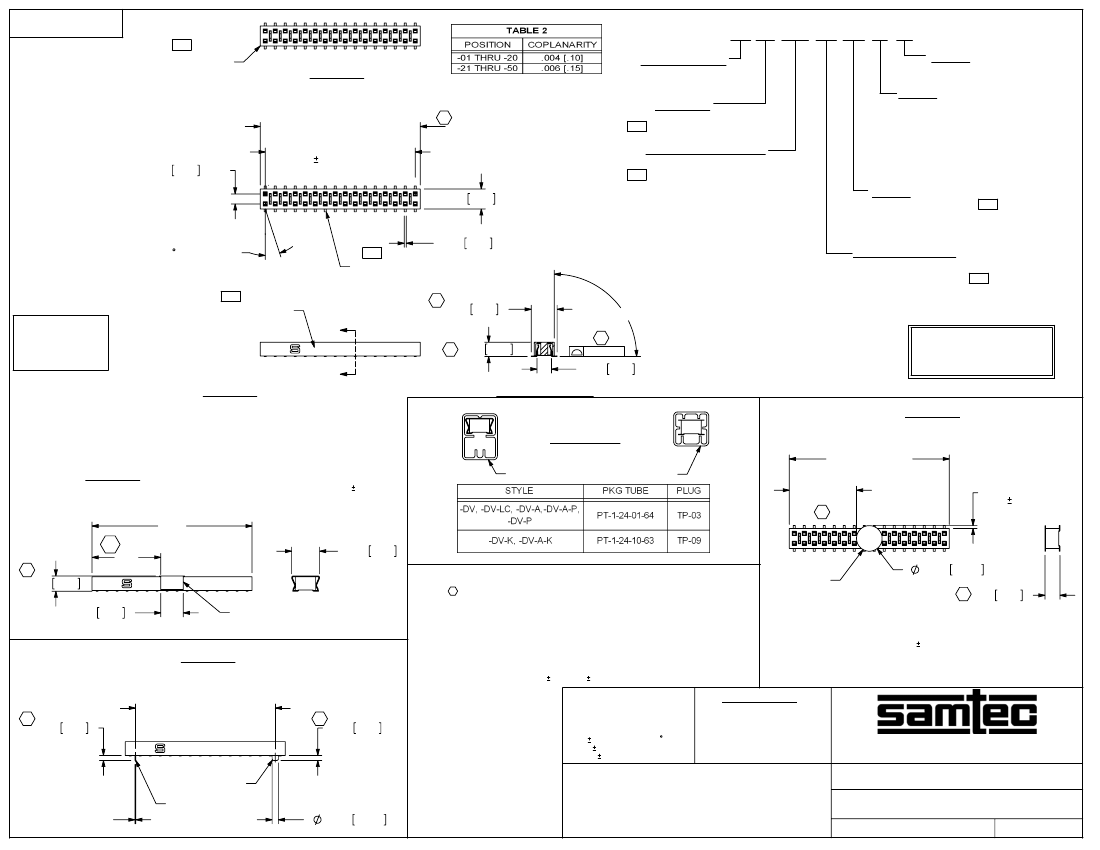

FIGURE 5
C1
-BE OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
No OF POS x .100 [2.54]
-.005 [.13]
+.008 [.20]
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-02: SURFACE MOUNT
(USE C-132-12-X)
AB
.100 2.54 REF
({No of POS - 1} x .100 [2.54])
.005 [.13]
02
.200 5.08 REF
01
2 MAX SWAY
AB
C-132-12-XXX
.020 0.51 REF
AB
DO NOT
SCALE FROM
THIS PRINT
RHLE-50-D
C3
.259 6.57
.144 3.66
C8
"A"
C7
PLATING SPECIFICATION
-G: GOLD (USE C-132-12-G)
AB
-S: SELECTIVE GOLD
(USE C-132-12-S)
-F: SELECTIVE FLASH GOLD
(USE C-132-12-F)
-L: SELECTIVE LIGHT GOLD
(USE C-132-12-L)
-H: HEAVY GOLD
(USE C-132-12-H)
ROW SPECIFICATION
-STL: SELECTIVE TIN/LEAD
-DV: DOUBLE VERTICAL
(USE C-132-12-STL)
(USE RHLE-50-D)
AB
-SM SELECTIVE GOLD/MATTE TIN TAIL
(USE C-132-12-S)
-FM SELECTIVE FLASH GOLD/MATTE TIN TAIL
(USE C-132-12-F)
90°±3° -LM LIGHT GOLD/MATTE TIN TAIL
(USE C-132-12-L)
OPTION
-TR: TAPE & REEL
(2 - 29 POSITIONS ONLY)
OPTION
-P: PICK & PLACE PAD
(POS -03 THRU -50 ONLY)
-A: ALIGNMENT PIN (4 POS MIN)
-LC: LOCKING CLIP (2 POS MIN)
-K: POLYAMIDE FILM PAD (AVAILABLE
ON POS -03 THRU -50; .005 [.13]
THICKNESS WITH SILICONE ADHESIVE)
(SEE FIG. 1)
OPTION
AB
-BE: BOTTOM ENTRY
(USE RHLE-50-DBE)(SEE FIG. 5)
(LEAVE BLANK FOR STANDARD)
SEE TABLE 2
FIGURE 1
HLE-116-02-XXX-DV SHOWN
"A"
.146 3.70
5713755 / 5961339
FIGURE 4
PATENT NUMBERS
SECTION "A"-"A"
TUBE VIEWS
-K: POLYMIDE FILM PAD
AVAILABLE ON POS 03 THRU 50
"R" (SEE NOTE)
"S"
(SEE NOTE)
C6
FIGURE 3
(-P: PICK AND PLACE PAD)
AVAILABLE ON POSITIONS 03 THRU 50
"R"
C10
C2
NOTE: "R" = USE MEASURED DIM (REF)
"S" = {("R" - .225 [5.72])/2} .020 [.51]
PT-1-24-01-64
PT-1-24-10-63
.028±.010
[.71 .25]
"S"
.280 7.11
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL IDENTIFICATION MARKS MUST NOT STAND GREATER THAN .002 [.05]
OFF THE SURFACE OF THE PART.
3. PULL OUT FORCE FOR -LC, -A, & CONTACT IS 12 oz MIN.
4. COPLANARITY: SEE TABLE 2.
5. BURR ALLOWANCE: .003 [.08] MAX
6. CUT ASSEMBLIES AFTER FILL. CUT FLASH TO BE .010 MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS. WILL LOSE A POSITION
FOR EVERY CUT MADE ON A SOCKET STRIP.
7. TUBE POSITIONS 03 THRU 50. LAYER PACKAGE POSITION 02.
8. ENDWALL THICKNESS: .029 .003 [.74 .08].
.152 3.86
.225 5.72
MPP-02
K-500-300
.2559 6.500
C9
.149 3.78
-A & -LC OPTION
(No OF POS x .1000) - .2000
[2.540] [5.080]
FIGURE 2
NOTE: "R" = USE MEASURED DIM (REF)
"S" = {("R" - .2559 [6.500])/2} .020 [.51]
C4
.050 1.27
C5
.050 1.27
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
3
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
SM-A10H
.008 x .056 REF
[.20 x 1.42]
LC-08-TM-01
.0625 1.588
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
BODY: VECTRA E130i
CONTACT: BeCu
F:\DWG\MISC\MKTG\HLE-1XX-02-XXX-DV-XX-XX-XX-MKT.SLDDRW
[2.54] .100 TIGER BEAM SOCKET ASSEMBLY
HLE-1XX-02-XXX-DV-XX-XX-XX
ED MESSER 12/19/98
SHEET
1
OF
1
BY:
