6N135/6, HCNW135/6
HCPL-2502/0500/0501
Single Channel, High Speed Optocouplers
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
These diode-transistor optocouplers use an insulating
layer between a LED and an integrated photodetector to
provide electrical insulation between input and output.
Separate connections for the photodiode bias and out-
put-transistor collector increase the speed up to a hun-
dred times that of a conventional phototransistor coupler
by reducing the base-collector capacitance.
These single channel optocouplers are available in
8-Pin DIP, SO-8 and Widebody package configurations.
The 6N135, HCPL-0500, and HCNW135 are for use in TTL/
CMOS, TTL/LSTTL or wide bandwidth analog applications.
Current transfer ratio (CTR) for these devices is 7% mini-
mum at I
F
= 16 mA.
The 6N136, HCPL-2502, HCPL-0501, and HCNW136 are
designed for high speed TTL/TTL applications. A standard
16 mA TTL sink current through the input LED will pro-
vide enough output current for 1 TTL load and a 5.6 kΩ
pull-up resistor. CTR for these devices is 19% minimum at
I
F
= 16 mA.
Features
•
High speed: 1 Mb/s
•
TTL compatible
•
Available in 8-Pin DIP, SO-8, widebody packages
•
Open collector output
•
Safety approval
UL Recognized – 3750 V
rms
for 1 minute (5000 V
rms
for 1 minute for HCNW and Option 020 devices)
per UL1577
CSA Approved
IEC/EN/DIN EN 60747-5-5 Approved
– V
IORM
= 567 V peak for SO-8 devices
– V
IORM
= 630 V peak for DIP 300 mil devices
– V
IORM
= 1414 V peak for DIP 400 mil (widebody)
devices
•
Dual channel version available (253X/053X/0534)
Applications
•
High voltage insulation
•
Video signal isolation
•
Line receivers
•
Feedback element in switched mode power supplies
Functional Diagram
NC 1
ANODE 2
CATHODE
3
8 V
CC
7 V
B
6 V
O
5 GND
TRUTH TABLE
(POSITIVE LOGIC)
LED
V
O
ON
LOW
OFF
HIGH
•
High speed logic ground isolation
– TTL/TTL, TTL/CMOS, TTL/LSTTL
•
Replaces pulse transformers
•
Replaces slow phototransistor isolators
•
Analog signal ground isolation
NC 4
A 0.1 µF bypass capacitor must be connected between pins 5 and 8.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Ordering Information
6N135, 6N136, HCPL-2502, HCPL-0500, HCPL-0501 are UL Recognized with 3750 V
rms
for 1 minute per UL1577.
HCNW135, HCNW136 are UL Recognized with 5000 V
rms
for 1 minute per UL1577. All these devices are approved under
CSA Component Acceptance Notice #5, File CA 88324.
Option
Part number
RoHS
Compliant
-000E
-300E
-500E
6N135
6N136
HCPL-2502
-020E
-320E
-520E
-060E
-360E
-560E
-000E
HCPL-0500
HCPL-0501
-500E
-060E
-560E
HCNW135
HCNW136
-000E
-300E
-500E
Non RoHS
Compliant
No option
#300
#500
#020
#320
#520
#060
#360
#560
No option
#500
#060
#560
No option
#300
#500
Package
Surface
Mount
X
X
Gull
Wing
X
X
X
X
X
X
X
X
X
X
Tape
& Reel
UL 5000
V
rms
/ 1 Minute
rating
IEC/EN/DIN
EN 60747-5-5 Quantity
50 per tube
50 per tube
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1000 per reel
50 per tube
50 per tube
1000 per reel
50 per tube
50 per tube
1000 per reel
100 per tube
1500 per reel
100 per tube
1500 per reel
42 per tube
42 per tube
750 per reel
300mil
DIP-8
X
X
X
X
X
X
SO-8
400 mil
Widebody
DIP-8
X
X
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
HCPL-2502-560E to order product of 300 mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with
IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant.
Example 2:
HCPL-2502 to order product of 300 mil DIP package in tube packaging and non RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 2001 and RoHS
compliant option will use ‘-XXXE‘.
3

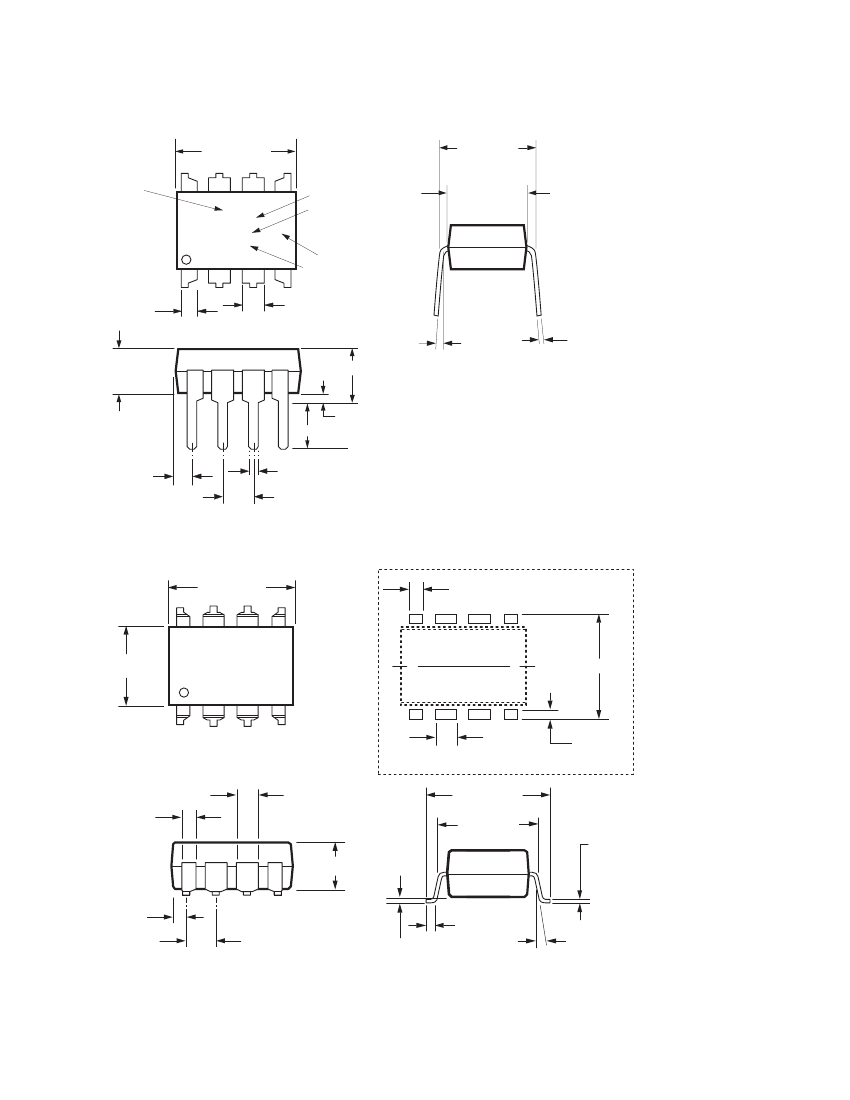

Package Outline Drawings
8-Pin DIP Package (6N135/6, HCPL-2502)
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
7
6
5
OPTION CODE*
DATE CODE
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
A XXXXZ
YYWW
EEE
1
1.19 (0.047) MAX.
2
3
RU
4
UL RECOGNITION
LOT ID
1.78 (0.070) MAX.
5
°
TYP.
0.254
+ 0.076
- 0.051
+ 0.003)
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
(0.010
- 0.002)
0.51 (0.020) MIN.
2.92 (0.115) MIN.
DIMENSIONS IN MILLIMETERS AND (INCHES).
*MARKING CODE LETTER FOR OPTION NUMBERS
"L" = OPTION 020
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
8-Pin DIP Package with Gull Wing Surface Mount Option 300 (6N135/6)
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
8
7
6
5
1.016 (0.040)
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1
2
3
4
1.27 (0.050)
1.780
(0.070)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
0.254
- 0.051
+ 0.076
(0.010
- 0.002)
+ 0.003)
1.080 ± 0.320
(0.043 ± 0.013)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
0.635 ± 0.130
(0.025 ± 0.005)
0.635 ± 0.25
(0.025 ± 0.010)
12
°
NOM.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
4
Small Outline SO-8 Package (HCPL-0500/1)
LAND PATTERN RECOMMENDATION
8
7
6
5
3.937 ± 0.127
(0.155 ± 0.005)
1
2
XXX
YWW
EEE
3
4
5.994 ± 0.203
(0.236 ± 0.008)
TYPE NUMBER
(LAST 3 DIGITS)
DATE CODE
LOT ID
7.49 (0.295)
PIN ONE
1.9 (0.075)
0.406 ± 0.076
(0.016 ± 0.003)
1.270 BSC
(0.050)
0.64 (0.025)
*
5.080 ± 0.127
(0.200 ± 0.005)
3.175 ± 0.127
(0.125 ± 0.005)
7
°
45
°
X
0.432
(0.017)
1.524
(0.060)
0~7
°
0.228 ± 0.025
(0.009 ± 0.001)
*
TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH)
5.207 ± 0.254 (0.205 ± 0.010)
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX.
0.203 ± 0.102
(0.008 ± 0.004)
0.305 MIN.
(0.012)
8-Pin Widebody DIP Package (HCNW135/6)
11.23 ± 0.15
(0.442 ± 0.006)
8
7
6
5
11.00 MAX.
(0.433)
9.00 ± 0.15
(0.354 ± 0.006)
A
HCNWXXXX
YYWW
EEE
1
2
3
4
TYPE NUMBER
DATE CODE
LOT ID
1.55
(0.061)
MAX.
10.16 (0.400)
TYP.
7
°
TYP.
+ 0.076
0.254 - 0.0051
+ 0.003)
(0.010 - 0.002)
5.10 MAX.
(0.201)
3.10 (0.122)
3.90 (0.154)
2.54 (0.100)
TYP.
1.8 ± 0.15
(0.071 ± 0.006)
0.40 (0.016)
0.56 (0.022)
0.51 (0.021) MIN.
DIMENSIONS IN MILLIMETERS (INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
