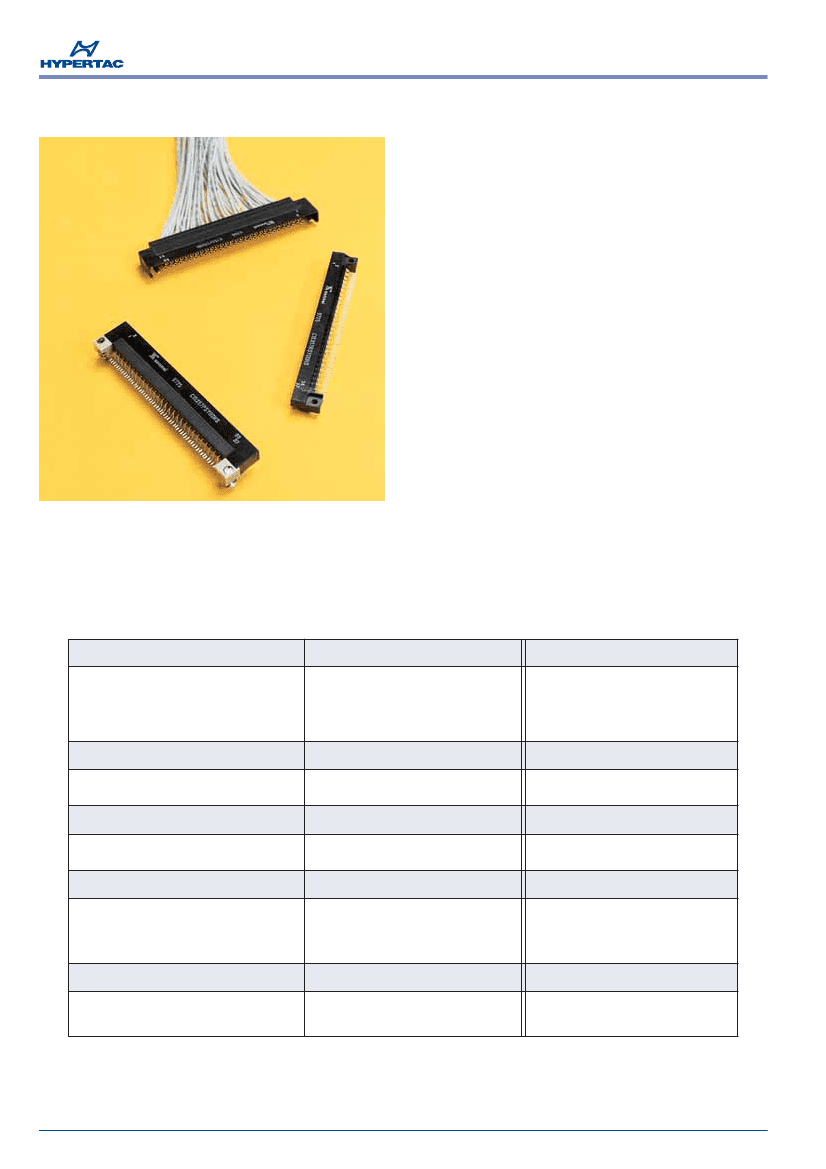

C153 Series
2 Contact Row High Density
Signal Connectors
•
Offset-grid contacts layout, two contact rows within
dielectric connector body, 1.905 mm center-to-center
contact spacing in each row and 1.651 row-to-row
spacing.
•
0.5 mm nominal pin DIA contact size; 57 contact
positions; dip solder, SMT soldering or wired contact
termination types.
•
High contact density and durability, low profile and
light weight. High shock and vibration proof (no
micro interruptions - test: 2ns).
•
Conforms to MIL-DTL-55302.
•
For military, test and burn-in systems for
semiconductor industry.
Technical Characteristics
MATERIAL
Body
Contacts
PPS
Brass
CuBe
Phosphor-Bronze
Stainless steel
MIL-M-24519
ASTM B455
ASTM B197
ASTM B139
ASTM A582
Hardware
FINISHES
Contacts
Hardware
MECHANICAL
Mating/Unmating force
Contact life
ELECTRICAL
Current rating
(1)
Contact resistance
Dielectric withstanding voltage
Insulation resistance
PHYSICAL AND ENVIROMENTAL
Shock
Vibration
Operating range
(1)
Consult
Gold
Passivation
ASTM B488
ASTM A967
50g max
30.000 insertion
-
-
2.0 A
≤
5.0 mΩ
1000 VRMS, 60 Hz a.s.l.
≥
5000 MΩ at 500 VDC
-
-
-
-
-
-
-65°C +125°C
In accordance with MIL-STD-1344
In accordance with MIL-STD-1344
-
factory for details
APRIL
2005
183
C153 Series
Ordering Information
C153
57
*
*
*
* *
* *
Connector family
Connector size
Connector and contacts style
Plug (socket contacts equipped)
Receptacle (pin contacts equipped)
P
R
Contact terminal style
Socket Crimp (AWG26)
Socket SMT soldering
Socket straight L=2.65
Pin SMT soldering
W
S
D
S
Hardware code
D-shaped (Pin for Plug)
D-shaped (Insert for Receptacle)
Omnipolarized guide
(1)
Screw locking for Plug type D
Screw locking for Plug type S
Insert screw locking for Receptacle
Hardware polarization
D-shaped guide
D-shaped guide in pos. 1 whitout Loctite
Omnipolarized guide
Guide (type P or Y) shipped loose
K, X Screw locking
Y
P
K
X
K
01÷16
00
17
18
19
Contact finishing
Plating conforming to MIL-DTL-55302
(2)
Plating conforming to MIL-DTL-55302 + tin dipping
(1)
H
HS
(2)
This
Receptacle body using thru hole
finishing is only for socket contacts crimp terminal style
184
APRIL
2005
C153 Series

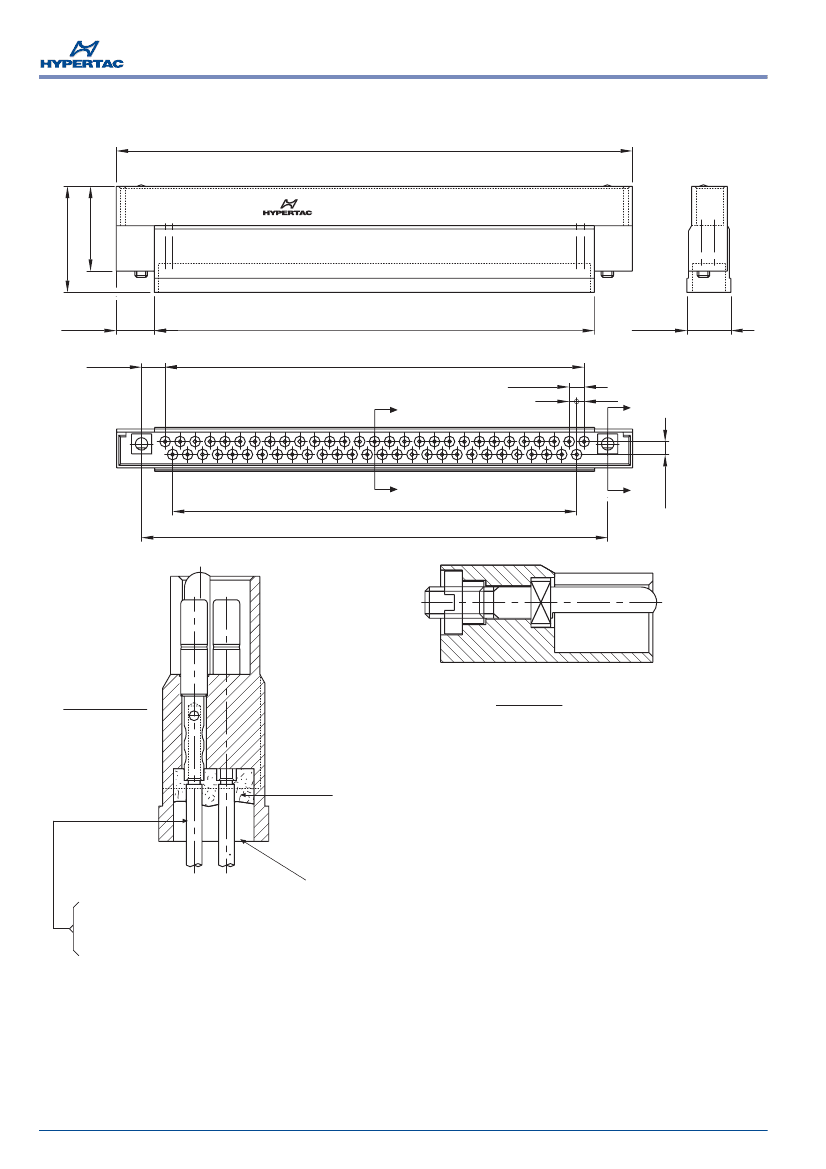

Plug connector socket contact equipped, crimp termination style, lead attached
65.70
2
1
13.50
10.80
****
C15357PW***H
56
57
4.85
56.00
5.60
3.00
1.905x28=53.34
1.905
=
A
=
B
A
1.905x27=51.435
59.34
B
SECTION A-A
Rotated 90° CCW
SECTION B-B
EPOXY RESIN
AND
SILICON POTTING
FILLED
CAUTION:
Color coding system is not applied.
The individual contact cavity number
provides the lead identification.
PLANE FROM WHICH THE
LEAD LENGTH IS MEASURED
Wire per MIL-W-22759/19 - Wire, Electric, Fluoropolymer-Insulated, Extruded EFTE. Light Weight,
Silver-Coated High Strength Copper Alloy Conductor, 600-Volt, 150°C.
Lead length= 2 ft; lead length tolerance +1.0, -0.0 in.
Umbilical connector for measuring and test equipments 57 socket contact positions,1.905 mm x 1.651 mm,
offset grid, crimp contact terminal style, lead attached.
1.65
Dimensions are in mm
APRIL
2005
185
C153 Series

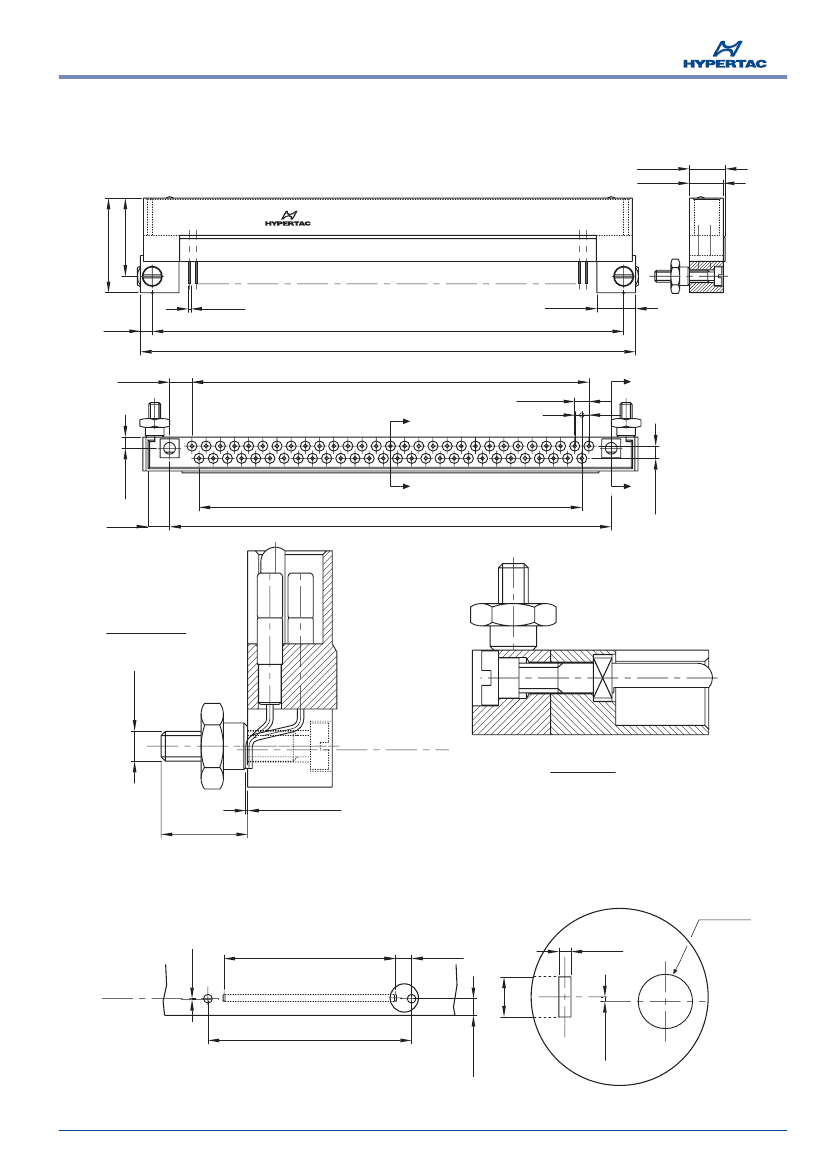

Plug connector socket contacts equipped surface mount tail termination style
(SMT soldering)
4.80
4.55
2
1
12.70
10.50
56
57
****
C15357PS***HS
Ø 0.35
1.60
63.34
66.54
3.00
1.905x28=53.34
1.905
5.20
B
=
=
A
1.50
2.68
59.34
SECTION A-A
Rotated 90° CCW
M1.60
Solder lead center line
SECTION B-B
0.10 preloading
4.65
Card edge connector for measuring and test devices, (i.e. extender board applications), 57 socket contact position,
1.905 mm x 1.651 mm, offset grid, surface mount tail termination style (SMT soldering).
1.651
A
1.905x27=51.435
B
Ø 2.70 min
0.60
Solder lead
center line
63.34
0.225
0.9525x56=53.34
5.00
2.00
Mounting pattern, in line arrangement board-to-board connection
Dimensions are in mm
186
5.20 max
0.225
APRIL
2005
C153 Series

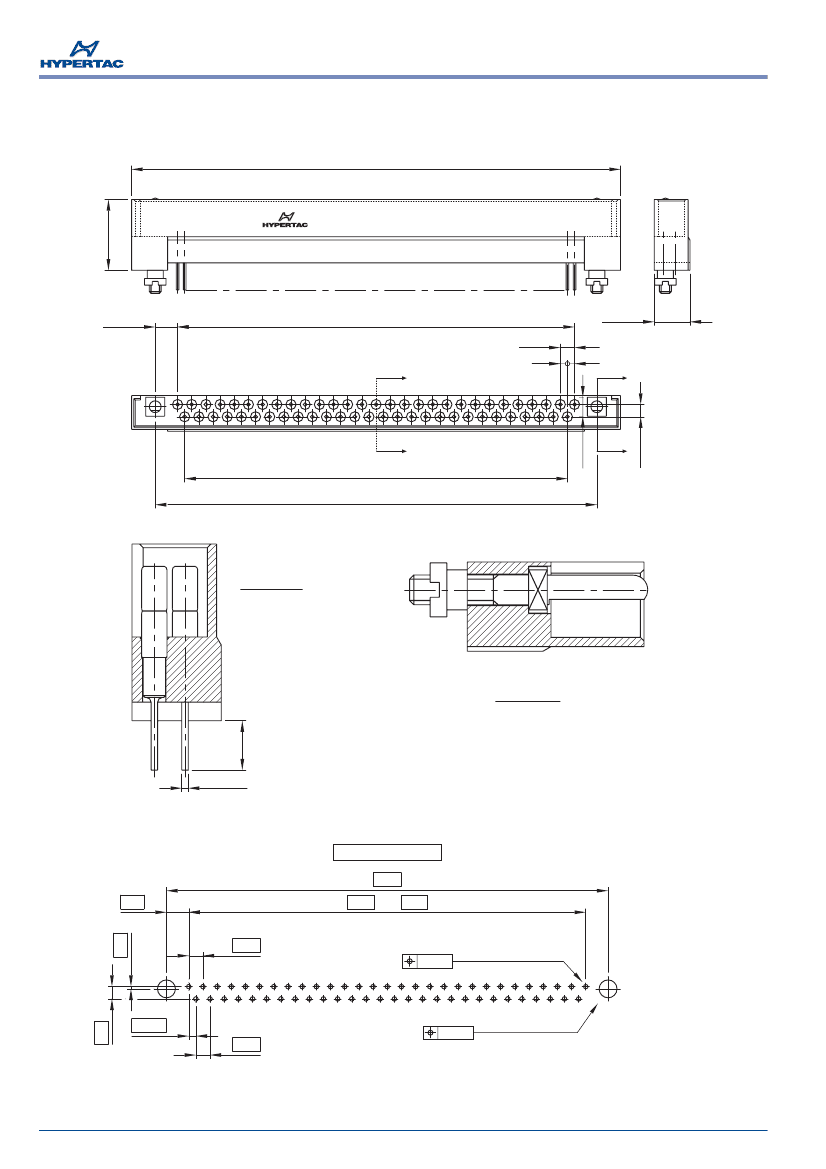

Plug connector socket contact equipped, dip solder contact termination style
65.70
2
9.50
1
****
C15357PD***HS
56
57
3.00
1.905x28=53.34
1.905
=
A
=
4.80
B
2.55
1.905x27=51.435
59.34
SECTION A-A
SECTION B-B
Ø0.35
Plug connector 57 socket contact positions, 1.905 mm x 1.651 mm, offset grid, dip solder contact termination style for pcb 1.60÷2.20 max
2.65
COMPONENT SIDE
59.34
3.00
1.905 x28= 53.34
0.30
1.905
Ø 0.05
Ø 0.60 min. (57 holes)
1.65
0.9525
1.905
Ø 0.05
Ø 2.40 min. (2 holes)
Mounting pattern, motherboard application (recommended PCB hole configuration)
1.65
A
B
Dimensions are in mm
APRIL
2005
187
