1.8x5.3mm 5, 7, 10 ELEMENTS LED ARRAYS
L131EB/5 SERIES
L131EB/7 SERIES
L131EB/10 SERIES
Features
!
COLORS
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green and Super Bright Green source color devices
are made with Gallium Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium Arsenide
Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
CAN BE MIXED IN A SINGLE HOUSING.
!
5,7,10 ELEMENTS.
!
EASY INSTALLATION.
!
SUITABLE
!
UL
FOR LEVEL INDICATORS.
RATING : 94V-0.
!
HOUSING MATERIAL: TYPE 66 NYLON.

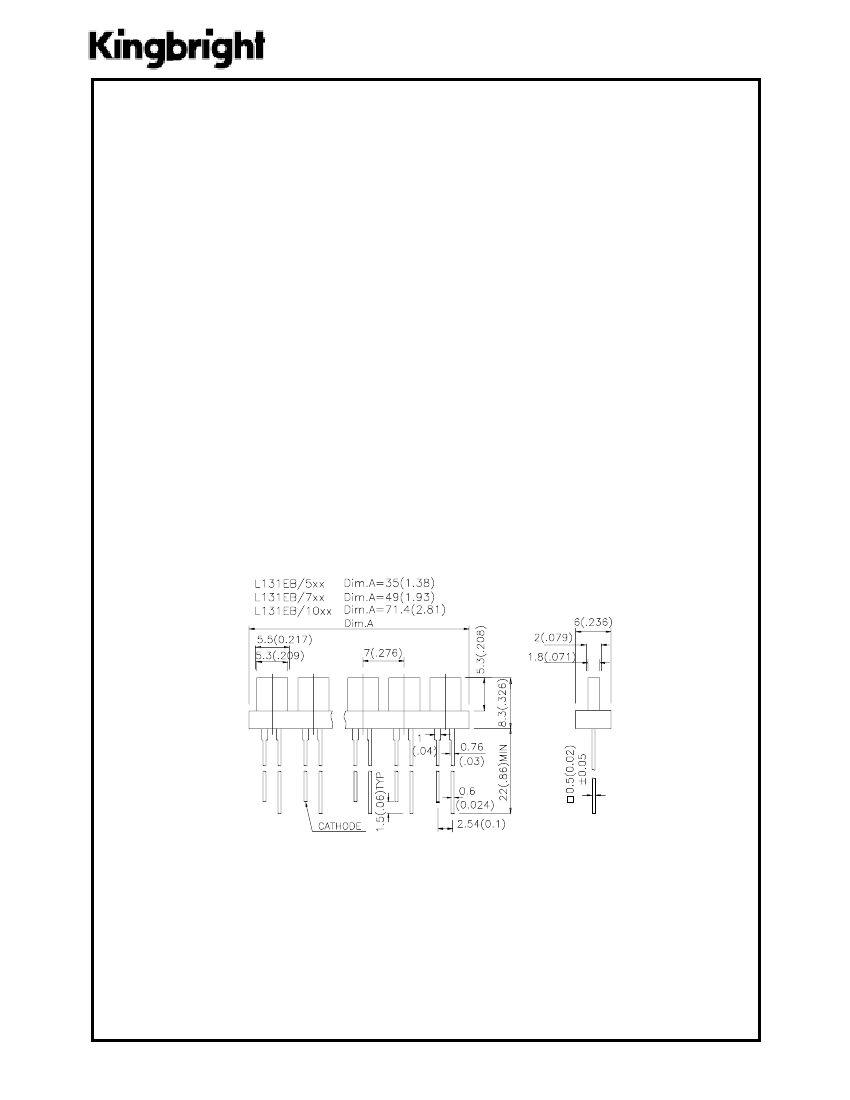

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: CDA0636
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/04/2001
DRAWN: Y.F.XU
PAGE: 1 OF 5
Selection Guide
Par t No .
Di c e
L en s Ty p e
Iv (mc d )
@ 10 mA
Min .
L131EB/5HD
L131EB/7HD
L131EB/10HD
L131EB/5ID
L131EB/7ID
L131EB/10ID
L131EB/5GD
L131EB/7GD
L131EB/10GD
L131EB/5YD
L131EB/7YD
L131EB/10YD
BRIGHT RED (GaP)
RED DIFFUSED
0.3
Ty p .
1
View in g
An g l e
2θ1/2
110°
HIGH EFFICIENCY RED (GaAsP/GaP)
RED DIFFUSED
2
3
110°
GREEN (GaP)
GREEN DIFFUSED
1
1.5
110°
YELLOW (GaAsP/GaP)
YELLOW DIFFUSED
1
1.5
110°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par ameter
Dev ic e
Bright Red
High Efficiency Red
Green
Yellow
Bright Red
High Efficiency Red
Green
Yellow
Ty p .
700
627
565
590
660
625
568
588
45
45
30
35
40
15
15
20
2.25
2.0
2.2
2.1
2.5
2.5
2.5
2.5
10
Max .
Un i t s
Tes t Co n d itio n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Green
Yellow
Capacitance
Bright Red
High Efficiency Red
Green
Yellow
Bright Red
High Efficiency Red
Green
Yellow
All
nm
IF=20mA
C
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
VR = 5V
SPEC NO: CDA0636
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/04/2001
DRAWN: Y.F.XU
PAGE: 2 OF 5
Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operation/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r ig h t Red
120
25
120
5
Hig h Effic ien c y
Red
105
30
160
5
Gr een
105
25
140
5
-40
°
C To +85
°C
Yello w
105
30
140
5
Un i t s
mW
mA
mA
V
260
°
C For 5 Seconds

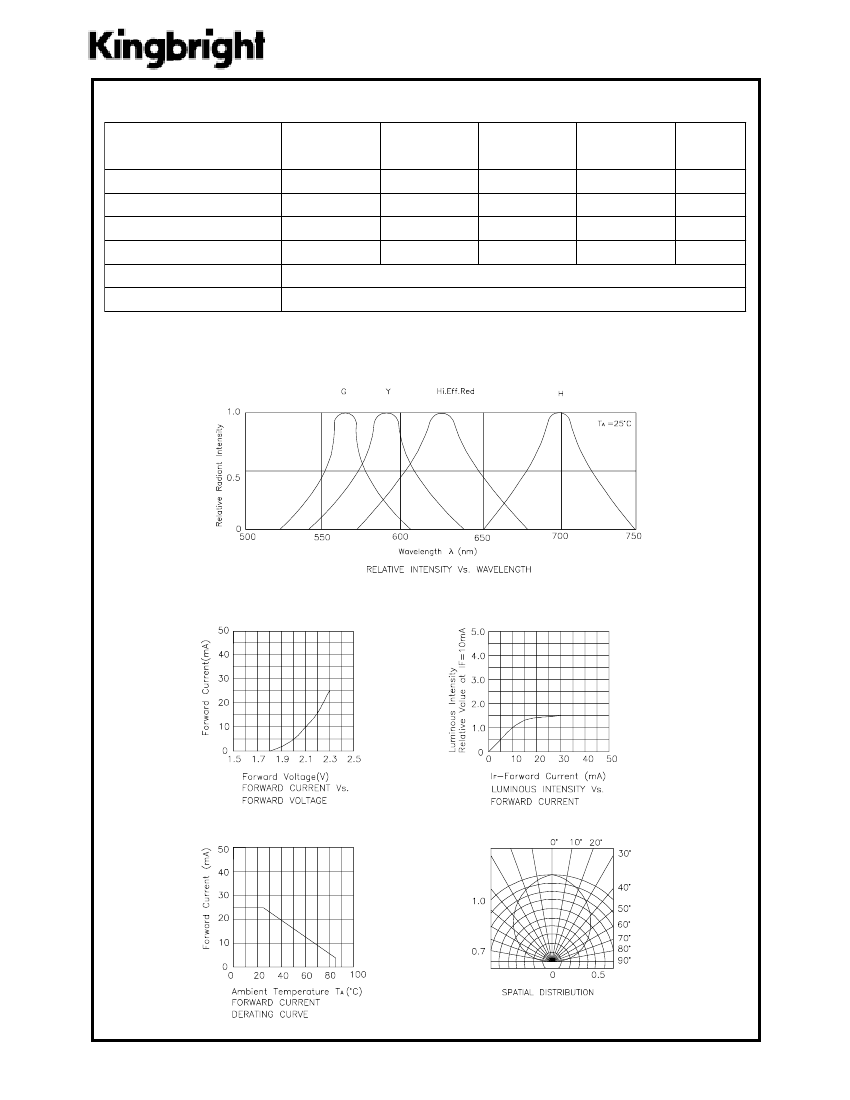

Bright Red
SPEC NO: CDA0636
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/04/2001
DRAWN: Y.F.XU
PAGE: 3 OF 5
