LM2902N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM2902N

LM2902N: DescriptionOperational Amplifier, 4 Func, BIPolar, PDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size416KB，9 Pages; ManufacturerSGS-Ates Componenti Electronici SPA; Related ProductsFound20parts with similar functions to LM2902N

Download Datasheet Parametric View All

LM2902N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM2902N	-	-	View	Buy Now

LM2902N Overview

Operational Amplifier, 4 Func, BIPolar, PDIP14

LM2902N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SGS-Ates Componenti Electronici SPA
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/26 V
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

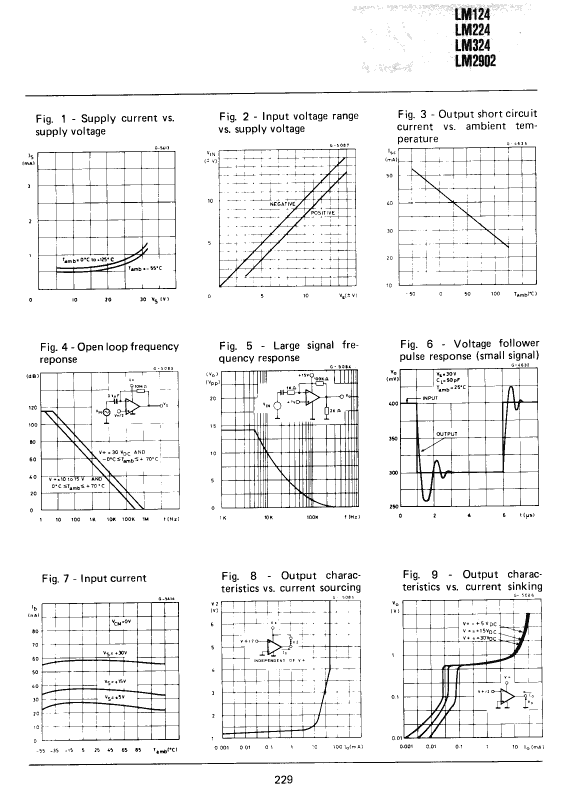

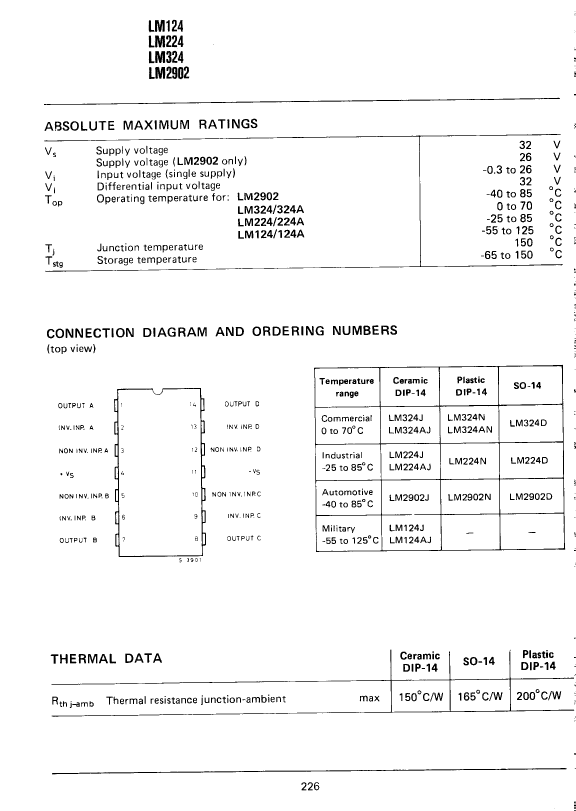

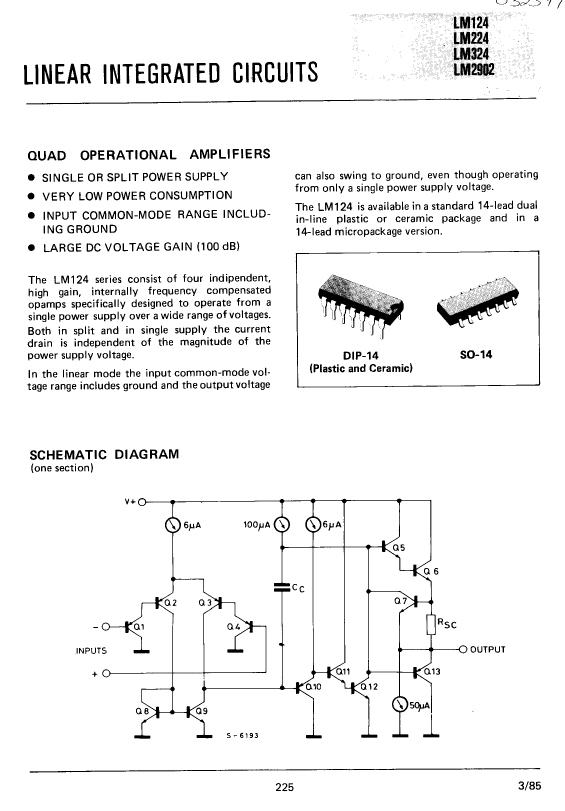

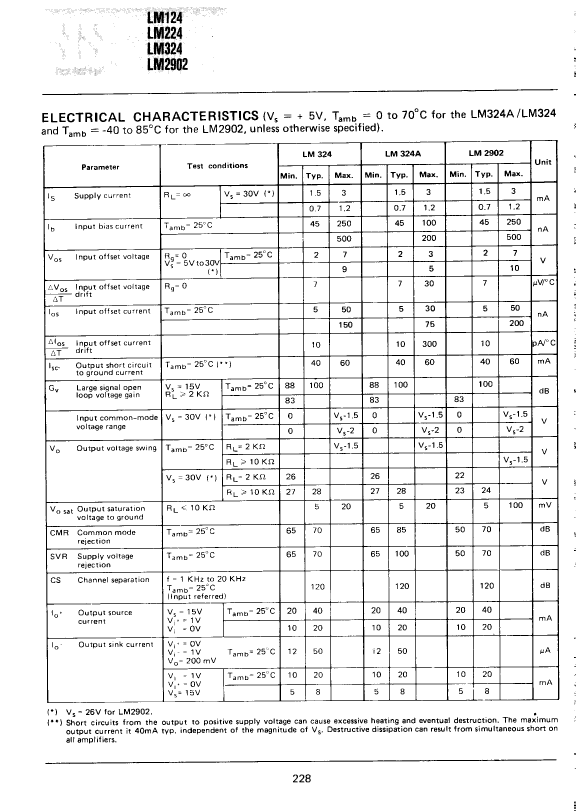

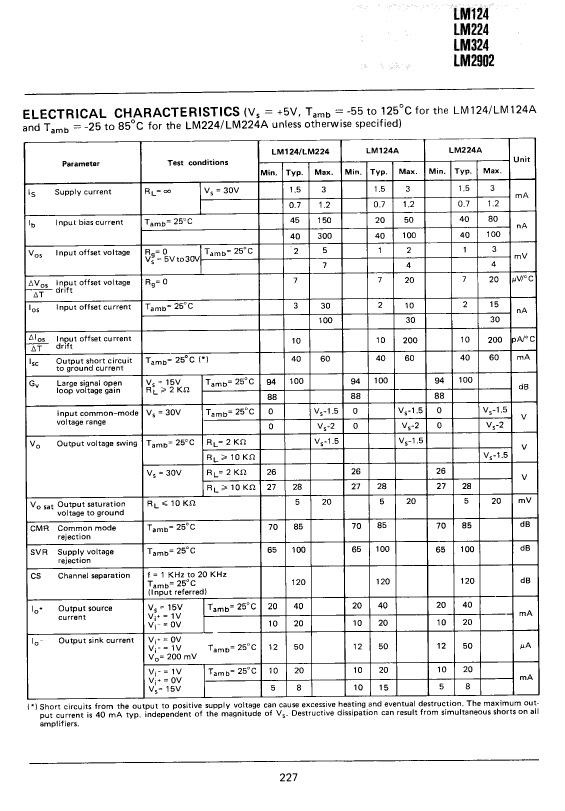

Preview

Download Datasheet

View All
