MR82C87H-5/883 datasheet, PDF - EEWORLD Datasheet

MR82C87H-5/883: DescriptionMR82C87H-5/883; Categorylogic logic; File Size236KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

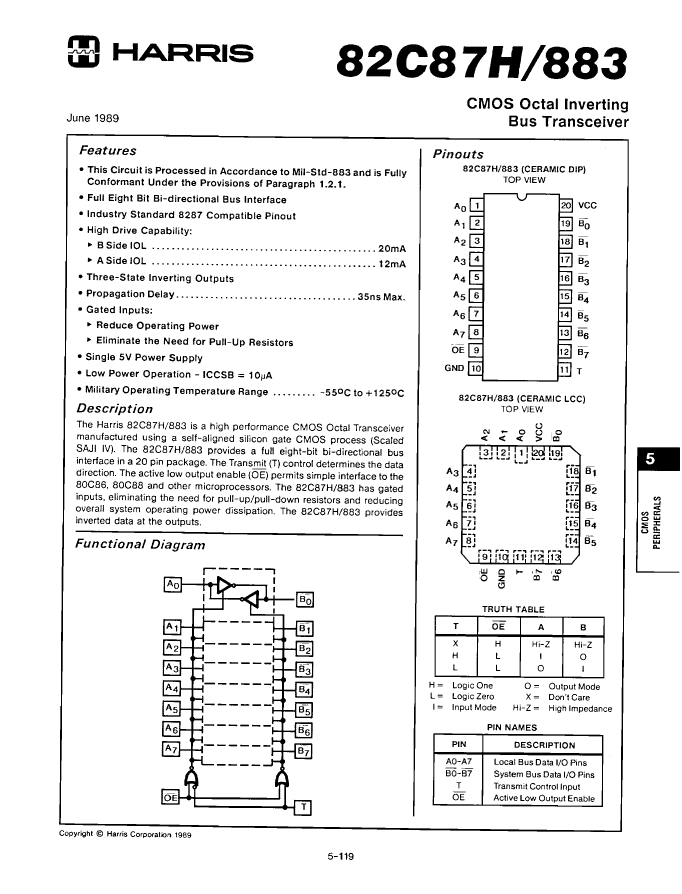

MR82C87H-5/883 Overview

MR82C87H-5/883

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation

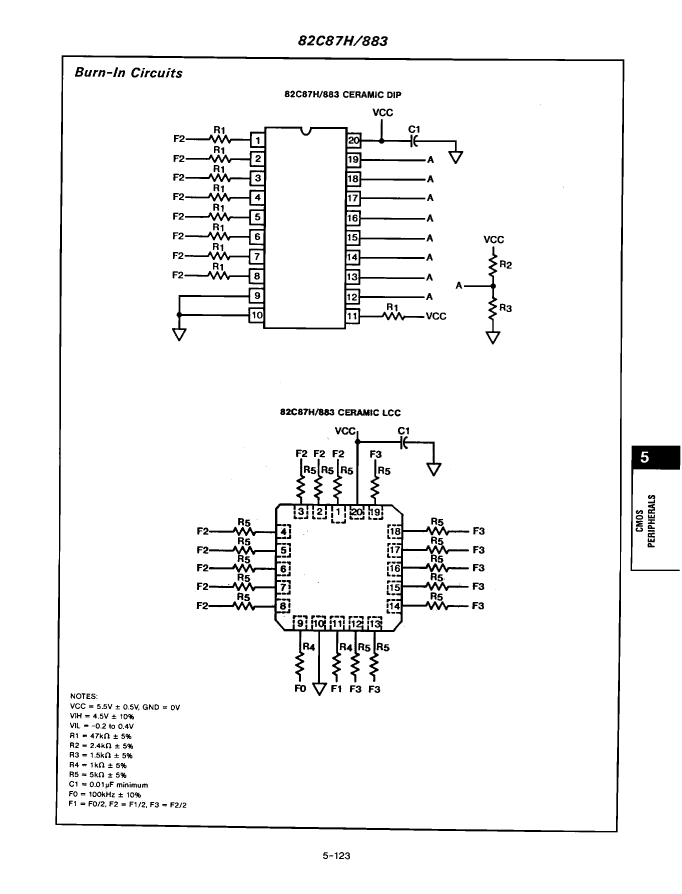

package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-XQCC-N20
MaximumI(ol)	0.02 A
Number of digits	8
Number of functions	1
Number of terminals	20

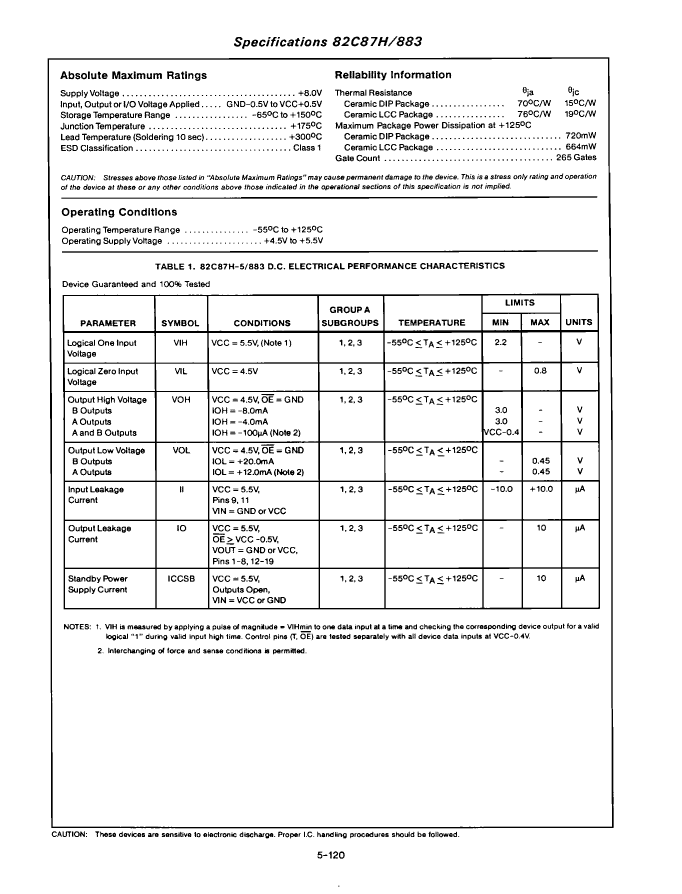

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V

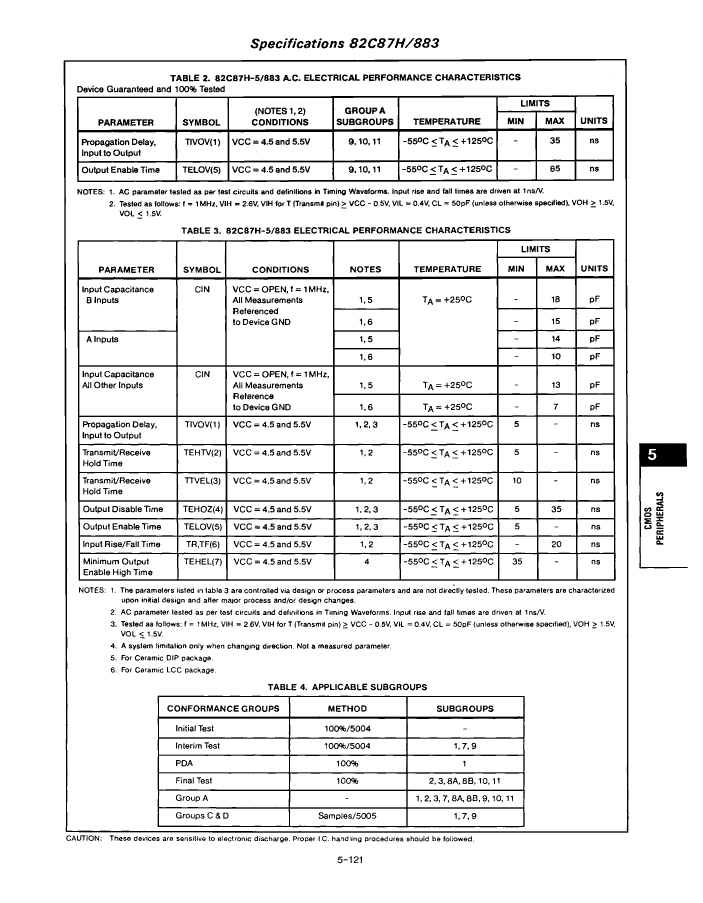

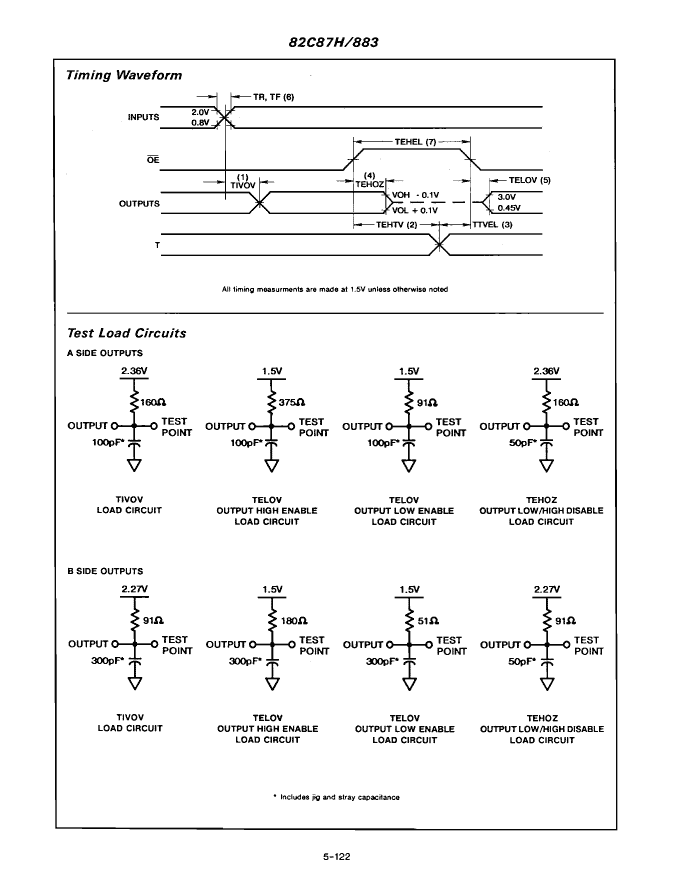

Prop。Delay @ Nom-Sup	65 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

	MR82C87H-5/883	MD82C87H-5/883
Description	MR82C87H-5/883	IC,BUS TRANSCEIVER,SINGLE,8-BIT,ACT-CMOS,DIP,20PIN,CERAMIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	compliant
Control type	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-XQCC-N20	R-XDIP-T20
MaximumI(ol)	0.02 A	0.02 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	65 ns	65 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
