851956: DescriptionSAW Filter, 1 Function(s), 160MHz,; CategoryAnalog mixed-signal IC filter; File Size23KB，1 Pages; ManufacturerSawtek Inc.

Download Datasheet Parametric View All

851956 Overview

SAW Filter, 1 Function(s), 160MHz,

851956 Parametric

Parameter Name	Attribute value
Maker	Sawtek Inc.
Reach Compliance Code	unknown
Center frequency or cutoff frequency (fo/fc)	160 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	25.1 dB
length	34.79 mm
Manufacturer's serial number	851956
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Output impedance	50 OHM Ω
physical size	L34.79XB12.64XH5.33 (mm)/L1.37XB0.498XH0.21 (inch)

Preview

Download Datasheet

View All

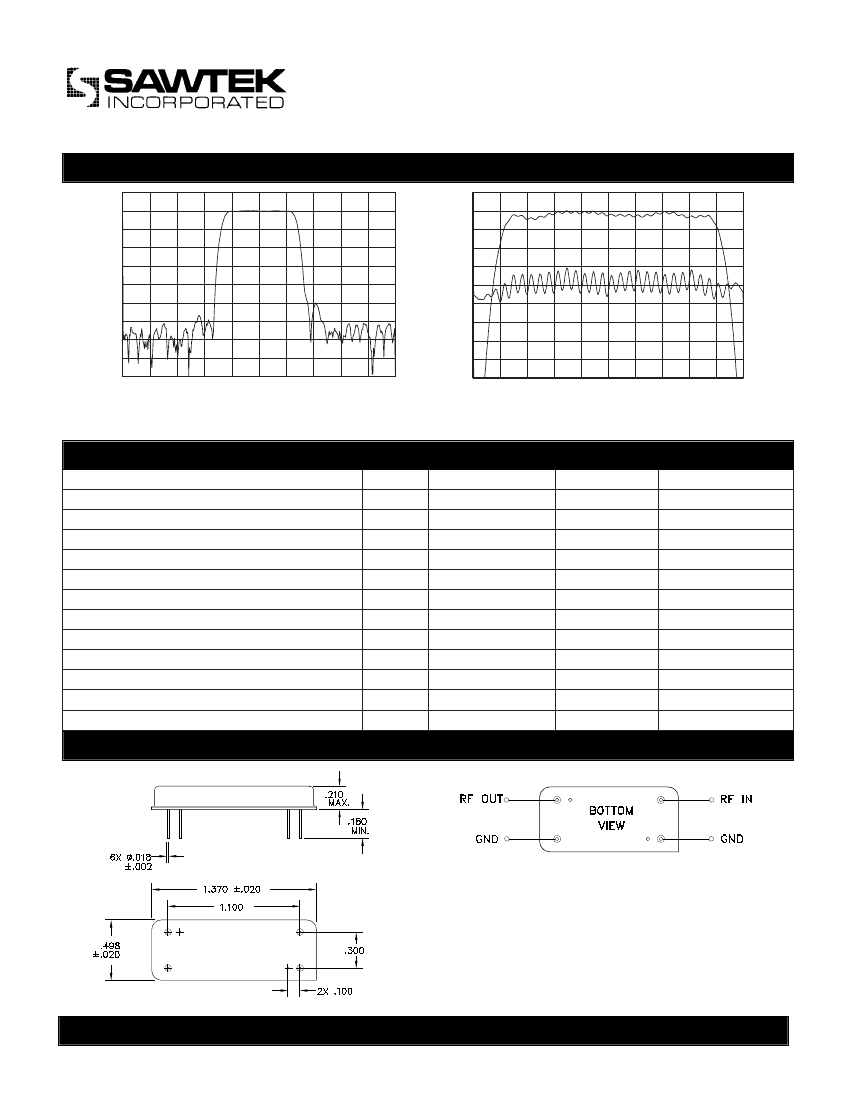

160 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal: 1 MHz/Div

155 156 157 158 159 160 161 162 163 164 165

Vertical: 10 dB/Div

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

158.5

158.8

159.1

500

400

300

200

100

0

-100

-200

-300

-400

-500

160.9

161.2

25.1

-

3.28

0.8

8

370

-

85

161.5

2.5 MHz Bandwidth

Part Number 851956

Horizontal: 300 kHz/Div

Vertical: 1 dB/Div

Vertical: 100 nsec/Div

159.4

159.7

160

160.3

160.6

Parameter

Center Frequency

Insertion Loss at F

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Variation

Phase Linearity

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Operating Temperature Range

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

dB

-

°C

159.85

-

2.37

2.5

-

55

-

-55

Typical

160

22.3

2.39

2.56

3.23

0.51

4.9

250

5.06

60

Quartz

25

Maximum

160.15

Package Outline

Matching Configuration

No Matching Required

Nominal Source/Load Impedance = 50Ω

Package Style W

11/29/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
