DIP Inductors - Shielded
ctparts.com

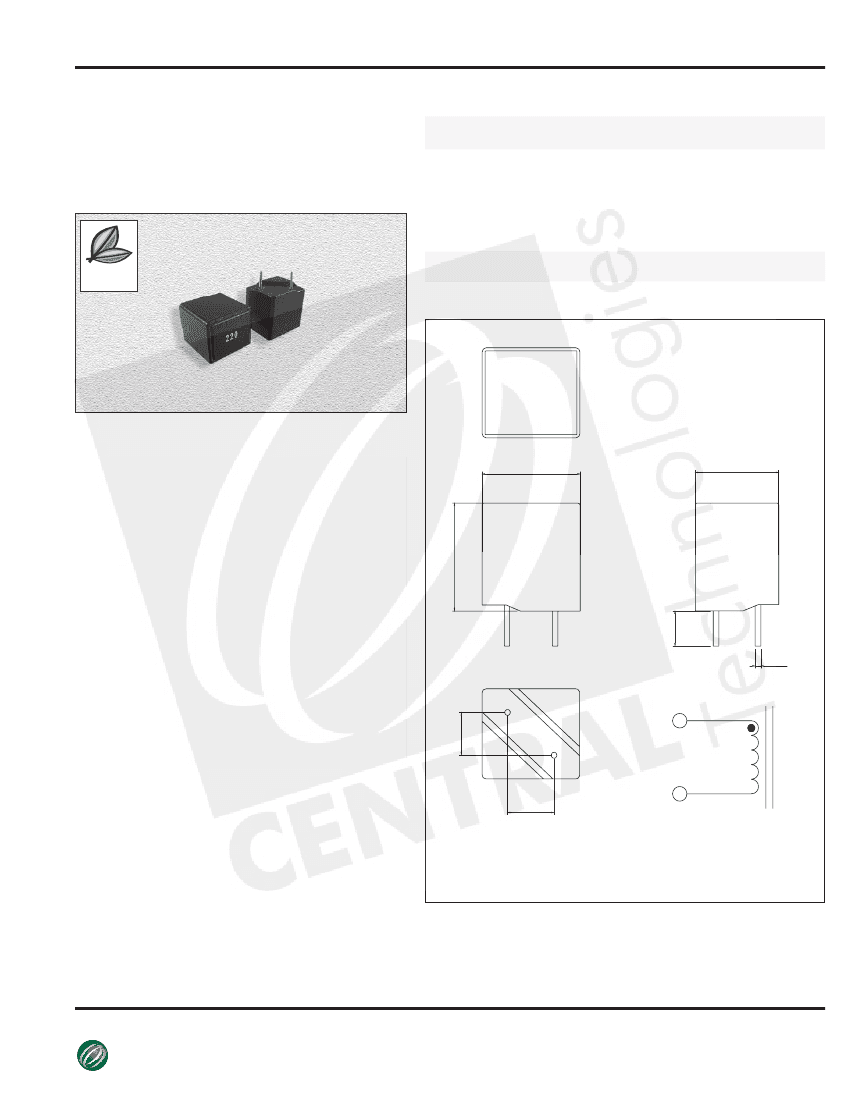

SPECIFICATIONS
CT1714F Series
From 10 µH to 33 µH
Not shown at actual size.
Part
Number
CT1714F-100M
CT1714F-150M
CT1714F-220M
CT1714F-330M
Inductance
±20%
(µH)
10
15
22
33
DCR
Typ.
Ω
(mΩ)
10.0
13.0
16.0
23.0
DCR
Max.
Ω
(mΩ)
13.0
17.0
20.0
25.0
Isat
Typ.
(A)
18
15
13
10
Irms
Typ.
(A)
11
10
8
6
Dim. “H”
Max.
(mm)
15.0
15.0
18.0
18.0
PHYSICAL DIMENSIONS
Compliant
RoHS
Size
mm
inches
A
Max.
18.0
0.709
B
Max.
15.5
0.610
C
5±1.0
0.197±0.039
D
1.0±0.1
0.039±0.004
E
7±0.5
0.276±0.02
F
8±0.5
0.315±0.02
MARKING
CHARACTERISTICS
Description:
DIP (shielded) power inductors
Applications:
Television sets, video, industrial & communication
equipment.
Operating Temperature:
-25°C to +125°C
Inductance Tolerance:
±20%
Testing:
Inductance tested at 10kHz, 0.1V
Packaging:
Bulk packaged
Marking:
Marked with inductance code
Isat:
The value of current indicates that inductance drops 20%
typ. from it’s initial value without DC current.
Irms:
The value of current indicates that the temperature of the
coil increases 40°C typ.
Features:
* Shielded construction
* High current rating up to 11Adc
* High frequency range up to 500kHz
* Very low DC resistance
* Low noise
Miscellaneous:
RoHS Compliant.
Samples available. See website for ordering information.
A
B
H
C
D
E
S
F
F
04.22.09
CENTRAL
Manufacturer of Passive Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2009 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
TECHNOLOGIES
