Cree
®
5-mm Round LED
Model # LC503FWH1-15Q-A0
Data Sheet
15-degree, 5-mm round LED lamp in white color with water-transparent lens and no stopper
Applications
•
•
•
Flashlight
LCD Backlight
Illuminations
Absolute Maximum Ratings (T
A
= 25°C)
Items
Forward Current
Peak Forward Current
Reverse Voltage
Power Dissipation
Operation Temperature
Storage Temperature
Lead Soldering Temperature
Note
Symbol
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
sol
Absolute Maximum Rating
25
100
5
100
-40 ~ +95
-40 ~ +100
Unit
mA
mA
V
mW
°C
°C
Max. 260°C for 3 sec. max.
(3 mm from the base of the epoxy bulb)
Note:
Pulse width ≤0.1 msec, duty ≤1/10.
Typical Electrical & Optical Characteristics (T
A
= 25°C)
Characteristics
Forward Voltage
Reverse Current
Luminous Intensity
Chromaticity
Coordinates
50% Power Angle
Symbol
V
F
I
R
I
V
x
y
2θ½H-H
Condition
I
F
= 20 mA
V
R
= 5 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
deg
Unit
V
μA
mcd
16800
24000
0.2877
0.2831
15
Minimum
Typical
3.2
Maximum
4.0
100
LD-CT207.001
Data Sheet: C
Subject to change without notice.
www.cree.com/ledlamps
1
Standard Bins for LC503FWH1-15Q-A0 (I
F
= 20 mA)
Lamps are sorted to luminous intensity (I
V
) and chromaticity coordinates (x,y) bins shown.
Orders for LC503FWH1-15Q-A0 may be filled with any or all bins contained as below.
All luminous intensity (I
V
) and chromaticity coordinates (x,y) values shown and specified are at I
F
= 20 mA.
Luminous Intensity (I
V
)
32900 mcd
Z4a or
above
Z3b
28200 mcd
Z3a
23500 mcd
Z2b
20150 mcd
Z2a
16800 mcd
Chromaticity Coordinates (x,y)
Rank
Chromaticity x
Coordinates y
Rank
Chromaticity x
Coordinates y
Rank
Chromaticity x
Coordinates y
0.2735
0.2860
0.2633
0.2410
0.2450
0.2290
A11
0.2545
0.2480
0.2633
0.2410
0.2545
0.2245
0.2633
0.2410
A12
0.2720
0.2340
0.2640
0.2200
0.2545
0.2245
0.2545
0.2480
A13
0.2640
0.2670
0.2720
0.2575
0.2633
0.2410
A14
0.2720
0.2575
0.2800
0.2480
0.2720
0.2340
0.2640
0.2670
A21
0.2735
0.2860
0.2808
0.2740
0.2720
0.2575
0.2720
0.2575
A22
0.2808
0.2740
0.2880
0.2620
0.2800
0.2480
A23
0.2830
0.3050
0.2895
0.2905
0.2808
0.2740
0.2808
0.2740
A24
0.2895
0.2905
0.2960
0.2760
0.2880
0.2620
0.2830
0.3050
B11
0.2950
0.3210
0.2998
0.3028
0.2895
0.2905
Copyright © 2007 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com/ledlamps
2
CLD-CT207.001
Rank
Chromaticity x
Coordinates y
Rank
Chromaticity x
Coordinates y
0.3070
0.3370
0.2895
0.2905
B12
0.2998
0.3028
0.3045
0.2865
0.2960
0.2760
0.2950
0.3210
B13
0.3070
0.3370
0.3100
0.3150
0.300
0.3030
0.3000
0.3030
B14
0.3100
0.3150
0.3130
0.2970
0.3050
0.2870
B21
0.3190
0.3490
0.3200
0.3270
0.3100
0.3150
0.3100
0.3150
B22
0.3200
0.3270
0.3220
0.3080
0.3130
0.2970
0.3190
0.3490
B23
0.3300
0.3600
0.3300
0.3390
0.3200
0.3270
Rank
Chromaticity x
Coordinates y
0.3200
0.3270
B24
0.3300
0.3390
0.3300
0.3180
0.3220
0.3080
Forward Voltage (VF)
Rank
Voltage
V7
2.8-3.0V
V8
3.0-3.2V
V9
3.2-3.4V
V10
3.4-3.6V
V11
3.6-3.8V
V12
3.8-4.0V
Important Notes:
1. All ranks will be included per delivery; rank ratio will be based on the dice distribution.
2. Pb content <1000 ppm.
3. Tolerance of measurement of luminous intensity is ±15%.
4. Tolerance of measurement of the color coordinates is ±0.01.
5. Tolerance of measurement of V
F
is ±0.05 V.
6. Packaging methods are available for selection; please refer to the “Cree LED Lamp Packaging Standard” docu-
ment.
7. Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.
8.
Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED
product safely.
Copyright © 2007 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com/ledlamps
3
CLD-CT207.001
CIE Chromaticity Diagram
0.39
0.35
B1
B2
B23
B21
B24
B13
B11
B22
B14
0.31
A2
A23
B12
A24
0.27
A1
A13
y
A21
A22
A14
0.23
0.19
0.15
A11
A12
0.15 0.19
0.23
0.27
x
0.31
0.35
0.39
Copyright © 2007 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com/ledlamps
4
CLD-CT207.001

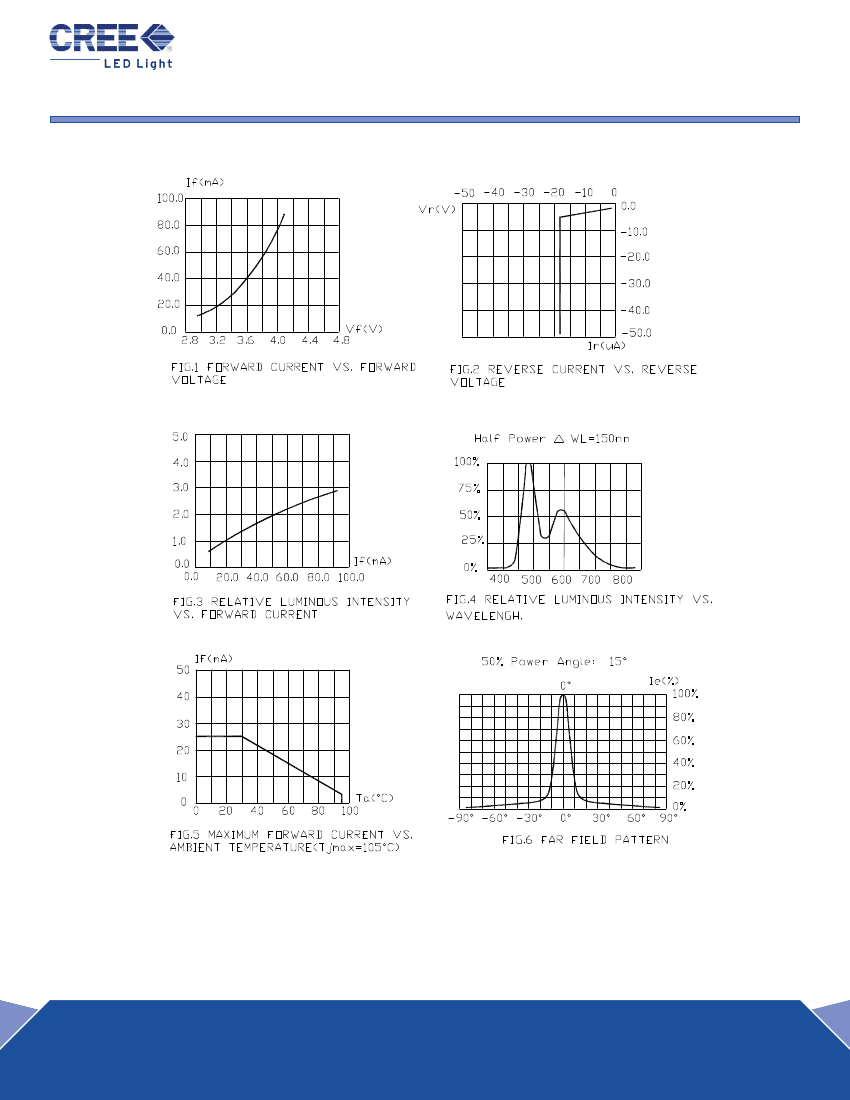

Graphs
Document No. SPE/LC503FWH1-15Q-A0
Rev. No.
00(preliminary)
Graphs
Items
Prepared by
Checked by
Approved by
FCN#
Signatures
WangFJ
ChenDu
David
Date
2007-12-27
2007-12-27
2007-12-27
Rev. No
Date
Revision History
Change Description
Copyright © 2007 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
FCN20070333
Data is subject to change without prior notice.
5
