Preview

BK/ATC-5: DescriptionElectric Fuse, Fast Blow, 5A, 32VDC, Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size97KB，1 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

BK/ATC-5 Overview

Electric Fuse, Fast Blow, 5A, 32VDC, Inline/holder, ROHS COMPLIANT

BK/ATC-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000 A
Fusing characteristics	FAST
body width	5.25 mm
body height	12.5 mm
Body length or diameter	19.3 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	ATC
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	19.3mm x 5.25mm x 12.5mm
Rated current	5 A
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE

Preview

Download Datasheet

View All

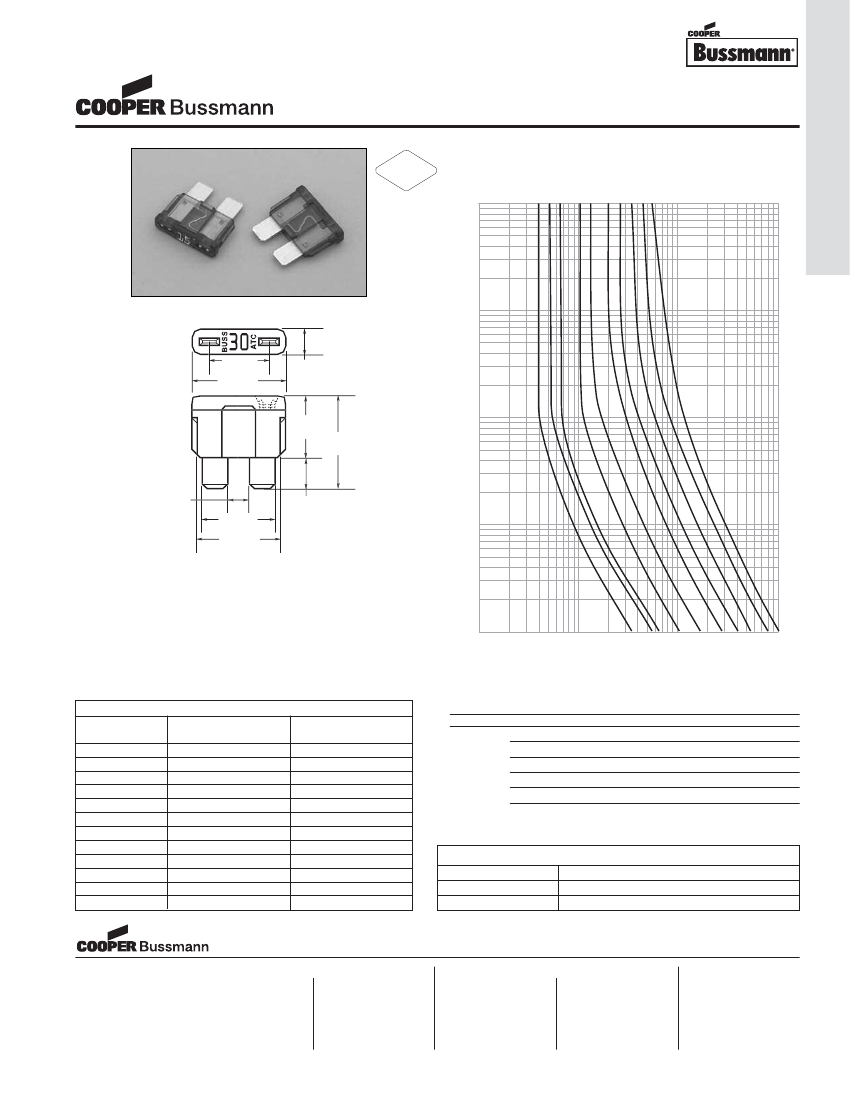

Blade-Type Automotive Fuses

ATC Series, Fast Acting

RoHS

2002/95/EC

Automotive Fuses - Blade

Time-Current Characteristic Curves–Average Melt

AMPERE

RATING

3

4

5

100

7.5

10

15

20

25

30

40

10

100

Dimensional Data

10

11.7mm

.460”

19.3mm

93

.760”

5.25mm

.207”

TIME IN SECONDS

12.5mm

.5m

.492”

1

19.1mm

1m

.752”

4.13mm

.163”

14.6mm

.575”

16.7mm

.657”

6.67mm

.263”

.1

Catalog Symbol:

ATC

Fast-Acting

Ampere Rating:

1 to 40 Amperes

Interrupting Rating:

1,000 Amperes

Agency Approvals:

U.L. Recognized, (3-40A)

Guide JFHR2, File E56412

Ordering:

Specify packaging and product code

1

CURRENT IN AMPERES

SPECIFICATIONS

Product

Code

ATC-1

ATC-2

ATC-3

ATC-4

ATC-5

ATC-7 1/2

ATC-10

ATC-15

ATC-20

ATC-25

ATC-30

ATC-40

Body

Color

Black

Gray

Violet

Pink

Tan

Brown

Red

Blue

Yellow

Clear

Green

Amber

Voltage

Rating DC

32V

Recommended Bussmann Fuseholders*

Blade-Type

Part

HHC

HHF

ATC

HHD

HHG

HHD-C

Description

Yellow Fuseholder

Black Fuseholder w/cover

Black Fuseholder

Black Fuseholder w/cover

Cover Only

Fuse Size

3-20 Amps

3-30 Amps

—

Wire Size

#16 Lead Wire

#14 Lead Wire

#12 Lead Wire

—

*Also used in Bussmann 1A5600 Fuse Clips (0-20A)

PACKAGING CODE

Packaging Code

Blank

BK

Description

5 pieces of fuses packed in a tin

2,000 pieces of fuses packed in a carton

Visit us on the web at:

www.cooperbussmann.com

North America

Cooper Electronic Technologies Cooper Bussmann

1225 Broken Sound Parkway NW P.O. Box 14460

St. Louis, MO 63178-4460

Suite F

Tel: 1-636-394-2877

Boca Raton, FL 33487-3533

Fax: 1-800-544-2570

Tel: 1-561-998-4100

Fax: 1-561-241-6640

Toll Free: 1-888-414-2645

Europe

Cooper Electronic Technologies Cooper Electronic Technologies

Avda. Santa Eulalia, 290

Cooper (UK) Limited

08223

Burton-on-the-Wolds

Terrassa, (Barcelona), Spain

Leicestershire • LE12 5TH UK

Tel: +34 937 362 812

Tel: +44 (0) 1509 882 737

+34 937 362 813

Fax: +44 (0) 1509 882 786

Fax: +34 937 362 719

Asia Pacific

Cooper Electronic Technologies

1 Jalan Kilang Timor

#06-01 Pacific Tech Centre

Singapore 159303

Tel: +65 278 6151

Fax: +65 270 4160

OC-93

1,000

.01
