BK/ATC-71/2: DescriptionFAST BLOW ELECTRIC FUSE, 7.5A, 32VDC, INLINE/HOLDER, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size198KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/ATC-71/2 Overview

FAST BLOW ELECTRIC FUSE, 7.5A, 32VDC, INLINE/HOLDER, ROHS COMPLIANT

BK/ATC-71/2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000 A
Fusing characteristics	FAST
body width	5.25 mm
body height	12.5 mm
Body length or diameter	19.3 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	ATC
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	19.3mm x 5.25mm x 12.5mm
Rated current	7.5 A
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE

Preview

Download Datasheet

View All

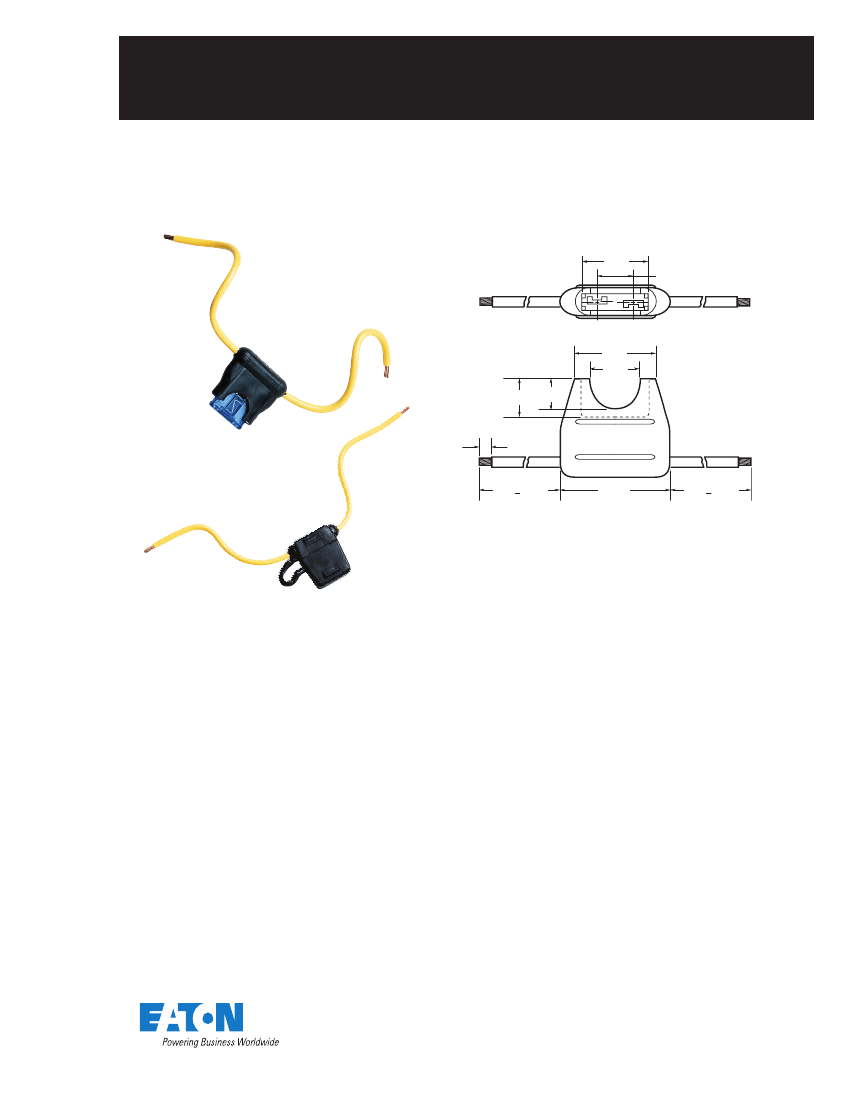

Technical Data 2107

Effective June 2016

Supersedes January 2003

BUSSMANN

SERIES

Automotive in-line fuse holders for

ATC® blade fuses

Dimensions - in:

0.78"

0.364"

0.91"

0.5"

0.38" 0.30"

HHD

0.25"

4.0"

0.25"

1.125"

4.0" + 0.25"

Specifications:

Ratings

HHG

•

Volts - 32 V maximum

Amps

HHC 3-20 A

HHD 3-30 A

HHF 3-20 A

HHG 3-30 A

Catalog symbols:

•

HHC

HHD

HHF

HHG

Agency information

•

Wire meets UL

3266

Meets SAE J2030 heavy duty electrical

connector performance standard

Description:

In-line fuse holders for ATC blade fuses.

Features:

•

Insulation body: Santoprene TPV

Wire

•

HHC - 26 strand tin-plated

HHD - 65 strand copper, no plating

HHF - 26 strand tin-plated

HHG - 65 strand tin-plated

•

Contact material: Brass, tin-plated

BK/ATC-71/2 Related Products

	BK/ATC-71/2
Description	FAST BLOW ELECTRIC FUSE, 7.5A, 32VDC, INLINE/HOLDER, ROHS COMPLIANT
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000 A
Fusing characteristics	FAST
body width	5.25 mm
body height	12.5 mm
Body length or diameter	19.3 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	ATC
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	19.3mm x 5.25mm x 12.5mm
Rated current	7.5 A
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE
