FOL1402PJX-417 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FOL1402PJX-417

FOL1402PJX-417: DescriptionPump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14; CategoryWireless rf/communication Optical fiber; File Size135KB，5 Pages; ManufacturerFurukawa Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

FOL1402PJX-417 Overview

Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14

FOL1402PJX-417 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Furukawa Electric Co., Ltd.
package instruction	BUTTERFLY
Reach Compliance Code	unknown
body width	15.2 mm
body height	7.8 mm
Body length or diameter	20.8 mm
Built-in features	ISOLATOR, TEC, THERMISTOR
Communication standards	TELCORDIA-GR-468
Fiber optic equipment types	PUMP LASER MODULE EMITTER
Fiber type	PMF
Installation features	PANEL MOUNT
Number of channels	1
Maximum operating wavelength	1490 nm
Minimum operating wavelength	1460 nm
Nominal operating wavelength	1475 nm
Package form	BUTTERFLY
Spectral width	8 nm
surface mount	NO
Transmission type	DIGITAL

Preview

Download Datasheet

View All

Data Sheet

FOL14xx Series

Feb. 2010

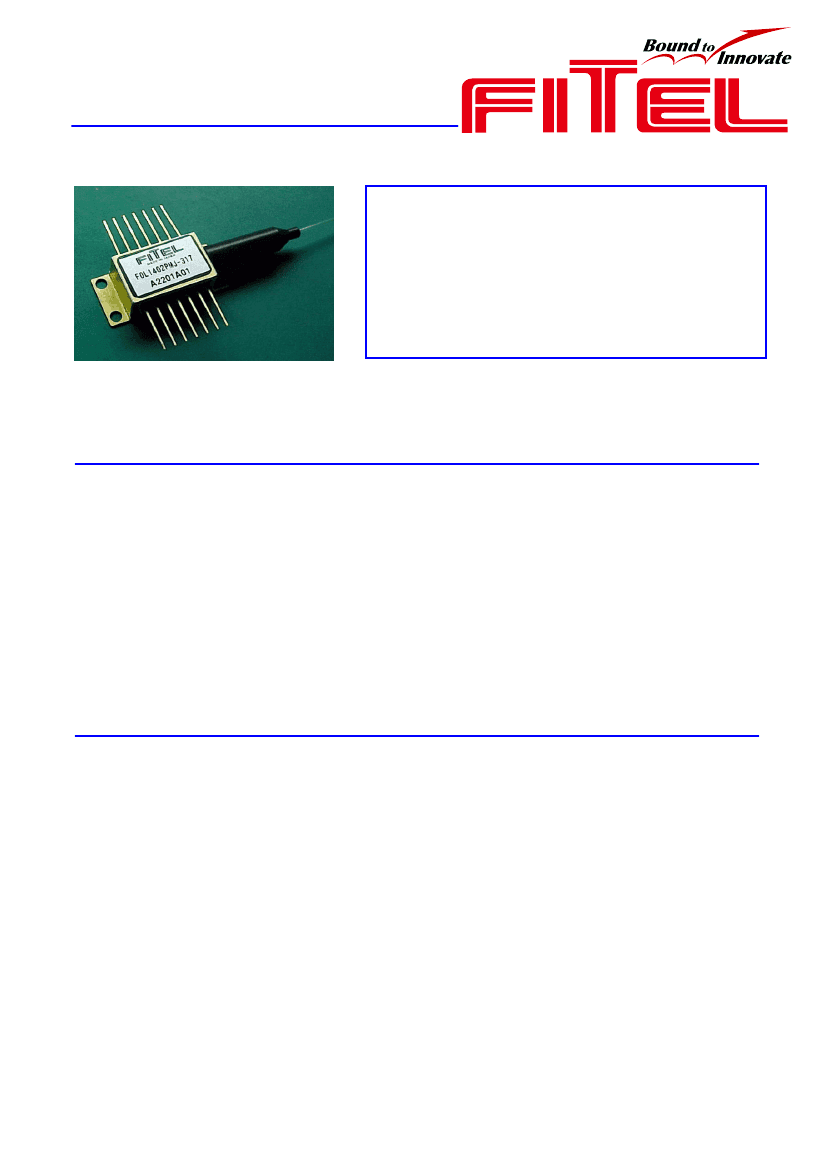

1480 / 14xx-nm Pump Laser Diode Module

Applications



Pump Source for Er-Doped Fiber

Amplifier



C- and/or L-Band EDFA



Single Channel Amp to DWDM Amp



Pump Source for Raman Amplifier

Product Type :

FOL1402P/1404Q/1405R/1425R Series

Descriptions



The FOL14xx series has been designed for use in a wide variety of optical amplifier,

such as EDFA or Raman Amplifier used in optical transmission systems, especially in

dense wavelength-division-multiplexing (DWDM) systems.



A strained multi-quantum well laser diode chip is integrated with thermo-electric cooler

(TEC), thermistor and PIN photodiode in a hermetically sealed 14 pin butterfly package.



A 2-lens-system couples a round shape light from the laser chip efficiently to the fiber

and enables the output power up to 400 mW.



This laser module complies with telecom requirements described in Telcordia

GR-

468 requirement and manufactured in an ISO

9001 certified production line.

Features



Rated output power up to 400 mW (CW)

Widely deployed reliable package design with industry compatible 14 pin butterfly

footprint

Internal Thermo-electric cooler (TEC) and Thermistor for stable operation

Integrated PIN photodiode for back facet monitor

Internal optical Isolator (optional)

Single mode fiber and Polarization maintaining fiber pigtail

Wavelength stabilization available with external FBG (optional)

Epoxy free design inside the module for long term reliability

EU RoHS compliant

(Exemption 7b applied)

ODC-9A001B

1/5

FOL1402PJX-417 Related Products

	FOL1402PJX-417	FOL1402PLF-317	FOL1402PMH-317	FOL1404QQO-417	FOL1404QQO-317	FOL1405RSB-617-1455	FOL1405RSA-617-1455	FOL1404QPM-317
Description	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1419nm Min, 1512nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1419nm Min, 1512nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14	Pump Laser Module Emitter, 1460nm Min, 1490nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETICALLY SEALED, PACKAGE-14
Maker	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.
package instruction	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm
body height	7.8 mm	7.8 mm	7.8 mm	7.8 mm	7.8 mm	7.8 mm	7.8 mm	7.8 mm
Body length or diameter	20.8 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm
Built-in features	ISOLATOR, TEC, THERMISTOR	ISOLATOR, TEC, THERMISTOR	ISOLATOR, TEC, THERMISTOR	ISOLATOR, TEC, THERMISTOR	ISOLATOR, TEC, THERMISTOR	TEC, THERMISTOR	TEC, THERMISTOR	ISOLATOR, TEC, THERMISTOR
Communication standards	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468
Fiber optic equipment types	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER	PUMP LASER MODULE EMITTER
Fiber type	PMF	SMF	SMF	PMF	SMF	PMF	PMF	SMF
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of channels	1	1	1	1	1	1	1	1
Maximum operating wavelength	1490 nm	1490 nm	1490 nm	1490 nm	1490 nm	1512 nm	1512 nm	1490 nm
Minimum operating wavelength	1460 nm	1460 nm	1460 nm	1460 nm	1460 nm	1419 nm	1419 nm	1460 nm
Nominal operating wavelength	1475 nm	1475 nm	1475 nm	1475 nm	1475 nm	1455 nm	1455 nm	1475 nm
Package form	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY
Spectral width	8 nm	8 nm	8 nm	8 nm	8 nm	3 nm	3 nm	8 nm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Transmission type	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	-	conform to
