TC-200-CFF-416B-311.04MHZ: DescriptionTemperature Compensated Crystal Oscillators; CategoryPassive components oscillator; File Size107KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

TC-200-CFF-416B-311.04MHZ Overview

Temperature Compensated Crystal Oscillators

TC-200-CFF-416B-311.04MHZ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	compli
Other features	COMPLEMENTARY PECL OUTPUT
Ageing	10 PPM/10 YEAR
maximum descent time	0.4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	4.1%
Manufacturer's serial number	TC-200
Installation features	SURFACE MOUNT
Nominal operating frequency	311.04 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL
physical size	30.48mm x 25.4mm x 6.35mm
longest rise time	0.4 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

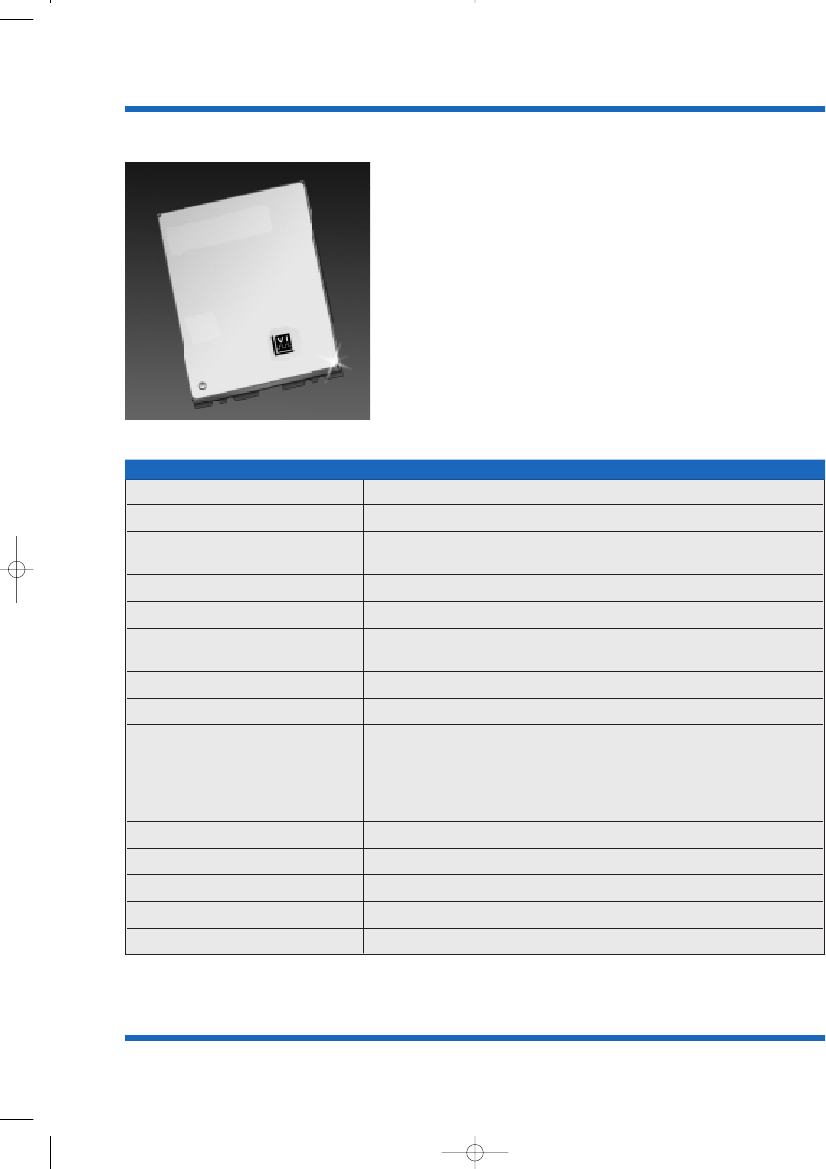

Temperature Compensated Crystal Oscillators (TCXO’s)

TC-200

Description:

Vectron International has introduced a series of low jitter

complementary PECL TCXO’s for use in SONET Minimum Clock

(SMC) applications and is available in Output frequencies from

311.04 MHz to 777.6 MHz.

0

C-20

T

Features:

•

True SONET Minimum performance

Ultra low Jitter

3.3 Vdc or 5 Vdc operation

Complementary PECL output

Performance Characteristics

Parameter

Frequencies:

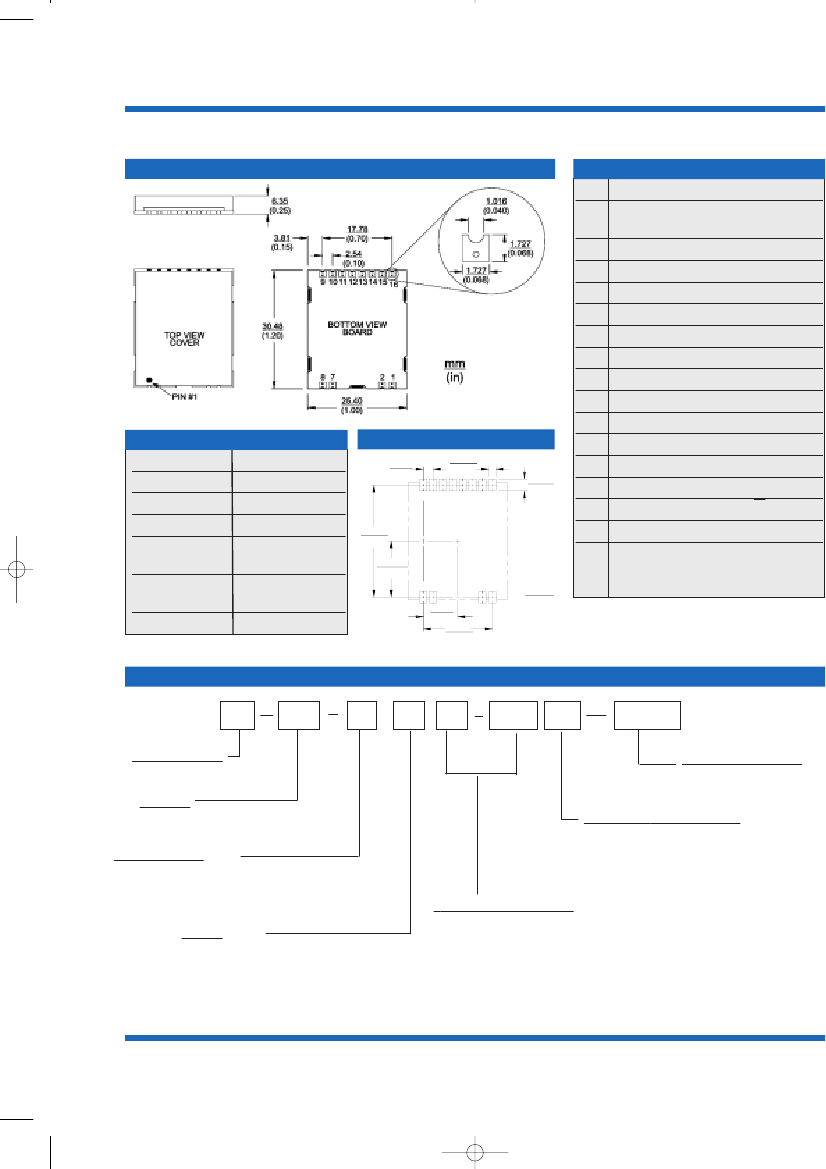

Package Size:

Supply Voltage (Vcc):

(other options are available upon request)

Characteristics

311.04 MHz to 777.6 MHz

30.48 x 25.4 x 6.35 mm (1.2” x 1.0” x 0.25”)

C

= 5.0 Vdc ±5%

D

= 3.3 Vdc ±5%

<200 mA

Complementary PECL

Voh (“1”) = Vcc

Vol (“0”) = Vcc - 1.63 V max

<400 ps (20% to 80%)

50/50 ±5% @ Vcc - 1.3 V

C-416

- ±4.1 ppm over 0

o

C to +70

o

C (per GR-253-CORE : R5-126)

F-416

- ±4.1 ppm over -40

o

C to +85

o

C (per GR-253-CORE : R5-126)

NOTE:

Tighter stabilities and wider temperature ranges are available,

please consult the factory.

Current:

Output:

Output Level (@ +25°C):

Rise/Fall Time:

Symmetry (Duty Cycle):

Temperature Stability:

Initial Accuracy @ +25°C:

Aging:

Jitter Generation:

Frequency vs. Supply:

Electrical Frequency Adjust:

B

±5 ppm max after reflow, Total Stability <20 ppm All Causes.

<10 ppm for ten years

<1 ps rms from 12 kHz to 80 MHz

<±0.2 ppm for a ±5% change in supply voltage

A

±40 ppm min., 0 to Vcc, positive slope (per GR-253-CORE: R5-129)

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com
