BSTP3580 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BSTP3580

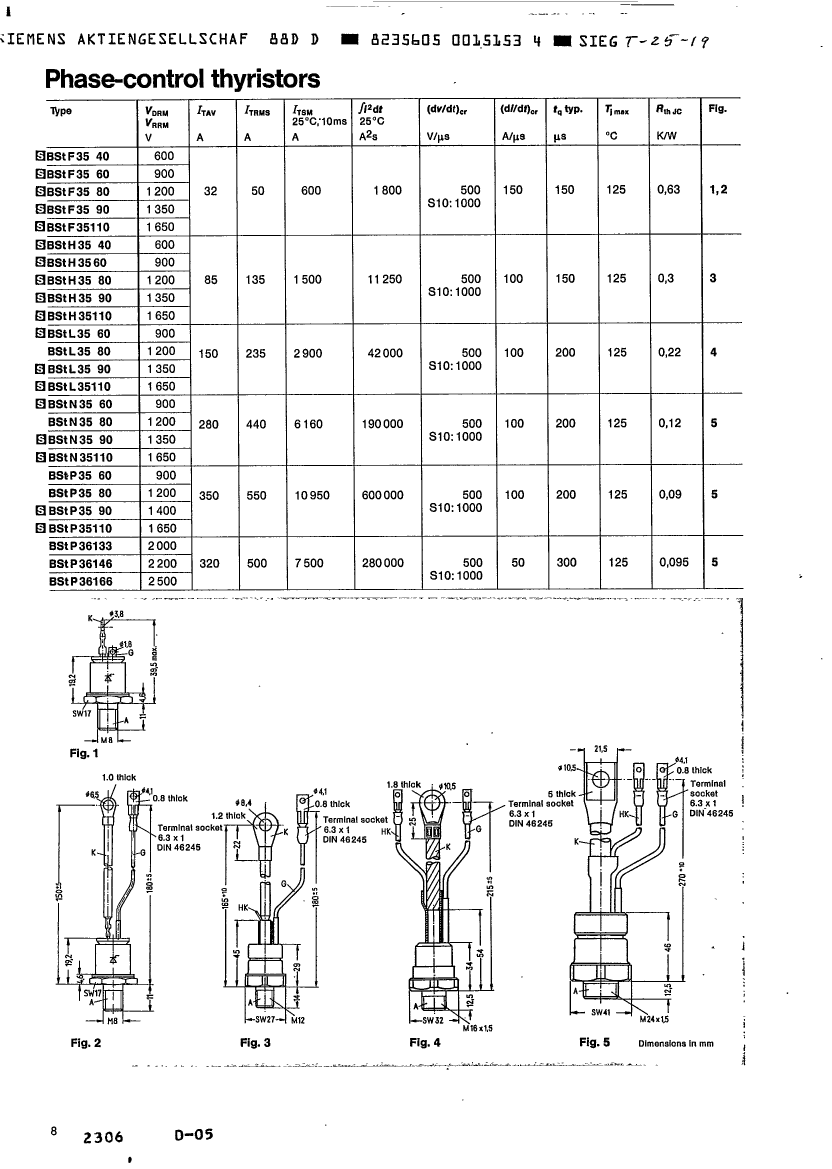

BSTP3580: DescriptionSilicon Controlled Rectifier, 550000mA I(T), 1200V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size92KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BSTP3580 Overview

Silicon Controlled Rectifier, 550000mA I(T), 1200V V(DRM),

BSTP3580 Parametric

Parameter Name	Attribute value
Maker	Infineon
Reach Compliance Code	compliant
ECCN code	EAR99
Nominal circuit commutation break time	200 µs
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	250 mA
Maximum leakage current	40 mA
On-state non-repetitive peak current	9900 A
Maximum on-state current	550000 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	1200 V
surface mount	NO
Trigger device type	SCR

Preview

Download Datasheet

View All

BSTP3580 Related Products

	BSTP3580	BSTL3560	BSTL35110	BSTP3560	BSTP36166	BSTP36146	BSTP35110	BSTP3590	BSTP36133
Description	Silicon Controlled Rectifier, 550000mA I(T), 1200V V(DRM),	Silicon Controlled Rectifier, 150000mA I(T), 900V V(DRM),	Silicon Controlled Rectifier, 235000mA I(T), 1600V V(DRM),	Silicon Controlled Rectifier, 350000mA I(T), 900V V(DRM),	Silicon Controlled Rectifier, 500000mA I(T), 2500V V(DRM),	Silicon Controlled Rectifier, 500000mA I(T), 2200V V(DRM),	Silicon Controlled Rectifier, 550000mA I(T), 1600V V(DRM),	Silicon Controlled Rectifier, 350000mA I(T), 1300V V(DRM),	Silicon Controlled Rectifier, 500000mA I(T), 2000V V(DRM),
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us	200 V/us	200 V/us	500 V/us	500 V/us	200 V/us
Maximum DC gate trigger current	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	2.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum leakage current	40 mA	15 mA	15 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA
On-state non-repetitive peak current	9900 A	2900 A	2600 A	10000 A	6900 A	6900 A	9800 A	10000 A	6900 A
Maximum on-state current	550000 A	150000 A	235000 A	350000 A	500000 A	500000 A	550000 A	350000 A	500000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	1200 V	900 V	1600 V	900 V	2500 V	2200 V	1600 V	1300 V	2000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	Infineon	-	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
