HLMP-D150-C00B2 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMP-D150-C00B2

HLMP-D150-C00B2: DescriptionT-1 3/4 SINGLE COLOR LED, DEEP RED, 5mm, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size257KB，9 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HLMP-D150-C00B2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMP-D150-C00B2	-	-	View	Buy Now

HLMP-D150-C00B2 Overview

T-1 3/4 SINGLE COLOR LED, DEEP RED, 5mm, PLASTIC PACKAGE-2

HLMP-D150-C00B2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Samacsys Description	Standard LEDs - Through Hole Lamp 5mm LC AlGaAs
Other features	CMOS COMPATIBLE
color	DEEP RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	1.8 V
JESD-609 code	e3
Lens type	TINTED DIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.81 mm
method of packing	BULK
peak wavelength	645 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin (Sn)
Terminal pitch	2.54 mm

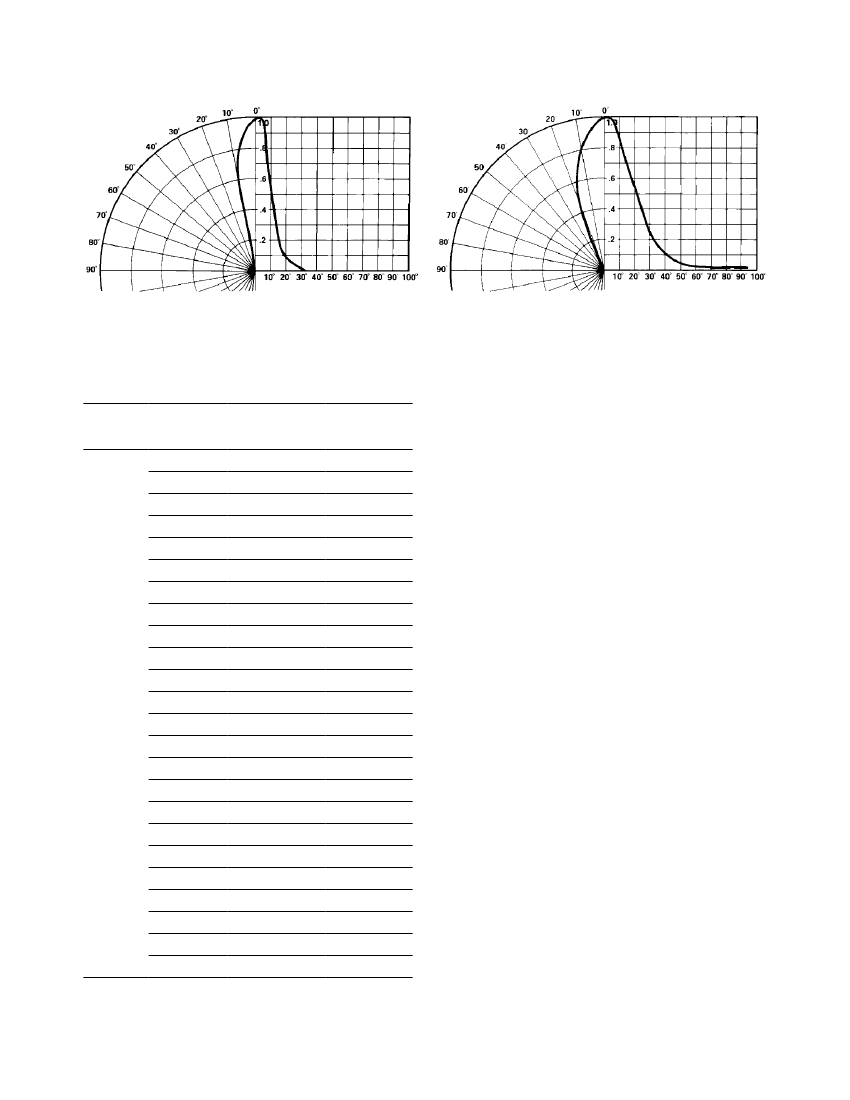

perspective	65 deg

Preview

Download Datasheet

View All

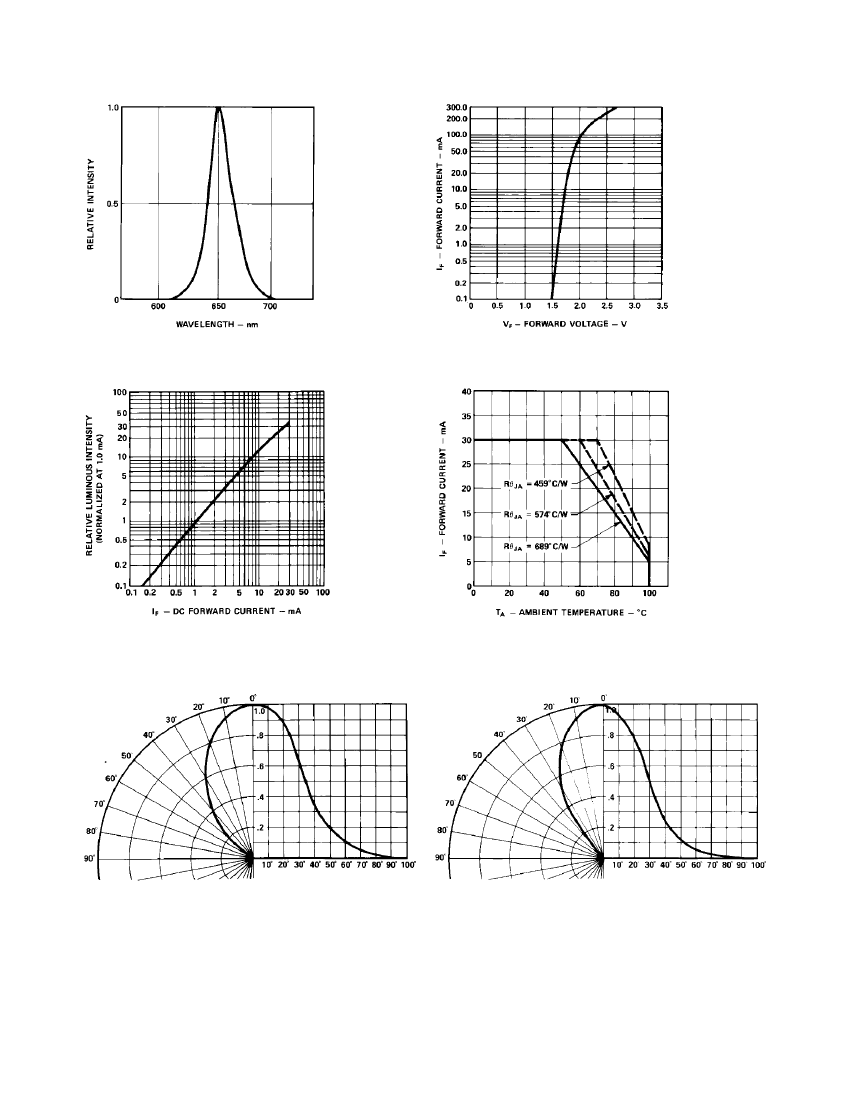

HLMP-D150, HLMP-D155, HLMP-K150 and HLMP-K155

T-13/4 (5 mm), T-1 (3 mm), Low Current,

Double Heterojunction AlGaAs Red LED Lamps

Data Sheet

Description

These solid state LED lamps utilize double heterojunction

(DH) AlGaAs/GaAs material technology. This LED material

has outstanding light output efficiency at very low drive

currents. The color is deep red at the dominant wave-

length of 637 nanometres. These lamps are ideally suited

for use in applications where high light output is required

with minimum power output.

Features

•

Minimum luminous intensity specified at 1 mA

•

High light output at low currents

•

Wide viewing angle

•

Outstanding material efficiency

•

Low power/low forward voltage

•

CMOS/MOS compatible

•

TTL compatible

•

Deep red color

Applications

•

Low power circuits

•

Battery powered equipment

•

Telecommunication indicators

Package Dimensions

5.08 (0.200)

4.57 (0.180)

5.08 (0.200)

4.57 (0.180)

0.89 (0.035) 9.19 (0.362)

0.64 (0.025) 8.43 (0.332)

3.17 (.125)

2.67 (.105)

3.43 (.135)

2.92 (.115)

4.70 (.185)

4.19 (.165)

9.19 (0.362)

8.43 (0.332)

0.89 (0.035)

0.64 (0.025)

0.65 (0.026) MAX.

12.44 (0.490)

11.68 (0.460)

1.14 (.045)

0.51 (.020)

CATHODE

25.40 (1.00)

MINIMUM

1.32 (0.052)

1.02 (0.040)

23.0 MIN.

(0.90)

6.35 (.250)

5.58 (.220)

0.65 (0.026) max.

0.46 (0.018)

SQUARE NOMINAL

24.1(.95) min.

1.52 (.060)

1.02 (.040)

0.55 (0.022)

0.40 (0.016)

1.27(0.050)

NOM.

SQ. TYP.

1.27 (0.050)

NOM.

CATHODE

6.1 (0.240)

5.6 (0.220)

2.54 (0.100)

NOM.

6.10 (0.240)

5.59 (0.220)

2.79 (.110)

2.29 (.090)

(0.022) 0.55 SQ. TYP.

(0.016) 0.40

2.54 (0.100) NOM.

Notes:

1. All dimensions are in mm (inches).

2. An epoxy meniscus may extend about 1 mm (0.040") down the leads.

3. For PCB hole recommendations, see the Precautions section.
