D2SB20 ........ D2SB80
1.5 Amp. Glass Passivated Bridge Rectifiers
Dimensions in mm.
GBL
Voltage
200 V to 800 V
Current
1.5 A
C2.5
20.3
19.7
3.70
3.30
11.3
10.7
2.70
2.30
1.70
1.30
1.10
0.90
2.70
2.30
14.0
13.0
1.20
0.80
0.60
0.40
• Glass passivated chip junction
• Ideal for printed circuit board
• High case dielectric strength
• Plastic material has Underwriters Laboratory
Flammability Classification 94V-0
• Typical IR less than 0.1µA
• High surge current capability
• High temperature soldering guaranteed:
260 °C / 10 seconds / 9.5mm, lead lengths.
MECHANICAL DATA
• Case: Molded plastic body.
• Terminals: Pure tin plated, Lead free, leads
solderable per MIL-STD-750, Method 2026.
• Weight: 0.071 ounce, 2.0 grams
• Mounting position: Any
1
2
3
4
5.20 5.20 5.20
4.80 4.80 4.80
1
2
3
4
Maximum Ratings and Electrical Characteristics at 25 ºC
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
T
j
T
stg
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
@ T
A
= 50 °C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC Method)
Rating for fusing (t<8.3 ms)
(t<10 ms)
Operating Temperature Range
Storage Temperature Range
D2SB
20
200
140
200
D2SB
40
400
280
400
1.5 A
80 A
27 A
2
sec
32 A
2
sec
-55 to +150 °C
-55 to +150 °C
D2SB
60
600
420
600
D2SB
80
800
560
800
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-a)
R
th (j-l)
Note: 1. Units Mounted In Free Air No Heat Sink On P.C.B. 12 x 12mm Copper Pads,
9.5mm Lead Length.
Maximum Instantaneous Forward Voltage
@ = 0.75 A
Maximum DC Reverse Current @ T
A
= 25 °C
at Rated DC Blocking Voltage @ T
A
=125°C
Typical Thermal Resistance Per Leg (Note)
1.05 V
10 µA
500 µA
47 °C/W
10 °C/W
Sep - 08
D2SB20 ........ D2SB80

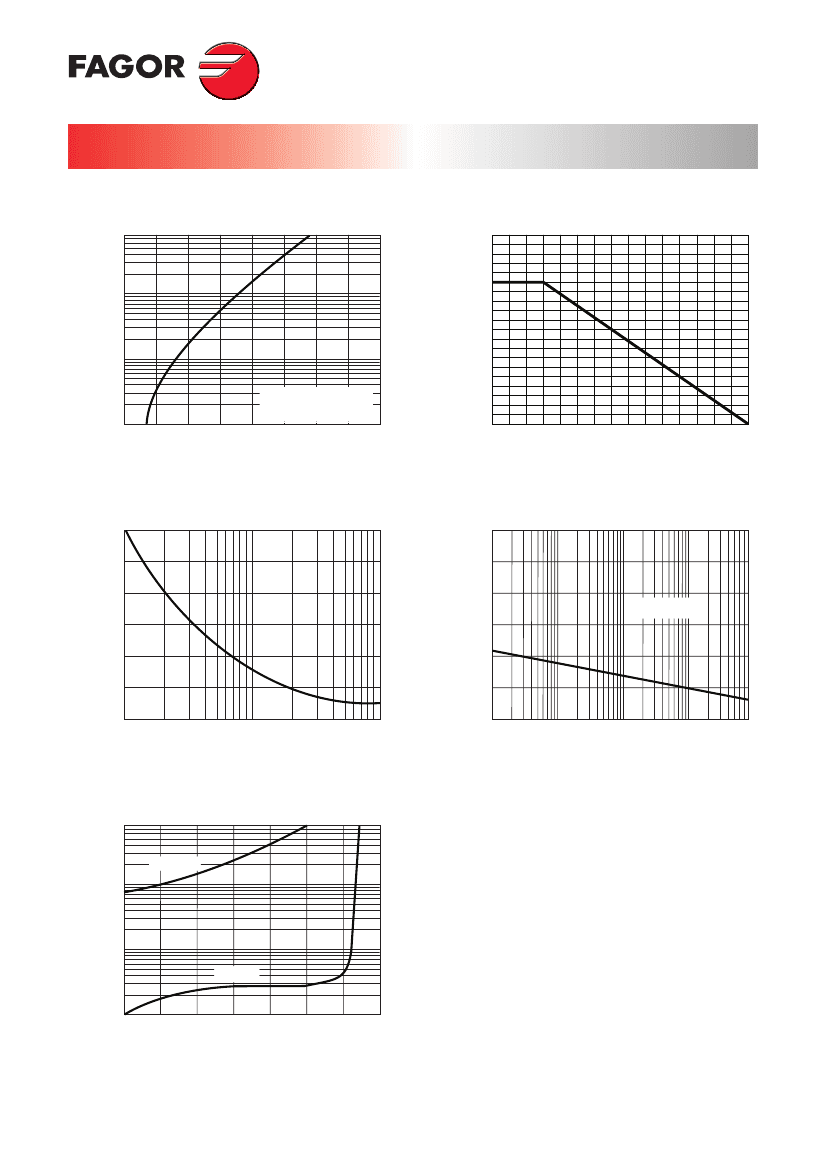

Rating And Charasterictic Curves
TYPICAL FORWARD CHARACTERISTICS
PER BRIDGE ELEMENT
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F
, instantaneous forward current (A)
I
F(AV)
, average forward current (A)
10
2.0
1
1.5
1.0
0.1
T
j
= 25 °C
PULSE WIDTH = 300 µs
1% DUTY CYCLE
0.5
0.01
0.6
0
0
20
40
60
80
100
120
140 150
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
V
F
, instantaneous forward voltage (V)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER BRIDGE ELEMENT
Tamb, ambient temperature (°C)
I
FSM
, peak forward surge current (A)
TYPICAL JUNCTION CAPACITANCE
600
70
60
50
40
30
20
1
2
4
6
10
20
40 60 100
Cj, junction capacitance (pF)
80
500
400
T
j
= 25 °C
300
200
100
0
0.1
0.5 1
2
5
10 20
50 100 200
800
Number of cycles at 60Hz
TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
100
T
j
= 125 °C
V
R
, reverse voltage (V)
I
R
, Instantaneous reverse current (µA)
10
1
T
j
= 25 °C
0.1
0
20
40
60
80
100
120
140
Percent of rated peak reverse voltage (%)
Sep - 08
