B4P-VH-BL(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> B4P-VH-BL(LF)(SN)

B4P-VH-BL(LF)(SN): DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size107KB，4 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

B4P-VH-BL(LF)(SN) Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B4P-VH-BL(LF)(SN) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

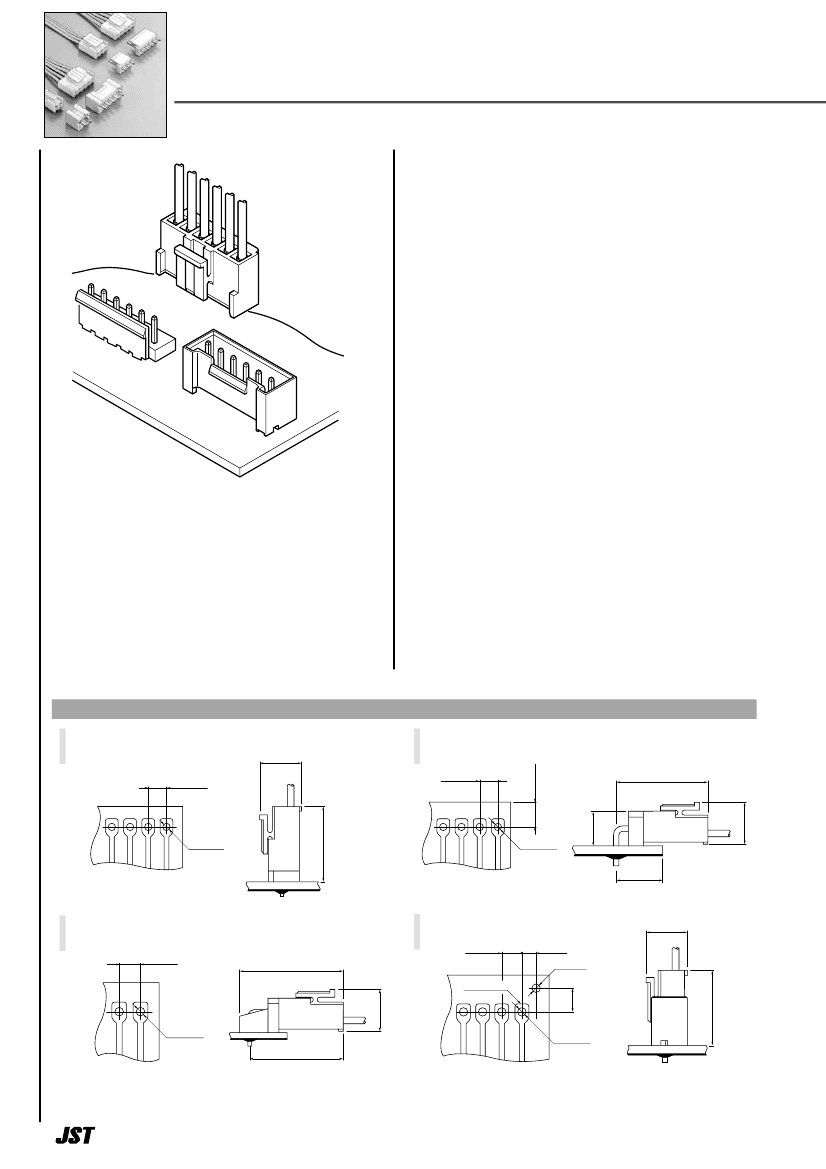

CONNECTOR

3.96mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 10 A AC, DC (AWG #16)

• Voltage rating: 250 V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 10 mΩ max.

After environmental tests/ 20 mΩ max.

• Insulation resistance: 1,000 MΩ min.

• Withstanding voltage: 1,500 VAC/minute

• Applicable wire: AWG #22 to #16

• Applicable PC board thickness: 1.6 mm

Note:

Do not branch in parallel current which exceeds the rated current. If branched in

parallel, current imbalance or other problems may develop. If it is absolutely

necessary to branch such a large current in parallel, be sure to use contacts

made of phosphor bronze. Design the circuits without causing imbalance and

provide an extra margin for each circuit.

This small, field-proven connector for

printed circuit boards is reliable and has a

large current carrying capacity. It can be

used with a wide variety of signal, power

supply, and output circuits that appear in

consumer electronic products.

• Proven box contact

• Compact connector with a large capacity

• Secure contact and mounting

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

Standards–––––––––––––––––––––––

Certified LR20812

R75122

Recognized E60389

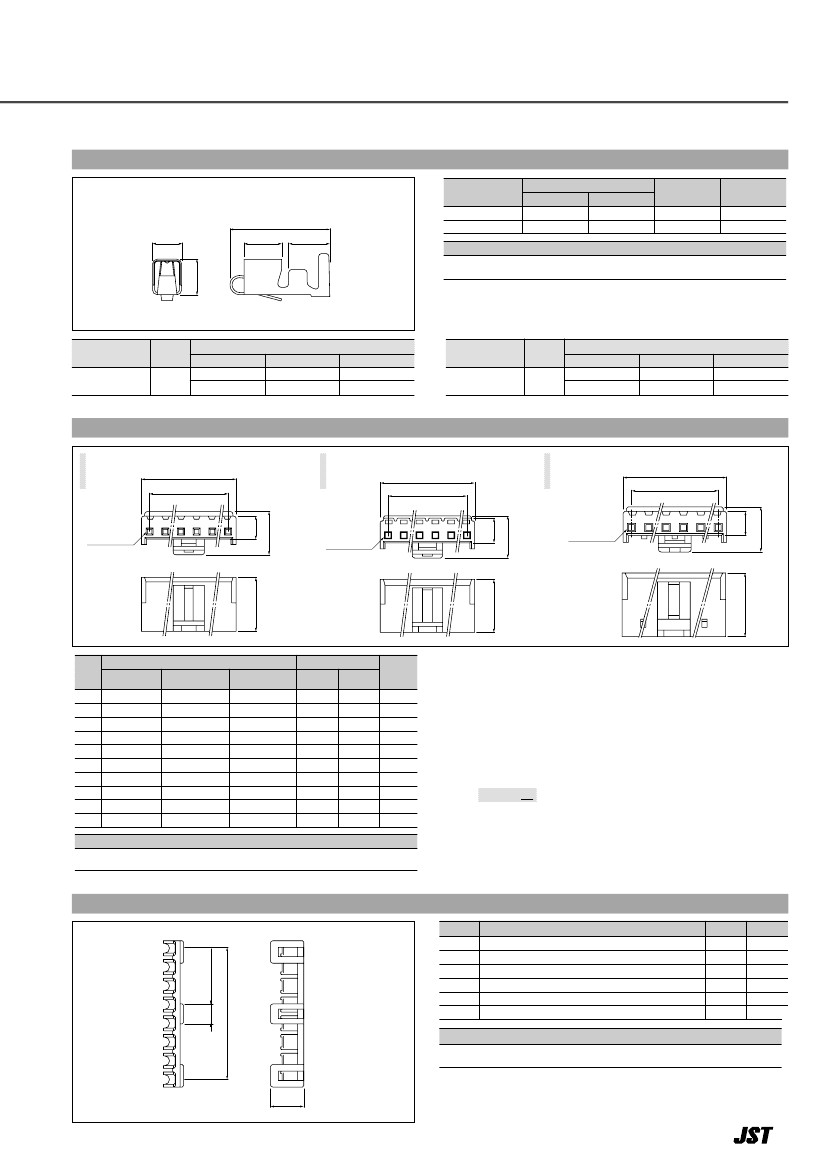

PC board layout and Assembly layout

Locking header

Top entry type

3.96

±0.05

10.5

Locking header

Side entry type

3.96

±0.05

* 7.2

min

(20.5)

＋0.1

φ1.65

(16.5)

φ1.65

＋0.1

* 7.2

min

*11.0 max. when used with the VR connector receptacle.

Locking header

Side entry type with PCB stabilizer

3.96

±0.05

(21)

Shrouded header

3.96

±0.05

1.5

±0.05

φ1.4

Circuit

No.1

10.5

＋0.1

10.5

3.4

±0.05

φ1.65

＋0.1

φ1.65

＋0.1

Note: 1. The above figure is the figure viewed from soldering side.

2. Tolerances are non-cumulative:

0.05 mm for all centers.

3. Please consider the pattern layout design in case of applying the large current.

4. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.

(16.5)

10.5

B4P-VH-BL(LF)(SN) Related Products

	B4P-VH-BL(LF)(SN)	B4P-VH-BK(LF)(SN)
Description	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Is it Rohs certified?	conform to	conform to
Maker	JST	JST
Reach Compliance Code	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN
Contact completed and terminated	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
UL Flammability Code	94V-0	94V-0
