M35AAA240VAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> M35AAA240VAC

M35AAA240VAC: DescriptionPower/Signal Relay, 3PST, Momentary, 28000mW (Coil), 35A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size547KB，4 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

M35AAA240VAC Overview

Power/Signal Relay, 3PST, Momentary, 28000mW (Coil), 35A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

M35AAA240VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC):204 V, COIL RELEASE VOLTAGE(AC): 24V
body width	86.1 mm
body height	49.1 mm
Body length or diameter	95.3 mm
Coil current (AC) maximum value	0.117 A
Coil power	28000 mW
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	35A@240VAC
Maximum contact current (AC)	35 A
Maximum contact current (DC)	35 A
Contact (DC) maximum rated R load	35A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	250000 Cycle(s)
Manufacturer's serial number	35
Installation features	PANEL MOUNT
operating hours	50 ms
Maximum operating temperature	74 °C
Minimum operating temperature	-34 °C
physical size	95.3mm x 86.1mm x 49.1mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	3PST
Relay type	POWER/SIGNAL RELAY
release time	80 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SCREW

Preview

Download Datasheet

View All

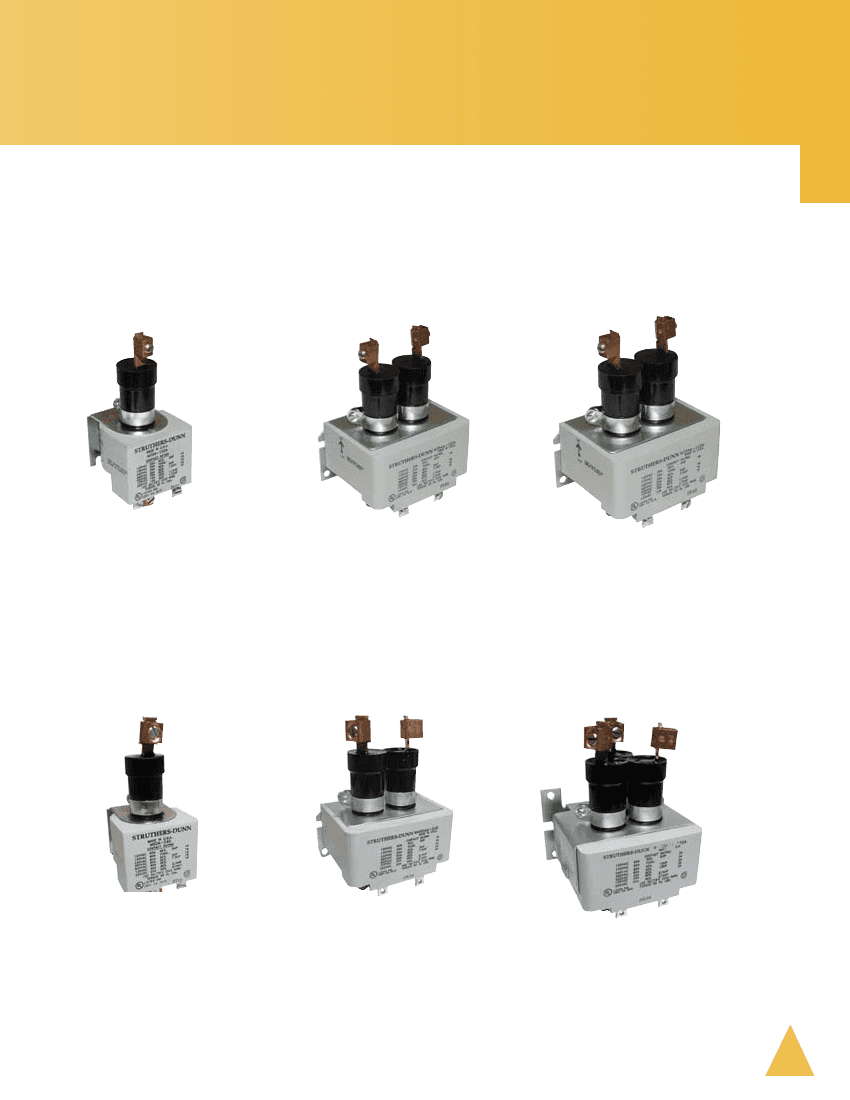

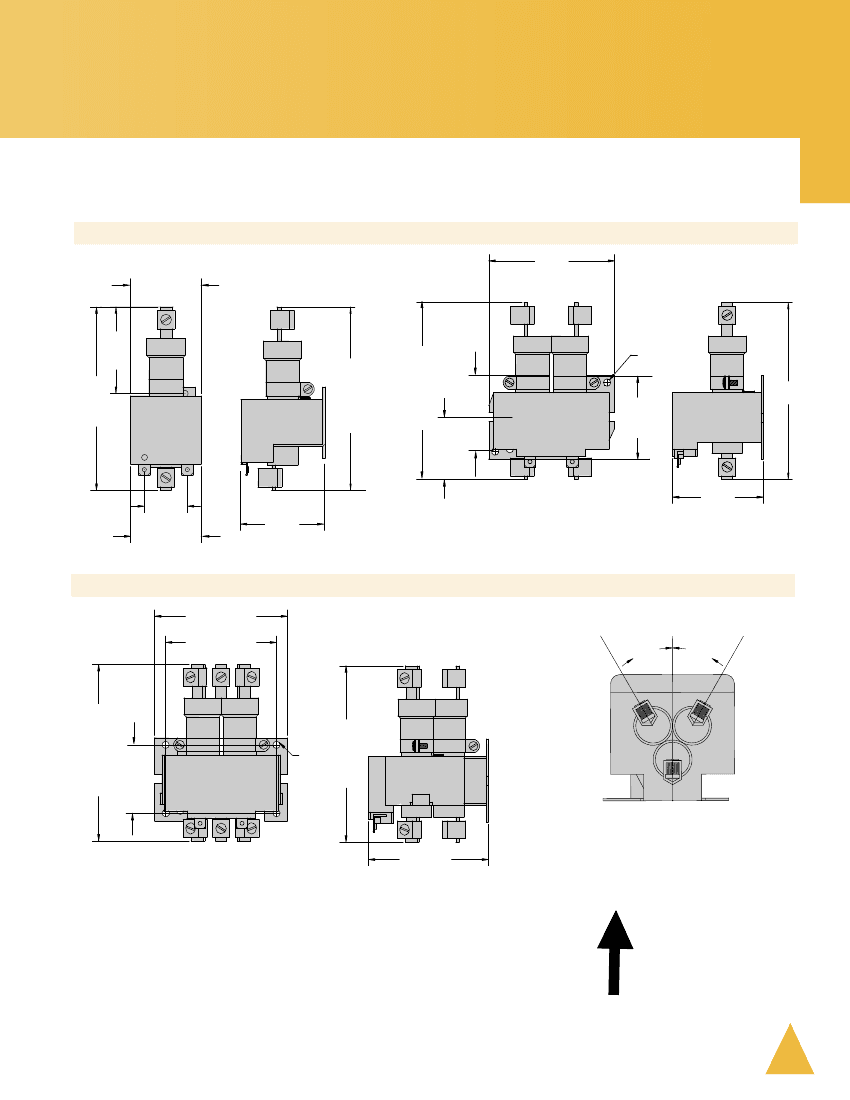

35 & 60 Series - Mercury Displacement Relay

Up to 3PST, 35 or 60 Amp

E52197

The 35 & 60 series products are mercury displacement relays. Sealed tubes containing liquid

mercury assure contact surfaces are freshly replenished with every contact movement. Contact

resistance is among the lowest available for any electromechanical relay. The M35 series offers

superior long life performance. Products are available with 1, 2, or 3 poles rated 35 amps. Contacts

can be normally open or normally closed.

Optional DIN rail adaptors – 1 pole = 16-MDRDIN-1, 2 or 3 pole = 16-MDRDIN-2/3

GENERAL SPECIFICATIONS (@ 25° C)

Contacts:

Contact Configuration

Contact Material

Contact Rating

120 / 240VAC Resistive

28VDC Resistive

Motor 120VAC 1 Phase

Motor 240VAC 1 Phase

Contact Resistance, Initial

Coil:

Coils Available

Nominal Coil Power

Input Voltage Tolerance - AC

Input Voltage Tolerance - DC

Drop-out voltge

Duty

Timing:

Operate Time (max)

Release Time (max)

Dielectric Strength:

Across Open Contacts

Between Mutally Insulated Points

Insulation Resistance

Temperature:

Operating

Storage

Life Expectancy:

Electrical (full load operations)

Mechanical (no load operations)

Miscellaneous:

Mounting Position

Enclosure

Weight

Up to 3PST

Liquid Mercury

35 Amp

5Hp

50 milliohms max @ 6VDC

AC and DC

7 to 28VA

3 to 9W

85% to 110% of nominal

80% to 110% of nominal

10% of nominal

Continuous

50ms

80ms

2650 VRMS

1000 megohms @ 500VAC

-34 to 74°C (-30 to 165°F)

-40 to 105°C (-40 to 221°F)

250,000

5,000,000

Vertical within 10 degrees

Hermetically Sealed

Varies

Up to 3PST

Liquid Mercury

60 Amp

5Hp

10Hp

50 milliohms max @ 6VDC

AC and DC

7 to 28VA 3 to 9W

85% to 110% of nominal

80% to 110% of nominal

10% of nominal

Continuous

50ms

80ms

2650 VRMS

1000 megohms @ 500VAC

-34 to 74°C (-30 to 165°F)

-40 to 105°C (-40 to 221°F)

250,000

5,000,000

Vertical within 10 degrees

Hermetically Sealed

Varies

*Material safety data sheet available on request

*Dispose of properly

2/7

www.struthers-dunn.com

(843) 664-3303
