SAW Components
IF Filter for Audio Applications
Data Sheet
Standard
s
B/G
G 9353 M
38,90 MHz
Plastic package
SIP5K
Features
s
TV IF audio filter with two passbands for sound
carrier at 33,40 MHz and 33,05 MHz (NICAM)
Terminals
s
Tinned CuFe alloy
Dimensions in mm, approx. weight 1,0 g
Pin configuration
1
2
3
4
5
Input
Input - ground
Chip carrier - ground
Output
Output
Type
G 9353 M
Ordering code
B39389-G9353-M100
Marking and package
according to
C61157-A1-A15
Packing
according to
F61074-V8067-Z000
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
AC voltage
T
A
T
stg
V
DC
V
pp
–25/+65
–40/+85
5
10
˚C
˚C
V
V
between any terminals
between any terminals
2
Mar 31, 2006
SAW Components
IF Filter for Audio Applications
Data Sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
G 9353 M
38,90 MHz
T
A
= 25 ˚C
Z
S
= 50
Ω
Z
L
= 2 kΩ || 3 pF
min.
typ.
13,1
max.
14,6
dB
Insertion attenuation
Reference level for the
following data
Relative attenuation
Sound carrier
Picture carrier
Color carrier
Adjacent picture carrier
Adjacent sound carrier
Lower sidelobe
Upper sidelobe
Group delay ripple
(p-p)
α
33,05 MHz
11,6
α
rel
33,40
32,80
38,90
34,47
30,90
31,90
40,40
41,40
25,00 ... 31,90
40,40 ... 45,00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
∆τ
0,4
—
40,0
26,0
31,0
33,0
40,0
40,0
30,0
37,0
—
—
—
1,4
0,9
55,0
34,0
36,0
41,0
55,0
56,0
36,0
46,0
40
1,2 ||10,3
3,4 || 2,9
–72
2,4
—
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
ns
kΩ || pF
kΩ || pF
ppm/K
Impedance
at 33,05 MHz
Input:
Z
IN
=
R
IN
||
C
IN
Output:
Z
OUT
=
R
OUT
||
C
OUT
Temperature coefficient of frequency
TC
f
—
3
Mar 31, 2006
SAW Components
IF Filter for Audio Applications
Data Sheet

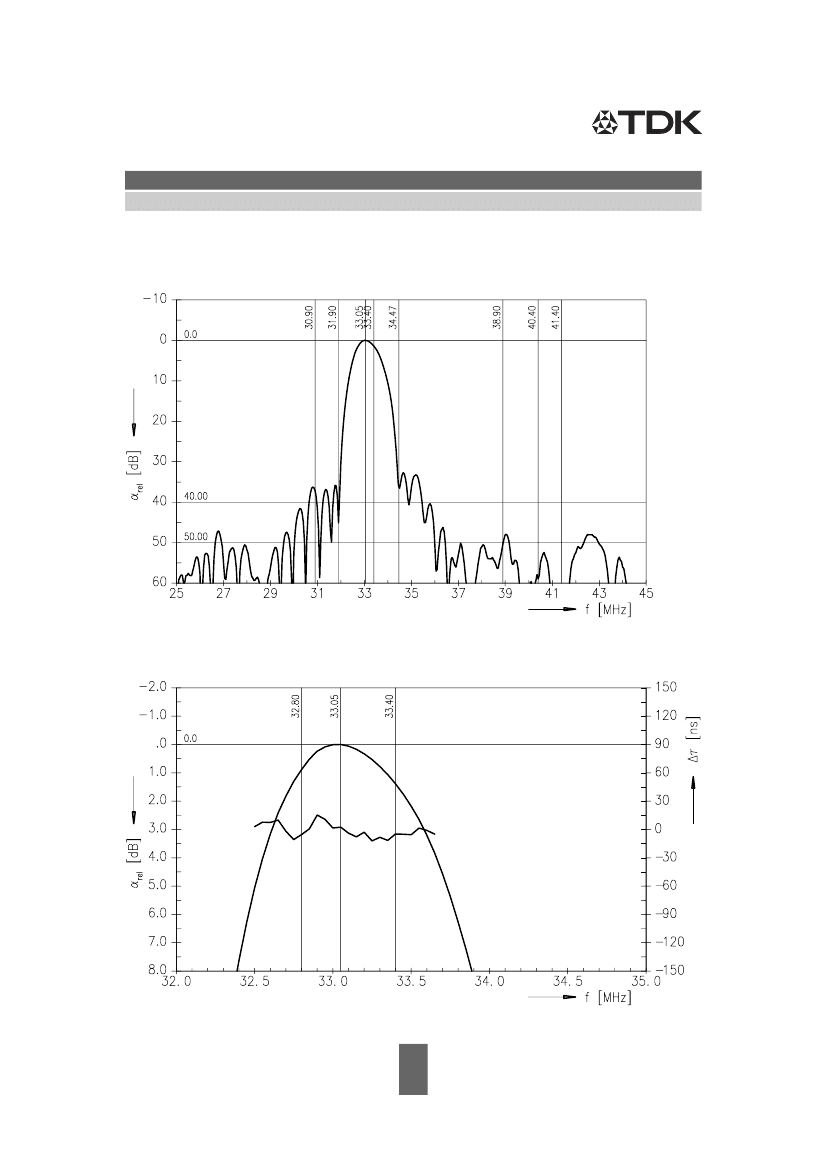

Frequency response
G 9353 M
38,90 MHz
4
Mar 31, 2006
SAW Components
IF Filter for Audio Applications
Data Sheet
G 9353 M
38,90 MHz
Published by EPCOS AG
Surface Acoustic Wave Components Division, SAW CE MM PD
P.O. Box 80 17 09, D-81617 München
©
EPCOS AG 2001. All Rights Reserved.
As far as patents or other rights of third parties are concerned, liability is only assumed for compo-
nents per se, not for applications, processes and circuits implemented within components or
assemblies.
The information describes the type of component and shall not be considered as assured
characteristics.
Terms of delivery and rights to change design reserved.
For questions on technology, prices and delivery please contact the sales offices of EPCOS AG or
the international representatives.
Due to technical requirements components may contain dangerous substances. For information on
the type in question please also contact one of our sales offices.
5
Mar 31, 2006
