PS10/A0112/00: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size50KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/

Download Datasheet Parametric View All

PS10/A0112/00 Overview

Single Phase EMI Filter, 250V, 50/60HzHz,

PS10/A0112/00 Parametric

Parameter Name	Attribute value
Maker	BULGIN
Reach Compliance Code	compliant
Other features	ADDITIONAL COMPONENT SURGE PROTECTION
Certification	UL; CSA; VDE; SEMKO
filter type	SINGLE PHASE EMI FILTER
high	20 mm
high potential	1100 V
Maximum leakage current	0.35 mA
length	40 mm
Manufacturer's serial number	PS10/A
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
physical size	L40XB35XH20 (mm)
Rated current	1 A
Rated voltage	250 V

Preview

Download Datasheet

View All

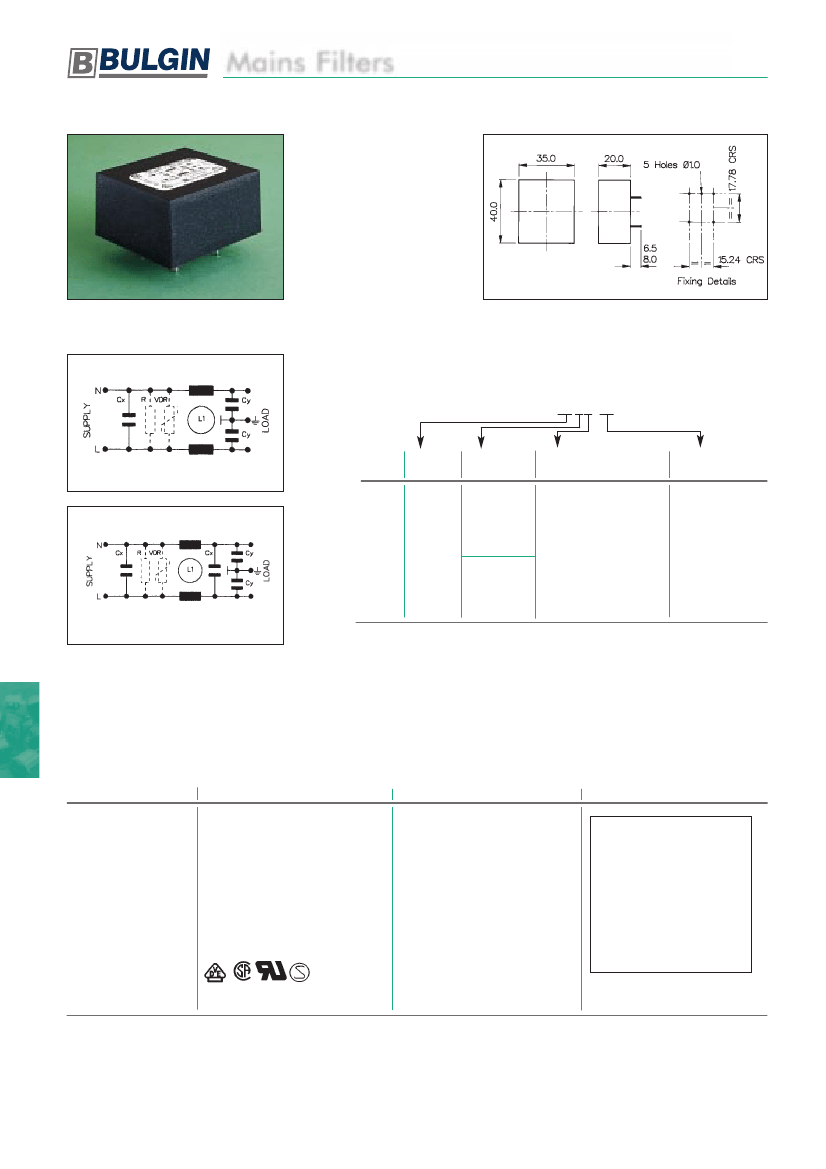

Mains Filters

PCB Mounting

1, 3, 6 or 10 Amp Current

Rating

3 Alternative Circuits

Optional Additional

Components

PS10/A

PS10/Axx x x /xx

Series

Rating

01 = 1A

03 = 3A

06 = 6A

L/C Circuit

1 = Version 1

2 = Version 2

3 = Version 3

Additional

Components

0 = None

1 = Bleed (R) Resistor

2 = Surge (VDR) Protection

3 = “R” plus “VDR”

Tag Type and

Configuration

00 = PCB

Versions 1 and 2

PS10/A

10 = 10A 1 = Version 1

Version 3 (High performance)

Filters

Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals

PS10/Axxxx/xx

250V a.c. 50-400Hz

<0.35mA (250V. 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

Example

PS10/A1010/00 =

PS10 series, PCB mounting

standard filter, rated at 10

amperes. L/C circuit version 1,

i.e. L1 = 2 x 0.17mH, Cx = 1 x

15nF, Cy = 2 x 2.2nF, without

bleed resistor or surge protection.

124

Fax: +44 (0) 20 8507 2691

Email: sales@Bulgin.co.uk
