KS320-150MT: DescriptionIC Socket, DIP20, 20 Contact(s),; CategoryThe connector socket; File Size159KB，2 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

KS320-150MT Overview

IC Socket, DIP20, 20 Contact(s),

KS320-150MT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Advanced Interconnections Corp.
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	DIP20
Shell material	POLYAMIDE
JESD-609 code	e4
Number of contacts	20

Preview

Download Datasheet

View All

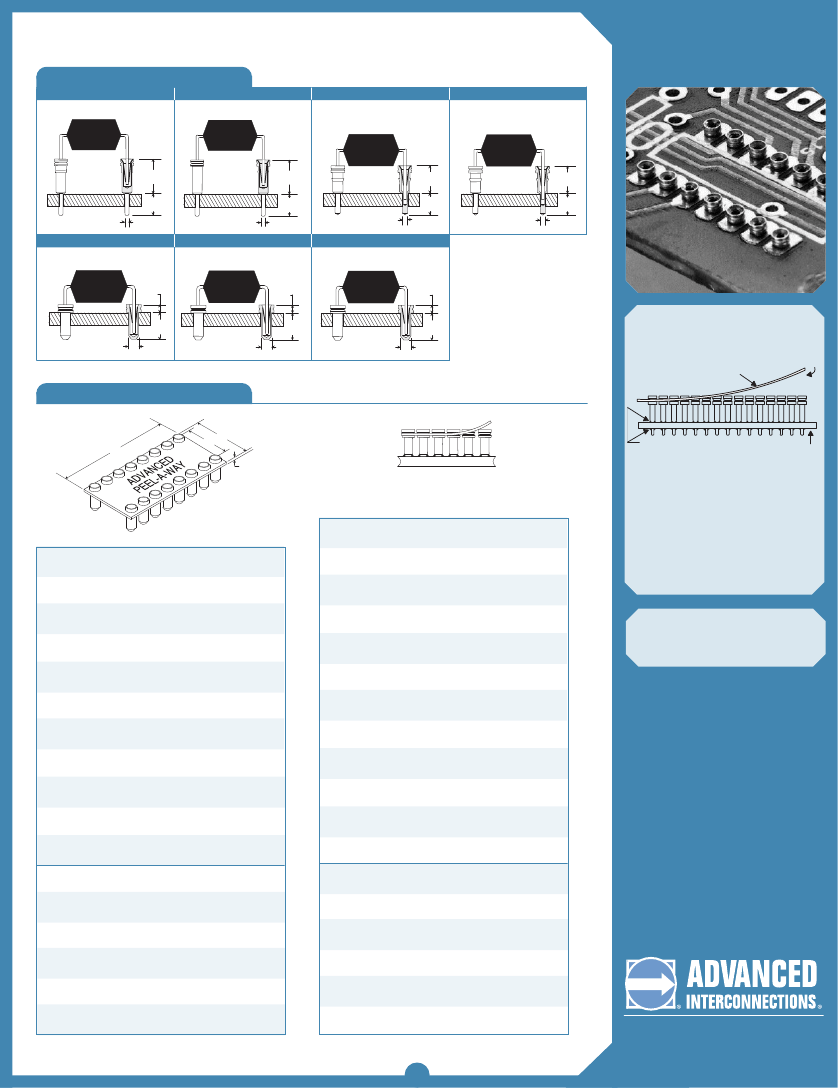

DIP Sockets

Table of Models

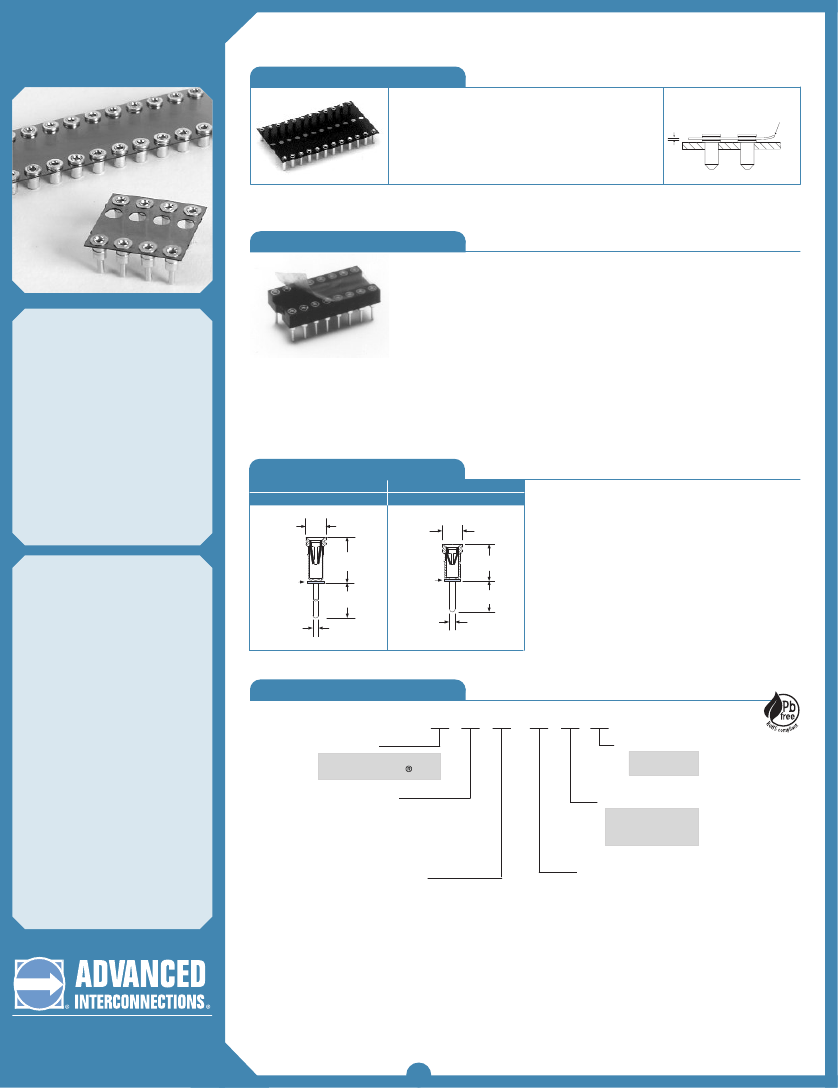

Peel-A-Way DIP Socket Terminal Carriers

Description:

Peel-A-Way

(KS)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

.005

(.13)

Polyimide

Film

Options

Tape Sealant - add 3M to end of part number

• Removable tape seal protects plated contact in harsh environments

• Sealed socket will not allow dirt and other contaminants to enter

socket chamber and become entrapped behind contact fingers

• Spray flux without contaminating contact area

Features:

• Peel away terminal carrier after

soldering.

• Disposable carrier.

• Complete soldering visibility on

both sides of PCB.

• Maximum air flow.

• Better flux rinse.

• No contact damage due to

terminal carrier insertion.

• No contact pull out due to

extraction of terminal carrier.

Material

Silicone Backed Polyimide Film, -74°C to 260°C (-100°F to 500°F)

Intermittent to 371°C (700°F)

Solder Preform Terminals

Tin/Lead: Type -150

Lead-free: Type -811

.072 Dia.

(1.83)

Tin/Lead: Type -151

Lead-free: Type -812

.072 Dia.

(1.83)

.130

(3.30)

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper - Copper Alloy

(C17200) ASTM-B-194

Solder Preform:

Standard: 63Sn/37Pb

Lead-free: Sn/Ag/Cu

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per MIL-G-45204

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

.165

(4.19)

Solder

Preform

.125

(3.18)

.020 Dia.

(.51)

Solder

Preform

.110

(2.79)

.020 Dia.

(.51)

How To Order

Body Type

RoHS Compliant Insulators:

- 85

Contact Plating

RoHS Compliant:

KS - Peel-A-Way

DIP

G - Gold

T - Tin/Lead

Terminal Plating

RoHS Compliant:

DIP Spacing

3 - .300/(7.62mm)

4 - .400/(10.16mm)

6 - .600/(15.24mm)

9 - .900/(22.86mm)

Number of Pins

(8 to 64)

Additional sizes available - consult factory.

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options on next page

Note: Terminals plated with Matte Tin are available only with Gold plated contacts.

Quick-Turn delivery is not available on products with Matte Tin plating.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.423.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Cat. 16 Rev. 0

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
