DMP6201A

Description
Logic IC Output Optocoupler, 1-Element, 4000V Isolation
CategoryLED optoelectronic/LED    photoelectric
File Size78KB，1 Pages
ManufacturerCrydom
Websitehttp://www.crydom.com/en/index.shtml
Download Datasheet Parametric Compare View All

DMP6201A Online Shopping

Suppliers Part Number Price MOQ In stock
DMP6201A - - View Buy Now

DMP6201A Overview

Logic IC Output Optocoupler, 1-Element, 4000V Isolation

DMP6201A Parametric

Parameter NameAttribute value
MakerCrydom
Reach Compliance Codeunknown
Other featuresUL RECOGNIZED, LOGIC LEVEL COMPATIBLE
ConfigurationSINGLE
Maximum insulation voltage4000 V
Number of components1
Maximum on-state current0.025 A
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
Optoelectronic device typesLOGIC IC OUTPUT OPTOCOUPLER
Minimum supply voltage3.5 V

Preview

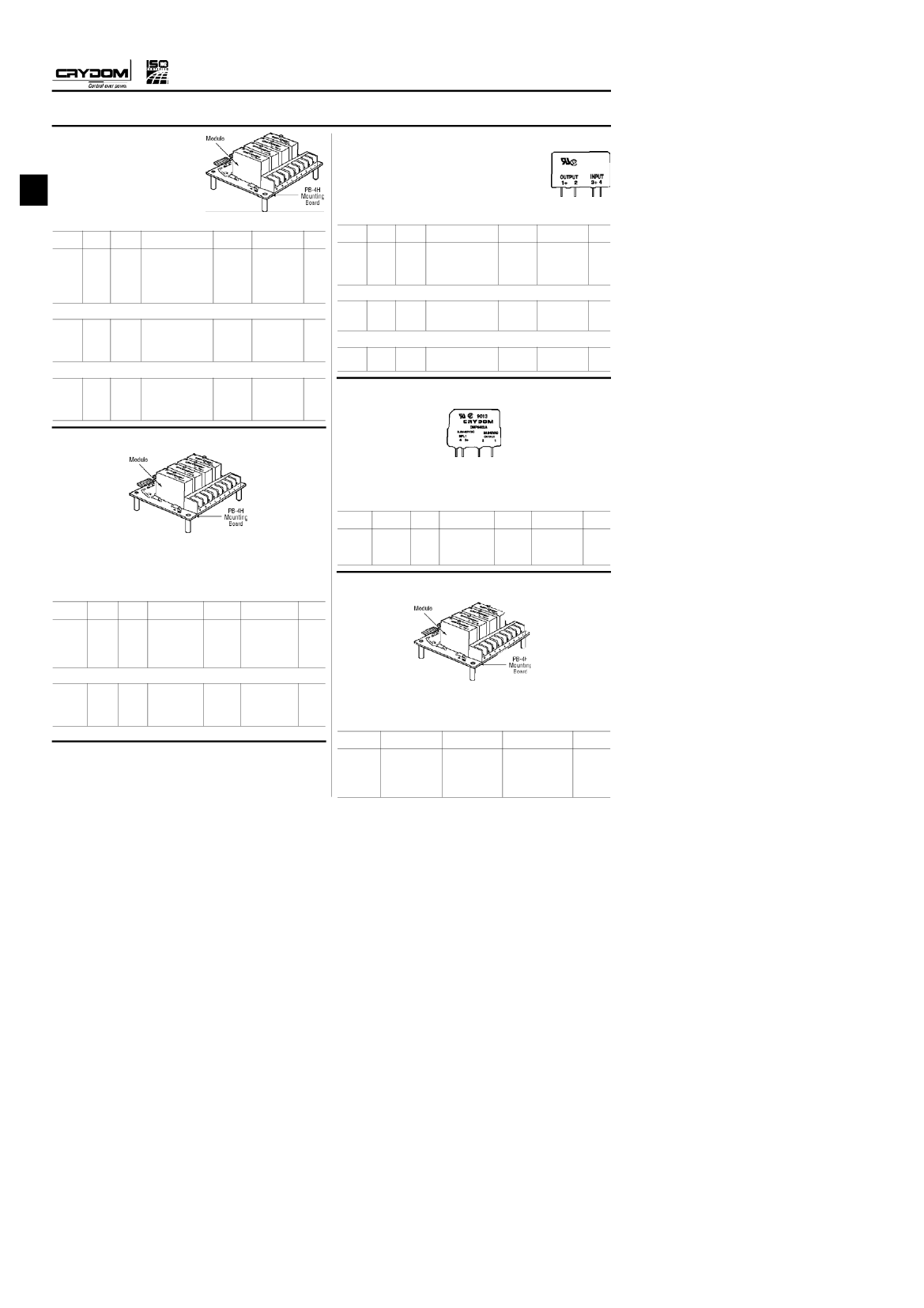

Download Datasheet
C r y d o m
Company
I/O Modules and Mounting Boards
c
www.crydom.com Ñ View and Download Specifications
For Complete Product Specifications
c
FAX-ON-DEMAND, Call 888-267-9188 for Instant Specs on Your FAX
Series IAC, IDC, OAC, ODC Solid
State Opto-Isolated Modules
c
FAX-ON-DEMAND Ñ Code: 301, 302
Series MIAC, MIDC, MOAC, MODC
MINI-PACK Solid State
Opto-Isolated Modules
c
FAX-ON-DEMAND Ñ Code: 301, 302
The same excellent Crydom I/O module performance that delivers electrically clean, photo-
isolated, noise-free ÒoutputÓ interface in a compact MINI-PACK. Designed for long, reliable
service in demanding industrial environments.
Operating Temperature Range:
Ð40¡C to
80¡C.
Isolation Voltage (Vrms):
4000.
4
Crydom I/O modules deliver electrically clean, photo-isolated, noise-
free ÒoutputÓ interface from logic level control systems to external
loads such as motors, valves, solenoids, etc. Ñ or an ÒinputÓ
interface from the load or sensors to microprocessor or computer-
based logic level systems. Designed for long, reliable service in
demanding industrial environments.
Operating Temperature
Range:
Ð40¡C to 80¡C.
Isolation Voltage (Vrms):
4000.
5 VDC Models
Stock
No.
682-1000
682-1002
682-1004
682-1007
682-1010
682-1012
682-1014
682-1016
Mfr.Õs
Type
IAC5
IAC5A
IDC5
IDC5D
OAC5
OAC5A
ODC5
ODC5A
Voltage
Type
AC, DC In
AC, DC In
DC In
DC In
AC Out
AC Out
DC Out
DC Out
Output Load Current
Over Load Voltage
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.01-50 mA @ 0.30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
0.02-1 A @ 10-200 VDC
Input Voltage
Range
90-140 VAC
180-280 VAC
10-36 VDC
3-32 VDC
3-6 VDC
3-6 VDC
3-6 VDC
3-6 VDC
Input Max.
Load Current (mA)
10
7
13
32
20
20
14
14
EACH
10.32
10.84
7.46
10.30
9.93
8.75
7.45
15.22
5 VDC Models
Stock
No.
682-8108
682-8113
682-8123
682-8124
682-8117
682-8118
Mfr.Õs
Type
MIAC5
MIDC5
MOAC5
MOAC5A
MODC5
MODC5A
Voltage
Type
AC, DC In
DC In
AC Out
AC Out
DC Out
DC Out
Output Load Current
Over Load Voltage
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
0.02-1 A @ 10-200 VDC
Input Voltage
Range
90-140 VAC
10-36 VDC
3-6 VDC
3-6 VDC
3-6 VDC
3-6 VDC
Input Max.
Load Current (mA)
10
13
20
20
14
14
EACH
7.51
9.91
7.51
8.40
7.45
15.31
15 VDC Models
682-8110
682-8115
682-8125
682-8119
MIAC15
MIDC15
MOAC15
MODC15
AC, DC In
DC In
AC Out
DC Out
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
90-140 VAC
10-36 VDC
9-18 VDC
9-18 VDC
Ñ
Ñ
Ñ
Ñ
9.91
9.91
8.41
9.91
15 VDC Models
682-1018
682-1020
682-1022
682-1024
682-1028
682-1030
IAC15
IAC15A
IDC15
OAC15
ODC15
ODC15A
AC, DC In
AC, DC In
DC In
AC Out
DC Out
DC Out
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
0.02-1 A @ 10-200 VAC
90-140 VAC
180-280 VAC
10-36 VDC
9-18 VDC
9-18 VDC
9-18 VDC
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
10.30
9.91
10.39
10.30
9.24
12.04
24 VDC Models
682-8116
682-8126
682-8121
MIDC24
MOAC24
MODC24
DC In
AC Out
DC Out
0.10-100 mA @ 0.4-30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
10-36 VDC
18-28 VDC
18-28 VDC
13
17
12
9.91
8.89
8.48
24 VDC Models
682-1032
682-1034
682-1036
682-1038
682-1040
682-1042
IAC24
IDC24
OAC24
OAC24A
ODC24
ODC24A
AC, DC In
DC In
AC Out
AC Out
DC Out
DC Out
0.10-100 mA @ 0.4-30 VDC
0.10-100 mA @ 0.4-30 VDC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 12-280 VAC
0.02-3 A @ 5-60 VDC
0.02-1 A @ 10-200 VAC
90-140 VAC
10-36 VDC
18-28 VDC
18-28 VDC
18-28 VDC
18-28 VDC
10
13
17
17
12
12
10.30
9.24
10.30
9.60
13.65
12.42
Series DMP AC and DC Microprocessor I/O Modules
Series 6 AC And DC Microprocessor I/O Modules
c
Epoxy Conformal Coated
c
UL, CSA Approved
c
FAX-ON-DEMAND Ñ Code: 303
Electrically identical to Crydom I/O modules, these AC and DC I/O modules are packaged in a hard, skin-tight epoxy
conformal coating for excellent environmental protection and heat transfer. Pin-out matches Series 6.
Operating
Temperature Range:
Ð40¡C to 80¡C.
Isolation Voltage (Vrms):
4000.
Stock
No.
Mfr.Õs
Type
DMP6101A
DMP6201A
DMP6202A
DMP6301A
DMP6402A
Voltage
Type
DC In
AC In
AC In
DC Out
AC Out
Input Current
vs. Voltage
7 mA @ 32 VDC
6 mA @ 120 VAC
6 mA @ 240 VAC
15 mA @ 5 VDC
15 mA @ 5 VDC
Max. Load
Voltage
30 VDC
30 VDC
30 VDC
60 VDC
280 VAC
Max. Load
Current
25 mA @ 80¡C
25 mA @ 80¡C
25 mA @ 80¡C
3 ADC @ 45¡C
3 Arms @ 45¡C
EACH
9.32
9.54
10.55
9.65
10.55
5 V and 15 V Logic
c
Inverting and Non-Inverting Inputs
c
Printed Circuit Board Mounting
c
UL, CSA Approved
c
FAX-ON-DEMAND Ñ Code: 305
682-0132
682-0133
682-0134
682-0135
682-0136
Series 6 buffered output modules contain additional internal amplification to reduce drive requirements to a level suitable
for the MOS devices used in many microprocessor systems. Models are available with either inverting or non-inverting
inputs, for 5 and 15 volt logic.
Operating Temperature Range:
Ð40¡C to 80¡C.
Isolation Voltage (Vrms):
4000.
Standard I/O Modules (5 Volt Models)
Stock
No.
682-0117
682-0118
682-0119
682-0120
682-0121
682-0122
682-0125
Mfr.Õs
Type
6101A*
6201A*
6202A*
6301A*
6401A*
6402A*
6302
Voltage
Type
DC In
AC In
AC In
DC Out
AC Out
AC Out
DC Out
Input Current
vs. Voltage
7 mA @ 32 VDC
6 mA @ 120 VAC
6 mA @ 240 VAC
15 mA @ 5 VDC
15 mA @ 5 VDC
15 mA @ 5 VDC
12 mA @ 5 VDC
Max. Load
Voltage
30 VDC
30 VDC
30 VDC
60 VDC
140 VAC
280 VAC
200 VDC
Max. Load
Current
25.0
25.0
25.0
3.0
3.0
3.0
1.5
mA @ 80¡C
mA @ 80¡C
mA @ 80¡C
ADC @ 45¡C
Arms @ 45¡C
Arms @ 45¡C
A @ 45¡C
EACH
11.36
10.44
12.26
11.56
10.87
12.06
17.51
Series PB Mounting Boards
Buffered Output Modules (5 Volt Models)
682-0126
682-0127
682-0128
682-0129
682-0130
682-0131
6311
6321
6411
6412
6421
6422
DC Out
DC Out
AC Out
AC Out
AC Out
AC Out
75 µA @ 0.8 VDC
75 µA @ 2.4 VDC
75 µA @ 0.8 VDC
75 µA @ 0.8 VDC
75 µA @ 2.4 VDC
75 µA @ 2.4 VDC
60 VDC
60 VDC
140 VAC
280 VAC
140 VAC
280 VAC
3.5
3.5
3.5
3.5
3.5
3.5
ADC @ 45¡C
ADC @ 45¡C
Arms @ 45¡C
Arms @ 45¡C
Arms @ 45¡C
Arms @ 45¡C
18.16
18.35
18.00
18.45
18.57
17.95
c
FAX-ON-DEMAND Ñ Code: 306
Crydom mounting boards accept standard I/O modules in any combination of input or output types. Modules are easily
and quickly inserted without disturbing field wiring.
Features Include:
LED status indicator, plug-in 5 amp fuse and 3.3 K
Ohm pull-up resistor for each module.
Stock
No.
c
Detailed Reference on SSR Applications
682-3041
682-3042
682-9996
682-4158
682-4159
682-4160
682-4161
Mfr.Õs
Type
PB-4 (MS-4)
PB-4H (MS-4H)
PB-4R
PB-8 (MS-8H)
PB-16A (MS-16H)
PB-16T
PB-24 (MS-24H)
Module Positions
I/O Channels
4
4
4
8
16
16
24
Connection
Type
Screw Terminal
26, 50 Pin Card Edge
Screw Terminal
26, 50 Pin Card Edge
50 Pin Card Edge
Screw Terminal
50 Pin Card Edge
EACH
30.30
33.08
38.52
59.58
108.93
138.10
184.25
*In compliance with NEMA 2-230 (noise immunity).
Solid State Relay Handbook
c
Over 200 Pages
c
Written by Anthony Bishop
A comprehensive tutorial and SSR resource guide.
682-2000.
HDBK-899 ............................................................................................................................................EACH
21.17
170
b
ALLIED
For Local Personalized Service Call 1-800-433-5700

DMP6201A Related Products

DMP6201A MIDC15 MIDC5 MODC24 MODC15 MODC5 MOAC24
Description Logic IC Output Optocoupler, 1-Element, 4000V Isolation Transistor Output SSR, 1-Channel, 4000V Isolation Transistor Output SSR, 1-Channel, 4000V Isolation, Transistor Output SSR, 1-Channel, 4000V Isolation, Transistor Output SSR, 1-Channel, 4000V Isolation Transistor Output SSR, 1-Channel, 4000V Isolation, Trigger Output SSR, 1-Channel, 4000V Isolation,
Reach Compliance Code unknown compliant compliant compliant compliant compliant compliant
Configuration SINGLE SINGLE WITH BRIDGE OUTPUT SINGLE WITH BRIDGE OUTPUT SINGLE SINGLE SINGLE SINGLE
Maximum insulation voltage 4000 V 4000 V 4000 V 4000 V 4000 V 4000 V 4000 V
Number of components 1 1 1 1 1 1 1
Maximum on-state current 0.025 A 0.05 A 0.05 A 3 A 3 A 3 A 3 A
Maximum operating temperature 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C
Minimum operating temperature -40 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C
Optoelectronic device types LOGIC IC OUTPUT OPTOCOUPLER TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRIGGER OUTPUT SSR
Maker Crydom Crydom - Crydom Crydom Crydom Crydom
Other features UL RECOGNIZED, LOGIC LEVEL COMPATIBLE - - UL APPROVED UL APPROVED UL APPROVED UL RECOGNIZED
Is it Rohs certified? - conform to conform to conform to conform to conform to conform to
Maximum forward current - 0.016 A 0.016 A 0.015 A 0.02 A 0.027 A 0.0135 A
control voltage - - - 16.5 V 8.5 V 2.5 V 24 V
input type - - - DC DC DC DC
Output circuit type - - - Triac Triac Triac Triac
total height - - - 25.4 mm 25.4 mm 25.4 mm 25.4 mm
total length - - - 43.1 mm 43.1 mm 43.1 mm 43.1 mm

Recommended Resources

6 to 15V, 500mA adjustable regulated power supply circuit

Several trigger circuits using resistor-capacitor phase shifting g

Cassette recorder bias oscillator.gif

ADC614 internal circuit structure diagram

Circuit that simulates the sound of a machine gun

555 eight-level touch volume controller circuit

I'm begging for the schematic diagram of Tianli's LT-Easy51 51 MCU development board? I want to make one myself.
Does anyone have the schematic diagram of Tianli's LT-Easy51 51 MCU development board? I want to make one myself, and hope you can help me. My email address is [email]zywang5180@qq.com[/email] Thank y...
kevin5180 51mcu
Looking for a Chinese resource CEAPPWZCHS.DLL for evc!
I'm a beginner in evc, and I feel it's very troublesome to change the Chinese support myself. I'm looking for a CEAPPWZCHS.DLL support wizard resource. Email lyhtal@163.com I feel very much, and I wil...
kennan Embedded System
Simple signal processing question
There are two output signals, one is the clock signal and the other is the output signal. I want to receive and store the output signal in groups of 8 bits. Can I use the ordinary IO port to detect an...
踏雪无痕 Embedded System
How to open the PCB library file of MSP430 FLASH series
Hello, moderator:What software should I use to open the downloaded MSP430 FLASH series PCB library file?Thank you...
moto8088 Microcontroller MCU
The key role of crystal oscillators in lighting system hardware
[align=left][size=4] For some places with long lighting time and many lighting equipment, it is common to see the phenomenon of waste in the use of lighting systems. Due to the lack of scientific mana...
yijindz Integrated technical exchanges
Thermal Considerations for Surface Mount Layouts
eeworldpostqq...
尘海月 Analogue and Mixed Signal
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. XS512BLPAL5
  2. H180A-19.6608-S-T-STBY1-TOL4
  3. FFC-FC21AN500
  4. MMSI-04R-14L4-18-1620
  5. HLMA-PL00-PR034
  6. GUS-TS0A-02-1962-CF
  7. TNPW0805138RBHEA
  8. FT6163LL-45FCLF
  9. P6KE20-AU_B0_100A1
  10. D3961HF-22P-YL-G30
  11. C4201HMB-2x11P-V0
  12. CR2010J360RE04Z

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Videos 35: Nth Edge Trigger
  2. Efinix® Announces AEC-Q100 Qualification and Automotive Product Portfolio Plans
  3. Toyota releases 2030 battery strategy with production capacity exceeding 200GWh
  4. 51 single chip microcomputer realizes two cascaded 74HC595 to drive 16 LED lights
  5. Anjie Digital Technology and Graphcore use IPU for weather forecasting, precise irrigation, disaster prevention and mitigation
  6. Chapter 18: Android LCD (IV): LCD driver debugging
  7. Sony Xperia 1 III and Xperia 5 III start rolling out Android 12 updates
  8. How to use a digital multimeter to distinguish leakage or induction charging
  9. B001 - Atmega16 - SPI Flash
  10. Serial communication prerequisites

Technical ResourceMore

  1. Development and application of embedded configurable real-time operating system-ECOS
  2. Transformer parameter calculation software
  3. Design and simulation of audio power amplifier based on Proteus
  4. Design of intelligent detector for horizontal angular velocity sensor of a self-propelled artillery
  5. Multi-core architecture and programming technology
  6. Introduction to roller press principle and failure
  7. Fault Detection Method Based on Immune Neural Network
  8. OA maintenance information
  9. Delphi 2005 Programming Courseware-Electronic Lesson Plan
  10. Common Faults of Electrostatic Precipitator and Their Solutions

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2433  2177  1171  2092  338  49  44  24  43  7
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
