2
TWIST TIE
1
NOTES:
**1. SEE CURRENT CATALOG FOR VARIOUS
APPLICATIONS AND TO INDICATE
PANDUIT
MIN. CABLE
WEIGHT
COLOR AND OR PACKAGE QUANTITY.
PART NUMBER LENGTH
2. SEE CATALOG FOR A COMPLETE LIST
1.82 lbs/10 PCS
OF PARTS APPLICABLE FOR USE
1M
IUTP6X1MBL
(825.8 g/10 PCS
WITH THIS PART.
3.64 lbs/10 PCS
3. DIMENSIONS IN PARENTHESES ARE
2M
IUTP6X2MBL
(1651.6 g/10 PCS
IN METRIC.
5.46 lbs/10 PCS
4. CABLE MEETS CATEGORY 6A REQUIREMENTS
3M
IUTP6X3MBL
(2477.5 g/10 PCS
AND CURRENT ODVA REQUIREMENTS FOR
9.10 lbs/10 PCS
INDUSTRIAL CABLE.
5M
IUTP6X5MBL
(4129.1 g/10 PCS
5. ALL MATERIALS AND COMPONENTS USED MUST
18.20 lbs/10 PCS
MEET THE MATERIAL RESTRICTIONS OF RoHS,
10 M
IUTP6X10MBL
(8.258 kg/10 PCS
(EUROPEAN DIRECTIVE 2011/65/EU ON THE
RESTRICTION OF HAZARDOUS SUBSTANCES) AS
PROPOSED BY THE RoHS TECHNICAL ADAPTATION
COMMITTEE.
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
B
T568B WIRING
PLUG POSITION
1
2
3
4
5
6
7
8
CABLE WIRE
WHITE ORANGE
ORANGE
WHITE GREEN
BLUE
WHITE BLUE
GREEN
WHITE BROWN
BROWN
PLUG CAPS
PART NUMBER
IUTP6X*MBL

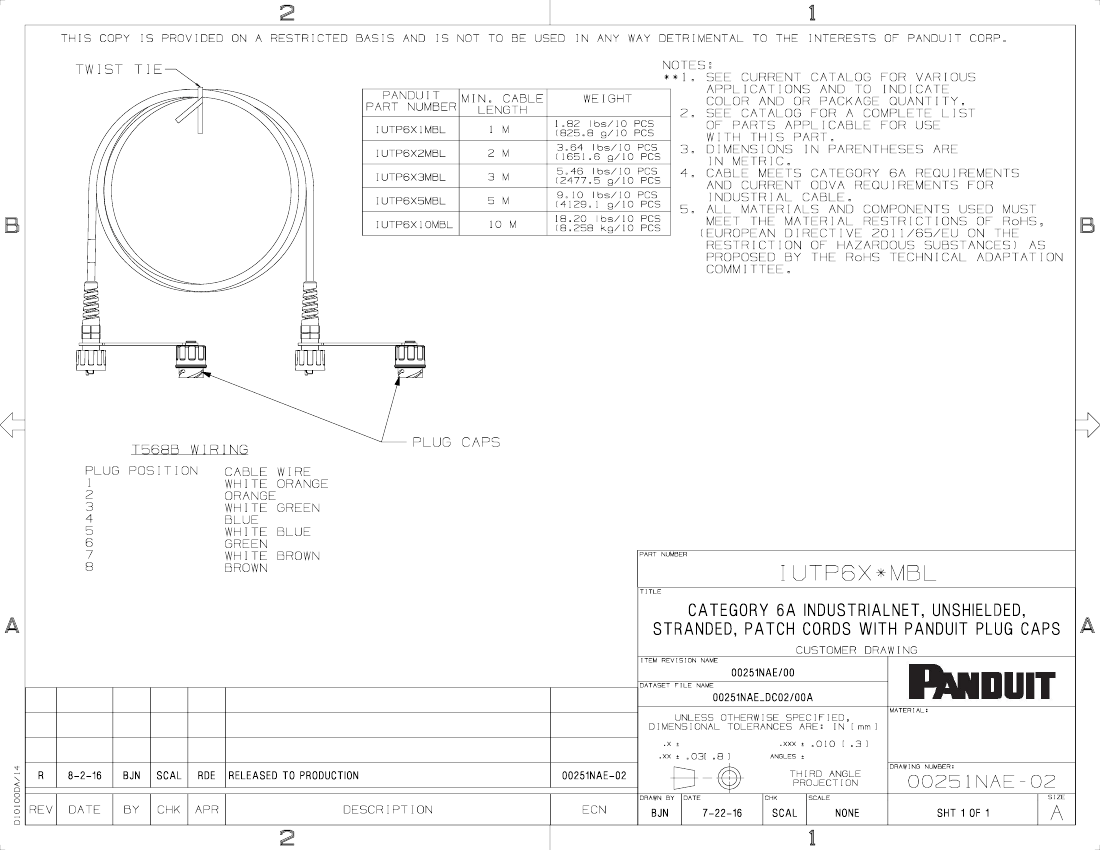

TITLE
A
CATEGORY
6A
INDUSTRIALNET,
UNSHIELDED,
STRANDED,
PATCH
CORDS
WITH
PANDUIT
PLUG
CAPS
CUSTOMER DRAWING
ITEM REVISION NAME
A
00251NAE/00
DATASET FILE NAME
00251NAE_DC02/00A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
.010 [.3]
DRAWING NUMBER:
.03[.8]
ANGLES
D10100DA/14
R
8-2-16
DATE
BJN
SCAL
RDE
RELEASED
TO
PRODUCTION
00251NAE-02
DRAWN
BY
THIRD ANGLE
PROJECTION
DATE
CHK
SCALE
00251NAE-02
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
BJN
7-22-16
SCAL
NONE
SHT
1
OF
1
A
2
1
