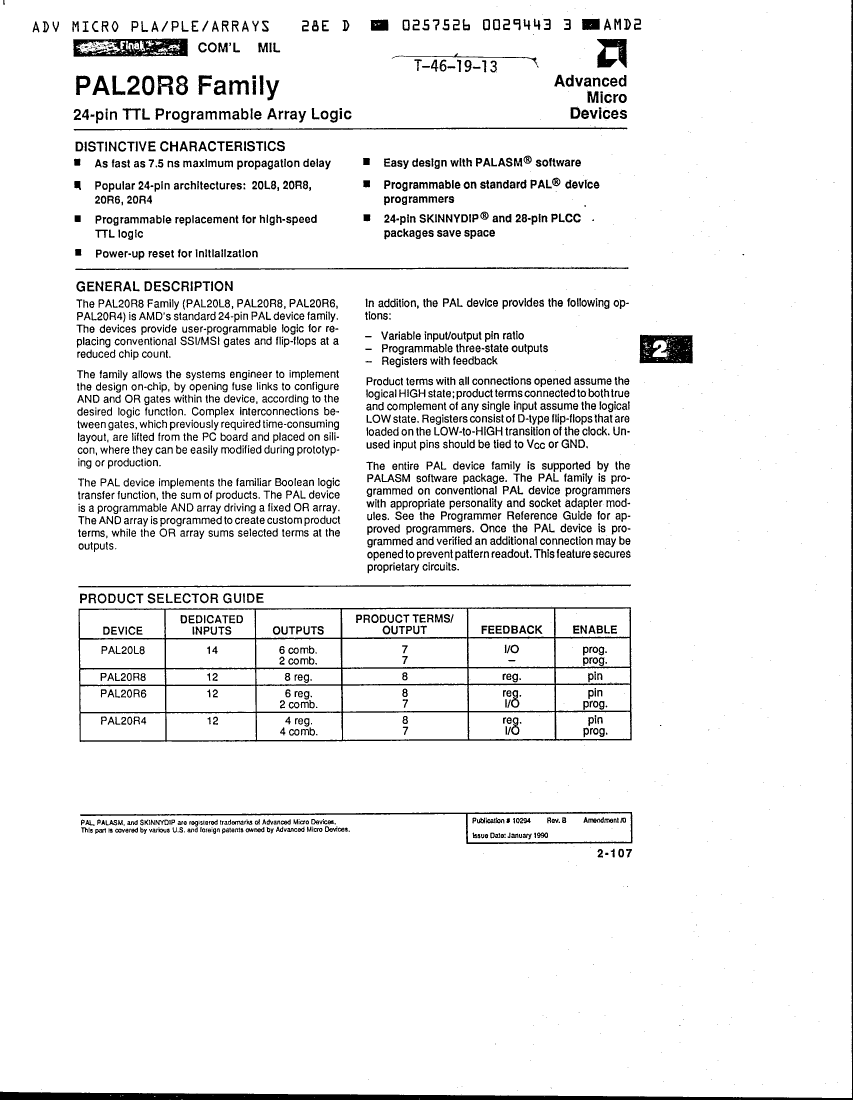

OT PLD, 35ns, PAL-Type, TTL, PQCC28

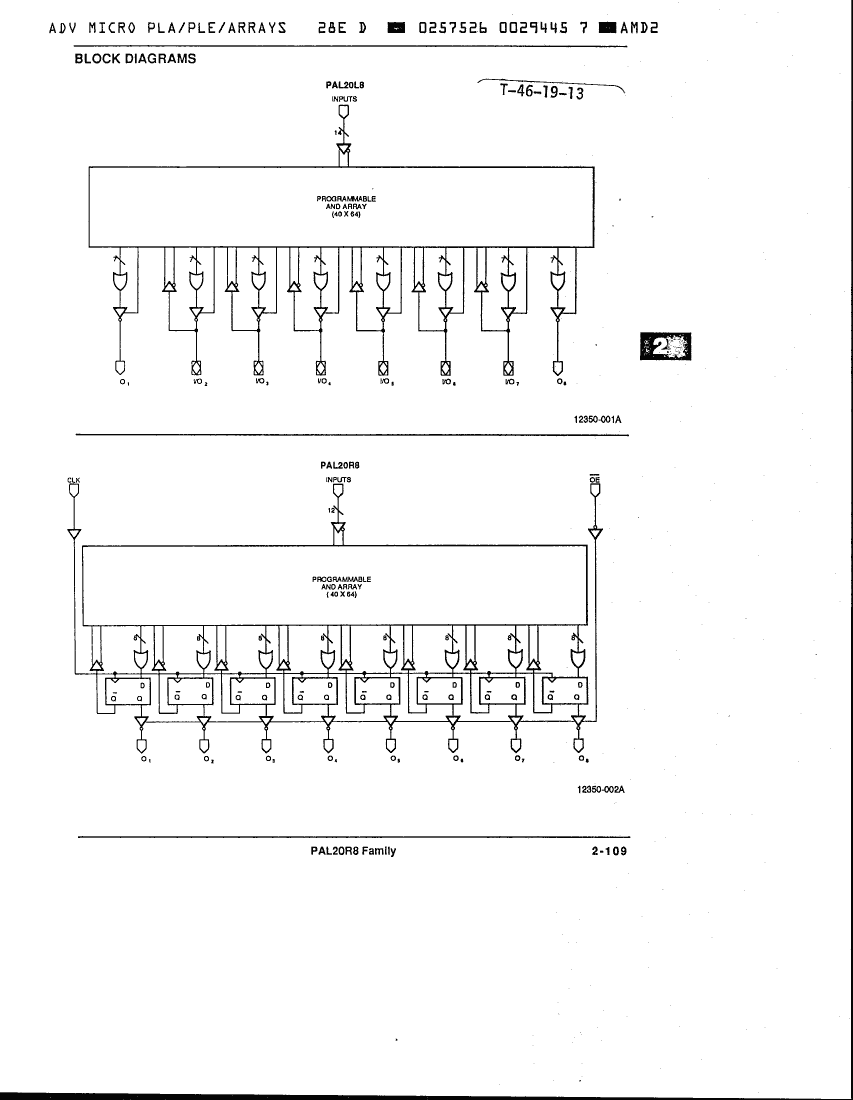

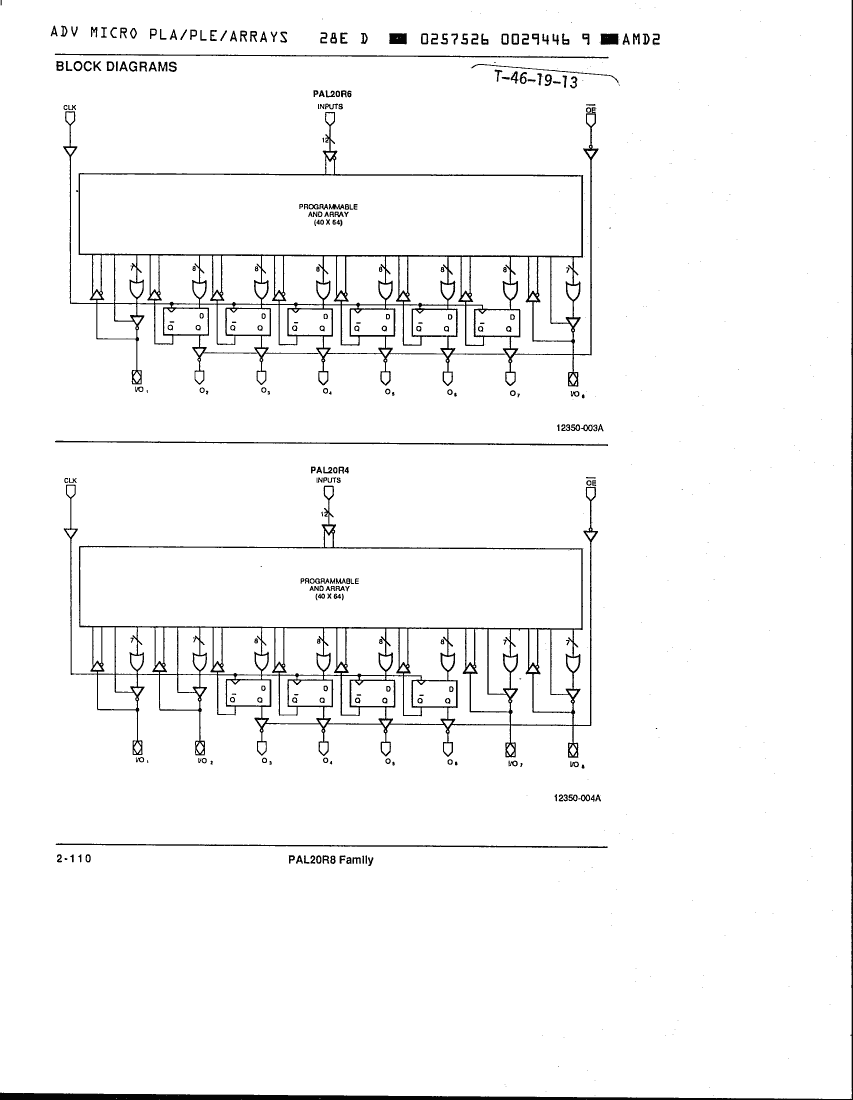

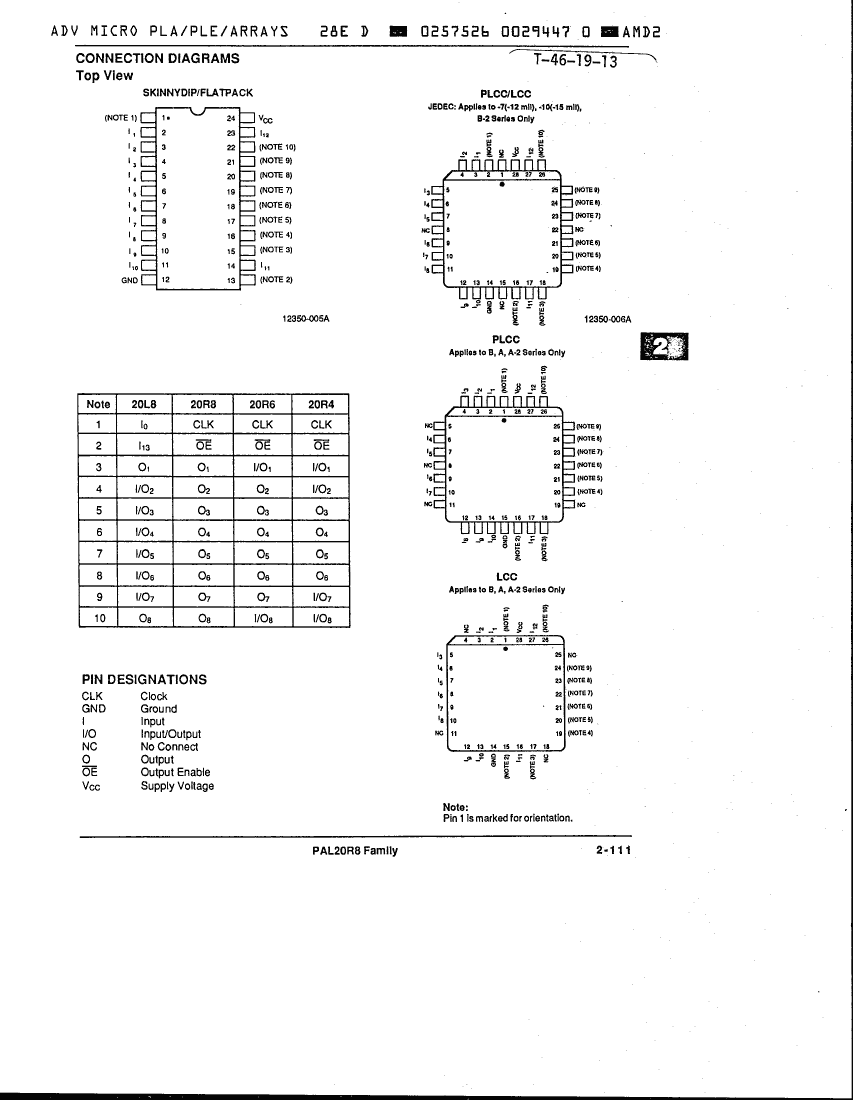

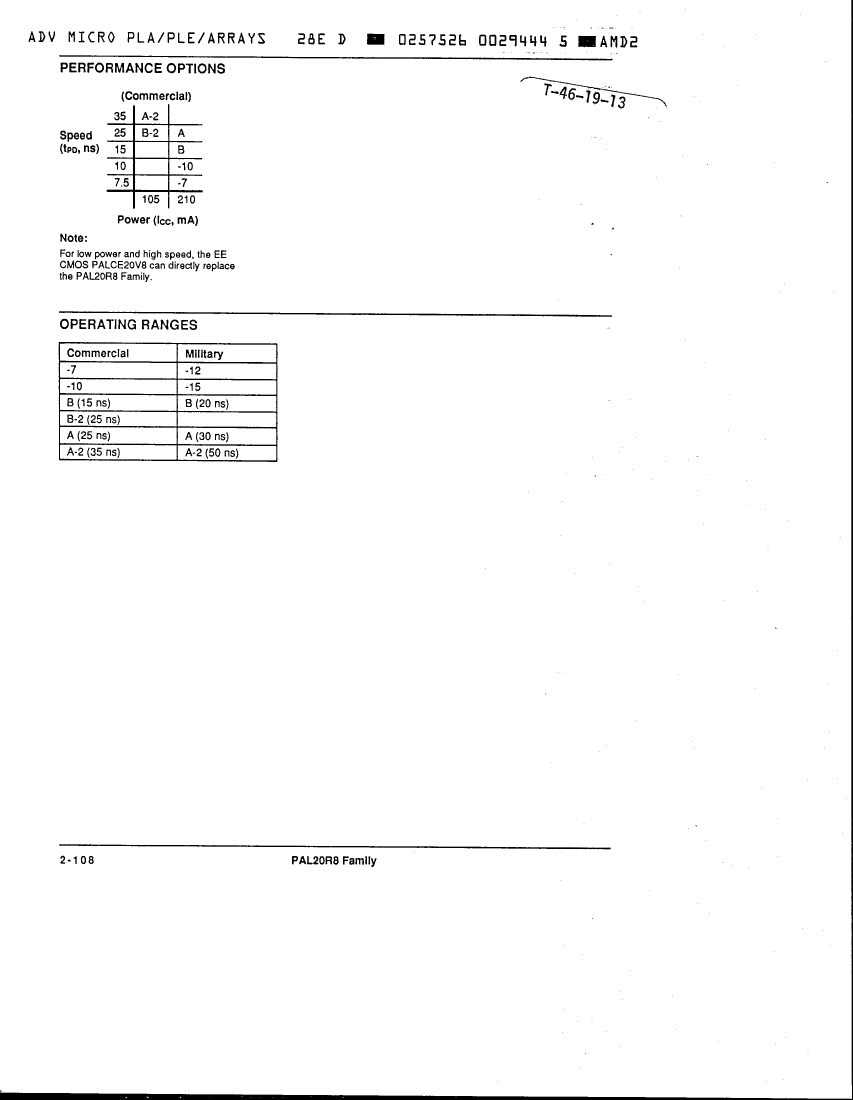

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| package instruction | QCCJ, LDCC28,.5SQ |
| Reach Compliance Code | unknown |
| Architecture | PAL-TYPE |
| JESD-30 code | S-PQCC-J28 |
| JESD-609 code | e0 |
| Number of entries | 20 |
| Output times | 8 |
| Number of product terms | 64 |
| Number of terminals | 28 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output function | COMBINATORIAL |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC28,.5SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Programmable logic type | OT PLD |
| propagation delay | 35 ns |
| Certification status | Not Qualified |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| PAL20L8A2CNL | DIP1999022640DG | PAL20L8A2CNS | PAL20L8A2CJS | |
|---|---|---|---|---|
| Description | OT PLD, 35ns, PAL-Type, TTL, PQCC28 | Array/Network Resistor, Isolated, 0.2W, 264ohm, 100V, 0.5% +/-Tol, -50,50ppm/Cel, 8025, | OT PLD, 35ns, PAL-Type, TTL, PDIP24, | OT PLD, 35ns, PAL-Type, TTL, CDIP24, |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible |
| Reach Compliance Code | unknown | compliant | unknown | unknown |
| JESD-609 code | e0 | e4 | e0 | e0 |
| Number of terminals | 28 | 16 | 24 | 24 |
| Maximum operating temperature | 70 °C | 150 °C | 70 °C | 70 °C |
| Package form | CHIP CARRIER | DIP | IN-LINE | IN-LINE |
| Terminal surface | Tin/Lead (Sn/Pb) | Gold (Au) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maker | AMD | - | AMD | AMD |
| package instruction | QCCJ, LDCC28,.5SQ | - | DIP, DIP24,.3 | DIP, DIP24,.3 |
| Architecture | PAL-TYPE | - | PAL-TYPE | PAL-TYPE |
| JESD-30 code | S-PQCC-J28 | - | R-PDIP-T24 | R-XDIP-T24 |
| Number of entries | 20 | - | 20 | 20 |
| Output times | 8 | - | 8 | 8 |
| Number of product terms | 64 | - | 64 | 64 |
| Output function | COMBINATORIAL | - | COMBINATORIAL | COMBINATORIAL |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | QCCJ | - | DIP | DIP |
| Encapsulate equivalent code | LDCC28,.5SQ | - | DIP24,.3 | DIP24,.3 |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR |
| power supply | 5 V | - | 5 V | 5 V |
| Programmable logic type | OT PLD | - | OT PLD | OT PLD |
| propagation delay | 35 ns | - | 35 ns | 35 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified |
| Nominal supply voltage | 5 V | - | 5 V | 5 V |
| surface mount | YES | - | NO | NO |
| technology | TTL | - | TTL | TTL |
| Temperature level | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Terminal form | J BEND | - | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | - | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | - | DUAL | DUAL |
