TGL41-350 datasheet, PDF - EEWORLD Datasheet

TGL41-350: Description400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-213AB; CategoryDiscrete semiconductor diode; File Size246KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric View All

TGL41-350 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TGL41-350	-	-	View	Buy Now

400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-213AB

Parameter Name	Attribute value
Maker	SEMIKRON
Parts packaging code	DO-213AB
package instruction	O-PELF-R2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	385 V
Minimum breakdown voltage	315 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-213AB
JESD-30 code	O-PELF-R2
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	284 V
surface mount	YES
technology	AVALANCHE
Terminal form	WRAP AROUND
Terminal location	END

TGL 41-6.8 ... TGL 41-400CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

TGL 41-6,8 ... TGL 41-400CA

Pulse Power

Dissipation: 400 W

Stand-off

voltage: 5,5...342 V

Features

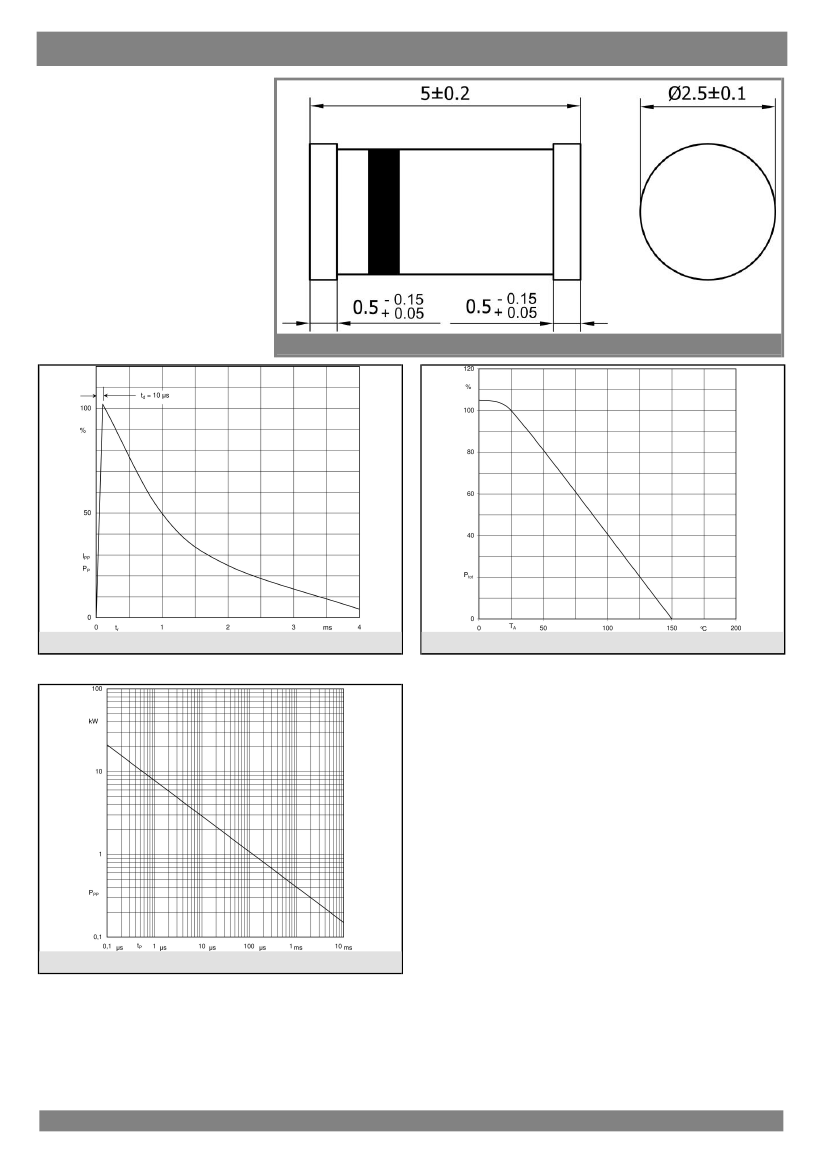

Mechanical Data

1)

2)

3)

1

13-06-2008 MAM
