BK/MDL-4: DescriptionElectric Fuse, Time Lag Blow, 4A, 200A (IR), 3AG,; CategoryCircuit protection Circuit protection; File Size120KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/MDL-4 Overview

Electric Fuse, Time Lag Blow, 4A, 200A (IR), 3AG,

BK/MDL-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	Electric Fuse
Fuse size	3AG
Joule integral nominal	203 J
physical size	6.35mm x 31.75mm
Pre-discharge rating	181.9 A2/s
Rated breaking capacity	200 A
Rated current	4 A
Rated voltage	250 V
Guideline	CSA, UL
Terminal shape	END CAP

Preview

Download Datasheet

View All

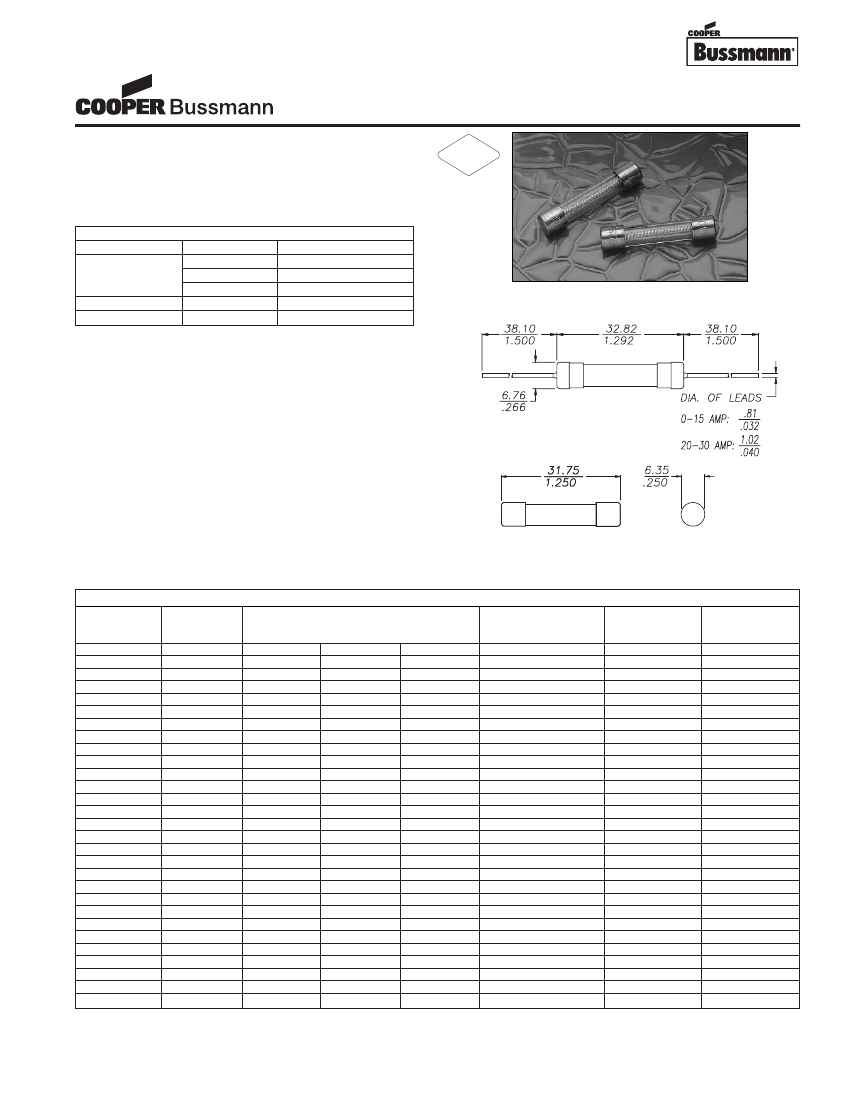

1/4" x 1-1/4" Fuses

MDL Series, Time Delay, Glass Tube

Description

• Time delay, glass tube

• Optional axial leads available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

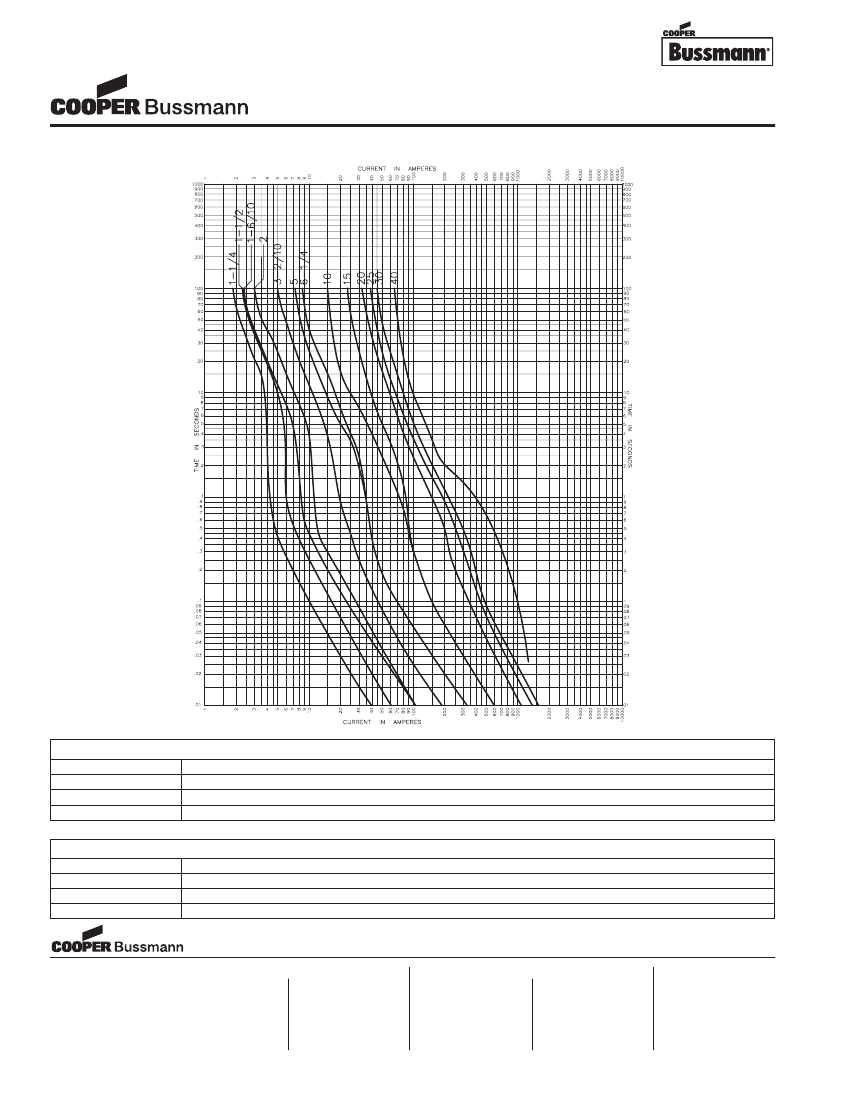

ELECTRICAL CHARACTERISTICS

Amp Rating

Opening Time

Rated Current

100%

None

1/16 - 30A

135%

60 minutes max.

200%

120 seconds max.

1/16 - 3A

200%

5 seconds min.

3-2/10 - 8A

200%

12 seconds min.

RoHS

2002/95/EC

Dimensions

(

mm

⁄

in

)

Drawing Not to Scale

Agency Information

• UL Listed Card: MDL 1/16 - 8A (Guide JDYX, File E19180)

• UL Recognized Card: MDL 9 - 30A (Guide JDYX2,

File E19180)

• CSA Certification Card: MDL 1/16 - 8A

(Class No. 1422-01)

• CSA Component Acceptance: MDL 9-30A

(Class No. 1422-30)

Environmental Data

• Shock: 1/100A and 8/10A – MIL-STD-202,

Method 213, Test Condition I; 1A thru 30A –

MIL-STD-202, Method 207, (HI Shock)

• Vibration: 1/100A and 8/10A – MIL-STD-202,

Method 201; 1/4A thru 30A – MIL-STD-202,

Method 204, Test Condition C (Except 5g, 500HZ)

Ordering

• Specify packaging, product, and option code

Voltage

Rating

AC

250V

32V

AC Interrupting

Rating*

125V

10000A

-

SPECIFICATIONS

32V

-

1000A

Product Code

MDL-1/16

MDL-1/10

MDL-1/8

MDL-3/16

MDL-2/10

MDL-1/4

MDL-3/10

MDL-3/8

MDL-1/2

MDL-3/4

MDL-1

MDL-1-1/4

MDL-1-1/2

MDL-2

MDL-2-1/4

MDL-2-1/2

MDL-3

MDL-4

MDL-5

MDL-6

MDL-6-1/4

MDL-7

MDL-8

MDL-9

MDL-10

MDL-15

MDL-20

MDL-25

MDL-30

*

**

†

‡

250V

35A

100A

200A

-

Typical DC Cold

Resistance**

(ohms)

38.000

15.900

9.850

4.680

4.115

3.200

2.300

2.800

1.725

0.822

0.525

0.320

0.250

0.173

0.068

0.096

0.067

0.035

0.023

0.018

0.011

0.009

0.008

0.006

0.002

0.001

Typical

Melting I

2

t†

AC

0.0046

0.0420

0.0422

0.116

0.314

0.447

0.412

0.982

1.656

4.343

11.498

86.2

22.7

62.3

49.6

63.1

67.5

19.3

32.0

37.4

38.7

42.7

47.8

51.5

64.4

354.0

2914.0

15221.0

15581.0

Typical

Voltage

Drop‡

2.79

1.95

1.52

1.05

0.972

0.965

0.808

1.46

1.27

1.01

0.995

0.722

0.721

0.644

0.535

0.410

0.345

0.187

0.160

0.155

0.152

0.140

0.119

0.124

0.114

0.130

0.530

0.30

0.40

Interrupting Ratings (Interrupting ratings were measured at 70% - 80% power factor on AC)

DC Cold Resistance (Measured at

≤10%

of rated current)

Typical Melting I

2

t (A

2

Sec) (I

2

t was measured at listed interrupting rating and rated voltage.)

Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

BK/MDL-4 Related Products

	BK/MDL-4	BK/MDL-1-6/10	BK/MDL-1-8/10	BK/MDL-1-1/2	BK/MDL-6-1/4	BK/MDL-7	BK/MDL-8
Description	Electric Fuse, Time Lag Blow, 4A, 200A (IR), 3AG,	Electric Fuse, Time Delay Blow, 1.6A, 250VAC, 32VDC, 100A (IR), Inline/holder,	Electric Fuse, Time Delay Blow, 1.8A, 250VAC, 32VDC, 100A (IR), Inline/holder,	Electric Fuse, Time Delay Blow, 1.5A, 250VAC, 32VDC, 100A (IR), Inline/holder,	Electric Fuse, Time Delay Blow, 6.25A, 250VAC, 32VDC, Inline/holder,	Electric Fuse, Time Lag Blow, 7A, 200A (IR), 3AG,	Electric Fuse, Time Lag Blow, 8A, 200A (IR), 3AG,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	TIME LAG	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME LAG	TIME LAG
body height	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	Electric Fuse	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	Electric Fuse	Electric Fuse
physical size	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm
Rated current	4 A	1.6 A	1.8 A	1.5 A	6.25 A	7 A	8 A
Guideline	CSA, UL	CE	CE	CE	CE	CSA, UL	CSA, UL
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Rated breaking capacity	200 A	100 A	100 A	100 A	-	200 A	200 A
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	-	-
Other features	-	PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT	PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT	PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT	PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT	-	-
Installation features	-	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	-	-
method of packing	-	BULK	BULK	BULK	BULK	-	-
Rated voltage (AC)	-	250 V	250 V	250 V	250 V	-	-
Rated voltage (DC)	-	32 V	32 V	32 V	32 V	-	-
surface mount	-	NO	NO	NO	NO	-	-
