D02PBMRT-0024 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D02PBMRT-0024

Preview

D02PBMRT-0024: DescriptionCircular Connector, 4 Contact(s), Polycarbonate, Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size122KB，2 Pages; ManufacturerHypertronics Corporation

Download Datasheet Parametric Compare View All

D02PBMRT-0024 Overview

Circular Connector, 4 Contact(s), Polycarbonate, Male, Crimp Terminal, Plug,

D02PBMRT-0024 Parametric

Parameter Name	Attribute value
Maker	Hypertronics Corporation
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS: YPN015-038G; YPN015-038H; YPN005-049G; YPN005-049H, OPTIONAL 5 SIGNAL POSITIONS
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	D02EEBFRTAH-0022
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	POLYCARBONATE
Termination type	CRIMP
Total number of contacts	4

Preview

Download Datasheet

View All

ARINC 628

ARINC 628 Circular

Connectors

•

Industry standard

2 Power and 2 signal contacts

Optional 5 signal positions

Quick disconnect push button release

Alignment and keying provided by housing

Crimp contacts

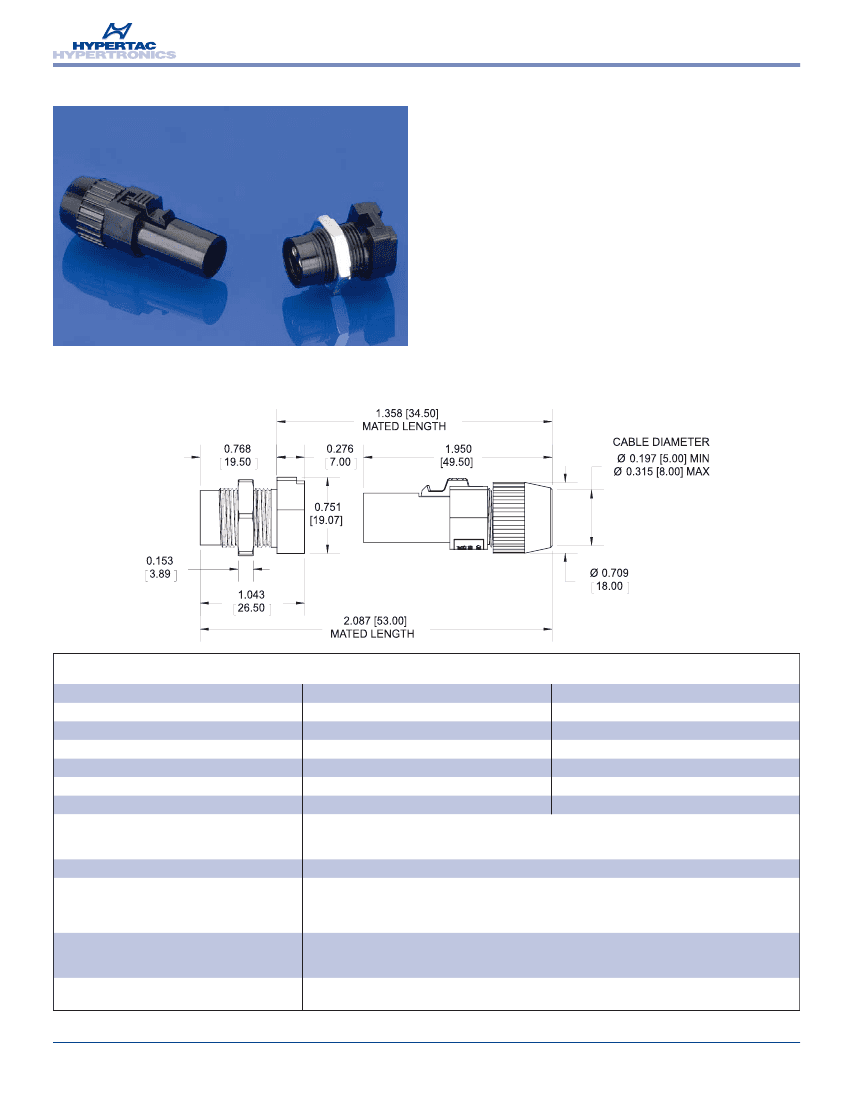

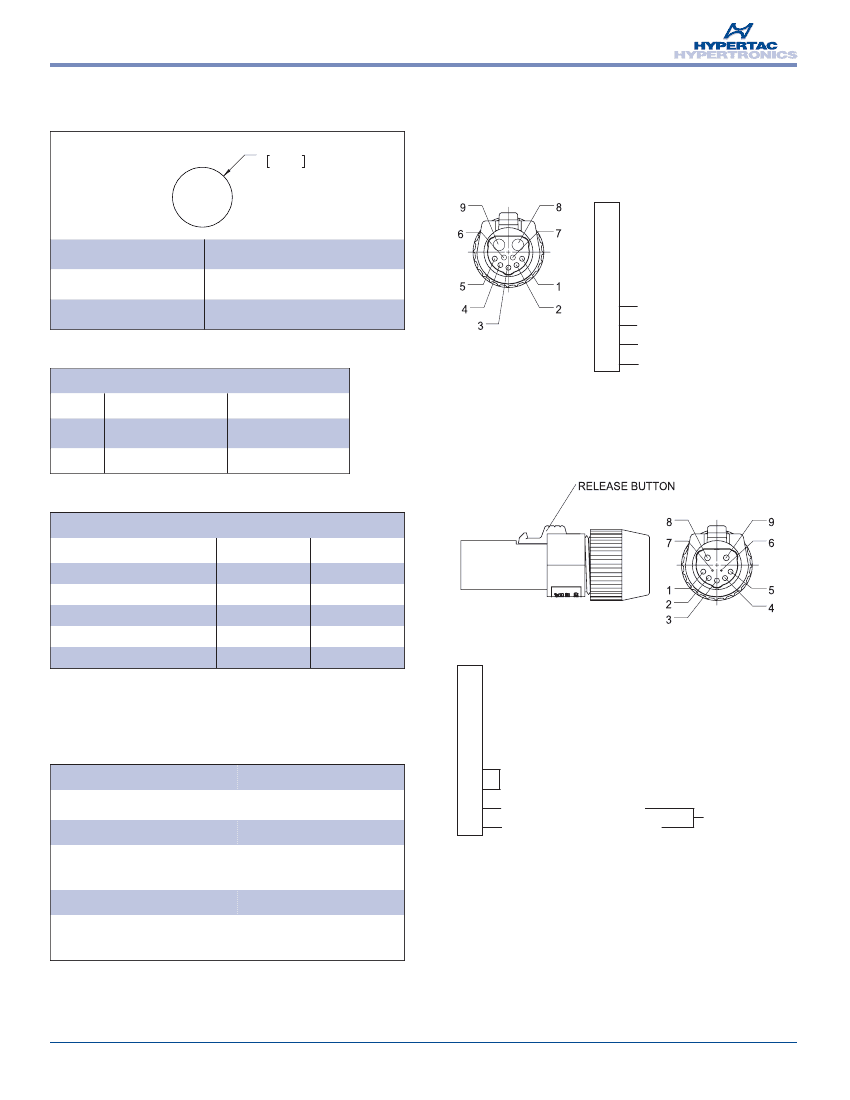

Connector Dimensions

EE = Receptacle (Panel Mount)

P = Plug (Cable)

General Specifications

Contacts

Number of Contacts

Diameter

Current Rating (Amps)

Wire Size (AWG)

Contact Resistance

Insertion / Extraction Force Per Contact

Insulator Material

Receptacle

Plug

Flammability

Contact Plating

Male Pins

Female Sockets

Contact Material

Pins

Sockets

Temperature Rating

Insulation Resistance

Power

2

0.059 [1.50]

8

16 – 20

< 2.0 milliohms

1.8 to 5.4 oz.

Signal

2

0.018 [0.50]

2.50

22 – 26

< 8.0 milliohms

0.3 to 1.6 oz.

Polycarbonate

UL94V0

G = 10µin gold (min) over nickel

H = 50µin gold (min) over nickel

AH = 50µin gold (min) over nickel on mating surface, gold flash over nickel on termination

Brass

Beryllium copper wires and brass body

-40° C to 85° C

> 10 Mohm at 500 VDC

Dimensions are in inches [mm]

www.hypertronics.com

2/1

D02PBMRT-0024 Related Products

	D02PBMRT-0024	D02EEBFRTAH-0022	D02PBMRTH-0025
Description	Circular Connector, 4 Contact(s), Polycarbonate, Male, Crimp Terminal, Plug,	Circular Connector, 4 Contact(s), Polycarbonate, Female, Crimp Terminal, Receptacle,	Circular Connector, 4 Contact(s), Polycarbonate, Male, Crimp Terminal, Plug,
Maker	Hypertronics Corporation	Hypertronics Corporation	Hypertronics Corporation
Reach Compliance Code	unknown	unknown	unknown
Other features	COMPATIBLE CONTACTS: YPN015-038G; YPN015-038H; YPN005-049G; YPN005-049H, OPTIONAL 5 SIGNAL POSITIONS	COMPATIBLE CONTACTS: YSK015-053AH; YSK005-036AH, OPTIONAL 5 SIGNAL POSITIONS	COMPATIBLE CONTACTS: YPN015-038G; YPN015-038H; YPN005-049G; YPN005-049H, OPTIONAL 5 SIGNAL POSITIONS
Back shell type	SOLID	SOLID	SOLID
Body/casing type	PLUG	RECEPTACLE	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	MALE	FEMALE	MALE
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Plug information	D02EEBFRTAH-0022	MULTIPLE MATING PARTS AVAILABLE	D02EEBFRTAH-0022
Mixed contacts	YES	YES	YES
Installation type	CABLE	PANEL	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	GOLD	GOLD	GOLD
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	4	4	4
