Power line chokes
Current-compensated ring core double chokes
250 V AC, 0.5 … 8 A, 0.45 … 56 mH
Series/Type:
Date:
B82723A/J
February 2014
a~í~=pÜÉÉí
¤
EPCOS AG 2014. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Power line chokes
Current-compensated ring core double chokes
Rated voltage 250 V AC
Rated current 0.5 ... 8 A
Rated inductance 0.45 ... 56 mH

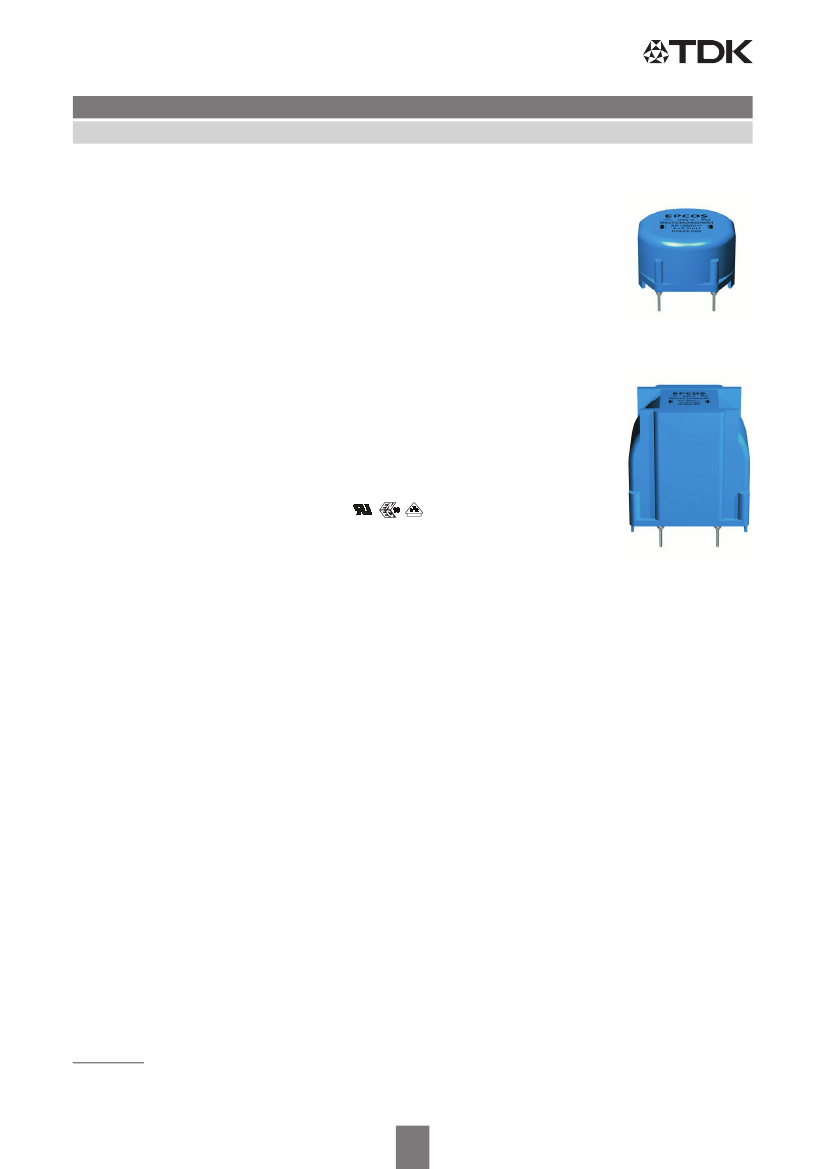

Construction
■
■
■
■
■
B82723A/J
Current-compensated ring core double choke
Ferrite core wih epoxy coating (UL 94 V-0)
Plastic case (UL 94 V-0)
Polyurethane potting (UL 94 V-0)
Sector winding
B82723A
Features
■
■
■
■
■
■
High resonance frequency due to special winding technique
Approx. 1% stray inductance for symmetrical interference suppression
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
UL
1)
and/or ENEC (VDE) approvals
RoHS-compatible
B82723J
Applications
■
■
■
■
Suppression of common-mode interferences
Switch-mode power applications
Electronic ballasts in lamps
Power inverters
Terminals
■
■
■
■
■
Base material CuNi18Zn20
Layer composition Ni, Sn
Hot-dipped
Pins 0.7
u
0.7 (mm)
Lead spacing 15
u
12.5 (mm) or 25
u
15 (mm)
Marking
■
Manufacturer, approval signs and/or VDE standard number,
ordering code, graphic symbol, rated current, rated voltage,
rated inductance, date of manufacture (YYWWD.internal ID code)
Delivery mode
■
Blister tray in cardboard box
1) UL approval with 300 V AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
02/14
Power line chokes
Current-compensated ring core double chokes
Dimensional drawings and pin configurations
Horizontal version (B82723A)
2.5
_
0.4
2
3
B82723A/J
0.7
4+1
16.8
_
0.8
1
27 max.
2
4 15±0.2
3
1
4
IND0256-9
Vertical version (B82723J)
12.5±0.2
2.5
_
0.4
22.8
_
0.5
1
15±0.2
4
4+1
30.5
_
0.8
18.6 max.
2
3
1
IND0257-H
Tolerances to ISO 2768-cL unless otherwise noted.
Dimensions in mm.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
28 max.
4
2
3
0.7
28 max.
25±0.2
3
02/14
Power line chokes
Current-compensated ring core double chokes
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
250 V AC (50/60 Hz)
1500 V AC, 2 s (line/line)
+40 °C / +60 °C / +70 °C
Referred to 50 Hz and rated temperature
B82723A/J
Measured with Agilent 4284A at 0.1 mA, +20 °C
Measuring frequency: L
R
d
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Inductance is specified per winding.
r30%
at +20 °C
< 10% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 5 mA, +20 °C, typical
values
Measuring frequency: L
R
d
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Measured at +20 °C, typical values, specified per win-
ding
Sn96.5Ag3.0Cu0.5: +(245
r5)
°C, (3
r0.3)
s
Wetting of soldering area
t
95%
(to IEC 60068-2-20, test Ta)
+(260
r5)
°C, (10
r1)
s
(to IEC 60068-2-20, test Tb)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
d
75% RH
Approx. 18 g
EN 60938-2, UL 1283
Inductance tolerance
Inductance decrease
'L/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
(wave soldering)
Climatic category
Storage conditions (packaged)
Weight
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
02/14
Power line chokes
Current-compensated ring core double chokes
Characteristics and ordering codes
I
R
A
0.5
0.6
0.6
0.6
1.0
1.0
1.4
2.0
4.0
6.0
8.0
L
R
mH
56
47
39
39
39
27
27
5.6
2.7
1.0
0.45
L
stray,typ
R
typ
PH
800
650
430
430
430
440
270
70
30
12
5
m:
2100
1650
1100
1100
750
750
440
160
60
22
11
T
R
°C
+60
+70
+60
+60
+40
+60
+40
+60
+60
+70
+60
Ordering code
Horizontal version
Vertical version
B82723A/J
Approvals
u
–
u
–
u
u
u
u
u
u
–
B82723A2501N001 B82723J2501N001
u
B82723A2601N001 B82723J2601N001 –
B82723A2601N002 –
–
–
B82723J2601N002 –
B82723A2102N002 B82723J2102N002
u
B82723A2102N001 B82723J2102N001
u
B82723A2142N020 B82723J2142N020
u
B82723A2202N001 B82723J2202N001
u
B82723A2402N001 B82723J2402N001
u
B82723A2602N001 B82723J2602N001
u
B82723A2802N001 B82723J2802N001 –
u
= approval granted

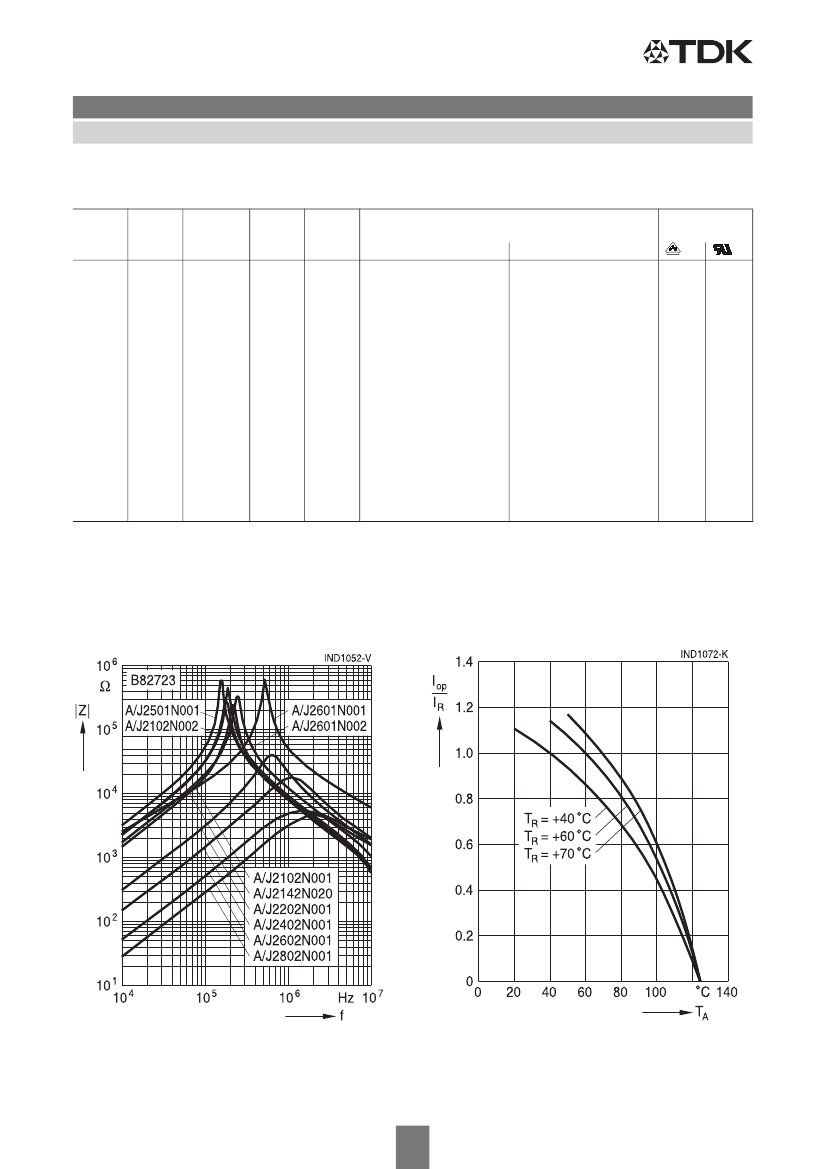

Impedance |Z| versus frequency f
measured with windings in parallel at +20 °C,
typical values
Current derating I
op
/I
R
versus ambient temperature T
A
