DFVS5-KHR24.576MHZ80XB50 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFVS5-KHR24.576MHZ80XB50

DFVS5-KHR24.576MHZ80XB50: DescriptionHCMOS Output Clock Oscillator, 24.576MHz Nom, PLASTIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size84KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFVS5-KHR24.576MHZ80XB50 Overview

HCMOS Output Clock Oscillator, 24.576MHz Nom, PLASTIC, SMD, 4 PIN

DFVS5-KHR24.576MHZ80XB50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
package instruction	PLASTIC, SMD, 4 PIN
Reach Compliance Code	compliant
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	50%
Manufacturer's serial number	DFVS5-KH
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	14.0mm x 9.8mm x 4.7mm
longest rise time	8 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

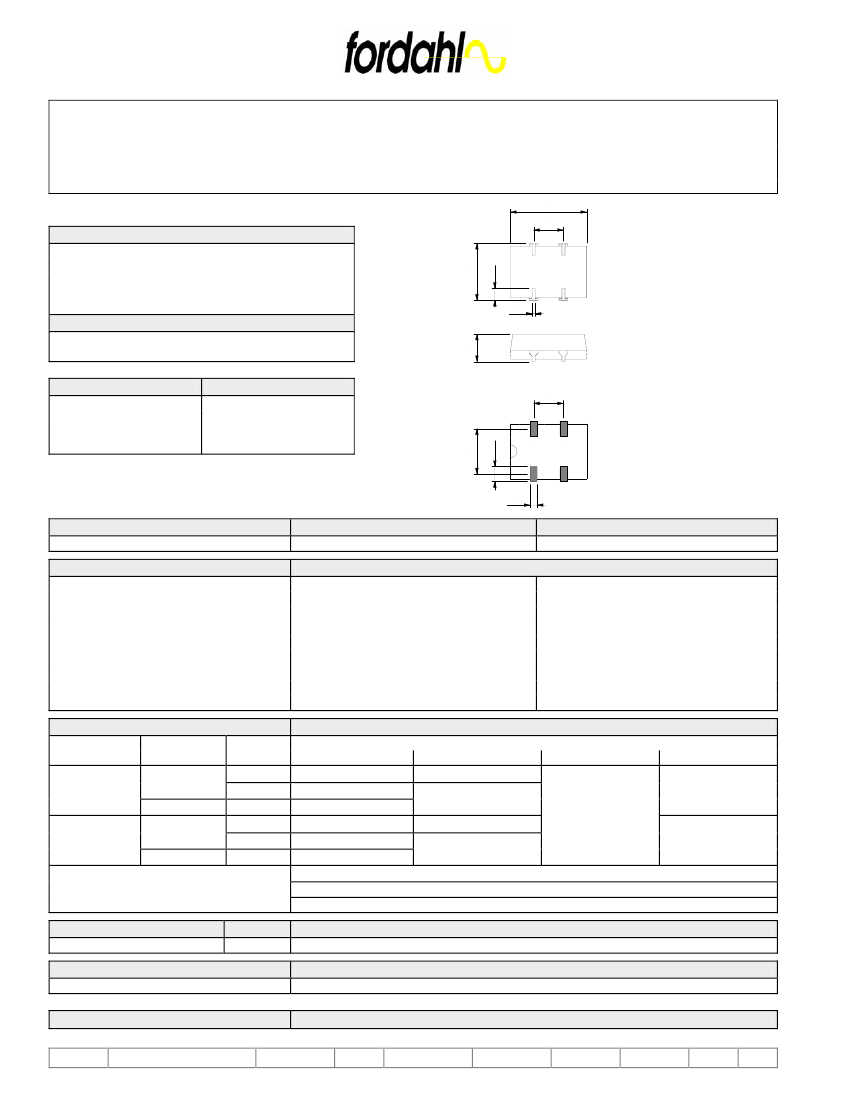

FREQUENCY CONTROL PRODUCTS

LOW COST PLASTIC SMD VCXO

DFV S5-KH (5 V) & DFV S5-LH (3.3 V)

14.0 MAX

KEY FEATURES

2.0

5.08

1.6 to 33 MHz

Standard molded package

APPLICATIONS

Datacomms/Switching

Function

V control

GND

Output

Vcc

9.8 MAX

0.5

4.7 MAX

DFV S5

5.08

7.62

2.5

PC board footprint

1.0

TYPE

Frequency Range

DFV S5-KH

1.6 to 33 MHz

5V±5%

≤

50 mA

15 pF

40/60...60/40 % @ 50% level

20 to 80 % :

≤

8 ns

≥

4.5 V/

≤

0.5 V

≤

6 ms @ 4.75 V

DFV S5-LH

1.6 to 33 MHz

3.3 V ± 5 %

≤

35 mA

15 pF

40/60...60/40 % @ 50% level

20 to 80 % :

≤

8 ns

≥

2.7 V/

≤

0.4 V

≤

6 ms @ 3.15 V

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load (HCMOS)

duty cycle

rise/fall times (@ 15 pF load)

high/low levels

start up

FREQUENCY STABILITY

type

DFV S5-KH

temperature

range

0 to 70°C

-40 to 85°C

DFV S5-LH

0 to 70°C

-40 to 85°C

remarks

model

code

80XB50

100XB50

100XE50

80XB50

100XB50

100XE50

overall stability

≤

± 50

≤

± 50

≤

± 50

≤

± 50

≤

± 50

≤

± 50

tolerances [ ppm ]

pulling range

≥

± 80

≥

± 100

≥

± 80

≥

± 100

positive

1.65 V ± 1.35 V

function

control voltage

2.5 V ± 2 V

input impedance

≥

10 kΩ

includes 25°C at calibration, temperature, ageing, Vcc and load changes

ageing is 1

year at 25°C

CODE

45/55…55/45 %

OPTIONS

tight symmetry

ORDERING CODE

Example

type + option code + frequency + model code

DFV S5-LH 24.576 MHz 100XB50

IMPORTANT NOTE

TYPE

DFV S5-KH & LH

THIS PRODUCT IS DESIGNED FOR VOLUME APPLICATION ONLY

REVISION

CHECKED

DATE

11.10.2002

PAGE
