HX6218DENC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HX6218DENC

HX6218DENC: DescriptionFIFO, 2KX18, 30ns, Synchronous, CMOS, CQFP68, CERAMIC, QFP-68; Categorystorage storage; File Size718KB，15 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HX6218DENC Overview

FIFO, 2KX18, 30ns, Synchronous, CMOS, CQFP68, CERAMIC, QFP-68

HX6218DENC Parametric

Parameter Name	Attribute value
Maker	Honeywell
Parts packaging code	QFP
package instruction	QFF, QFP68,.99SQ,50
Contacts	68
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	30 ns
Maximum clock frequency (fCLK)	29.4 MHz
period time	36 ns
JESD-30 code	S-CQFP-F68
length	24.13 mm
memory density	36864 bit
Memory IC Type	OTHER FIFO
memory width	18
Number of functions	1
Number of terminals	68
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX18
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Encapsulate equivalent code	QFP68,.99SQ,50
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.5908 mm
Maximum standby current	0.0005 A
Maximum slew rate	0.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.13 mm

Preview

Download Datasheet

View All

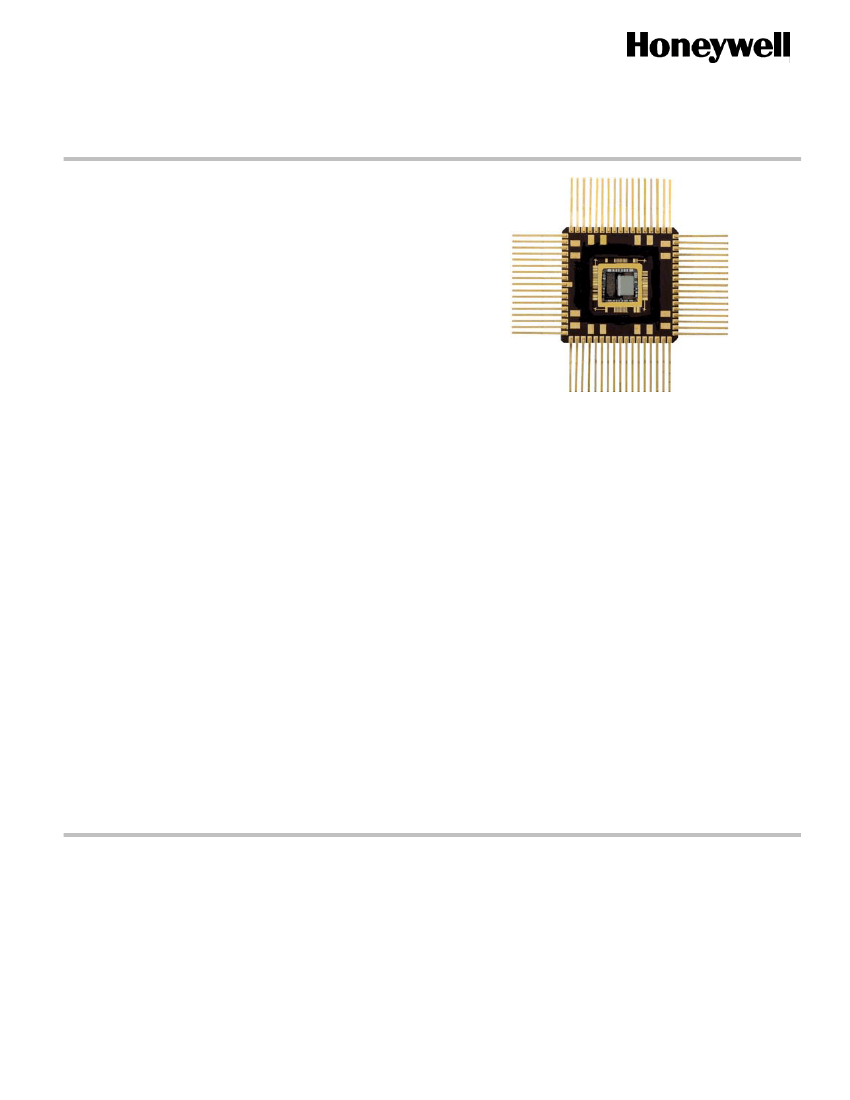

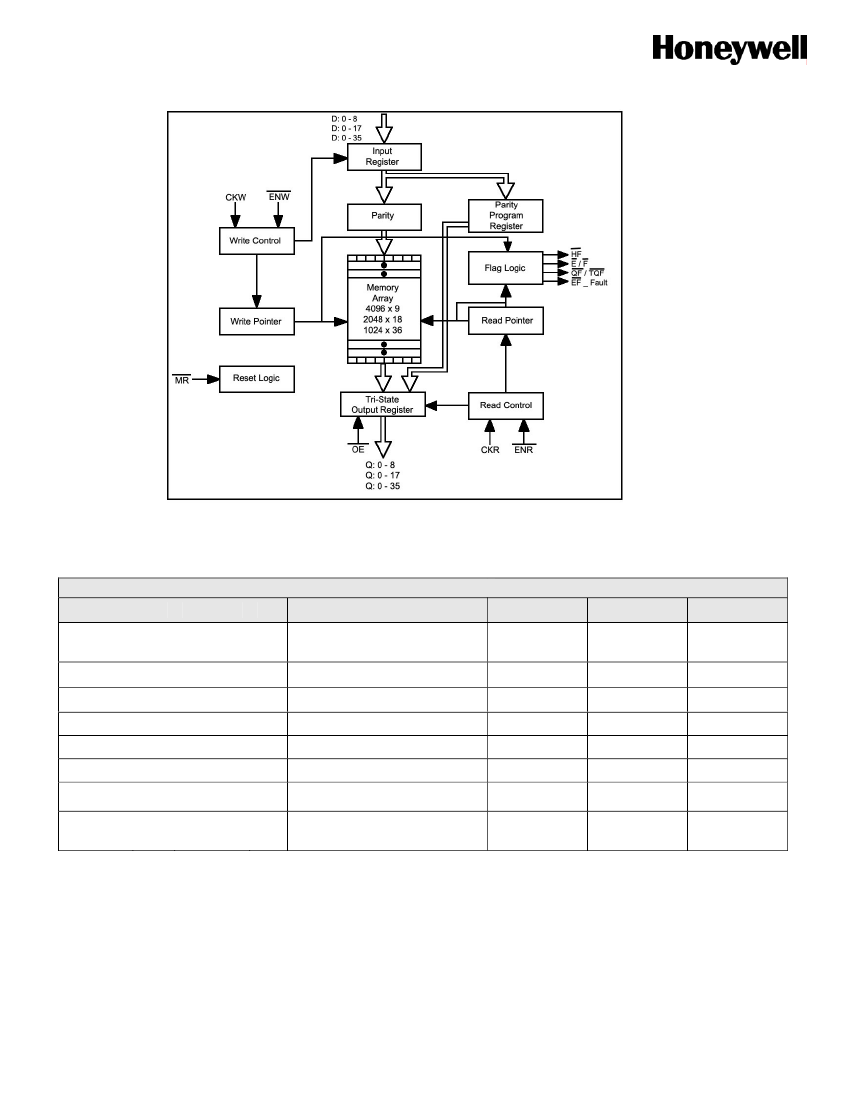

FIFO – HX6409/HX6218/HX6136

First-In First-Out Memory

HX6409/HX6218/HX6136

The HX6409, HX6218, and HX6136 are high speed,

low power, first-in first-out memories with clocked read

and write interfaces. The HX6409 is a 4096-word by 9-

bit memory array; the HX6218 is a 2048-word by 18-bit

memory array; and the HX6136 is a 1024-word by 36-

bit memory array. The FIFOs support width expansion

while depth expansion requires external logic control

using state machine techniques. Features include

programmable parity control, an empty/full flag, a

quarter/three quarter full flag, a half full flag and an

error flag.

Honeywell’s FIFOs provide solutions for a wide variety

of data buffering needs, including high-speed data

acquisition, multiprocessor interfaces, and

communications buffering.

Input ports are controlled by a free running clock (CKW)

and a write-enable pin ENW. When ENW is asserted,

data is written into the FIFO on the rising edge of the

CKW signal. While ENW is held active, data is

continually written into the FIFO on each CKW cycle.

The output port is controlled in a similar manner by a

freerunning read clock (CKR) and a read enable pin

(ENR). In addition, the three FIFOs have an output

enable pin (OE) and a master reset pin (MR). The read

(CKR) and write (CKW) clocks may be tied together for

Honeywell’s enhanced SOI RICMOS™ IV (Radiation

Insensitive CMOS) technology is radiation hardened

through the use of advanced and proprietary design,

layout and process hardening techniques. The FIFO is

fabricated with Honeywell’s radiation-hardened

technology, and is designed for use in systems

operating in radiation environments. The SOI

RICMOS™ IV process is a 5-volt, SOI CMOS

technology with a 150 Å gate oxide and a minimum

drawn feature size of 0.8µm, (0.65µm effective gate

length—L

eff

). Additional features include tungsten via

plugs, Honeywell’s proprietary SHARP planarization

process, and a lightly doped drain (LDD) structure.

single-clock operation or the two clocks may be run

independently for asynchronous read/write applications.

Clock frequencies up to 28 MHz are achievable in the

three configurations.

FEATURES

1K x 36, 2K x 18, 4K x 9

configurations

Fabricated with RICMOS™ IV

Silicon on Insulator (SOI) 0.8

µm process (Leff = 0.65µm)

Total dose hardness through

1x10

rad(Si)

Neutron hardness through

1x10

-2

Dynamic and static transient

upset hardness through 1x10

rad(Si)/s

Dose rate survivability through

1x10

rad(Si)/s

Soft error rate of <1x10

-10

upsets/bit-day

No latchup

Read/write cycle times

36 ns (-55°to 125°C)

Expandable in Width

Empty, full, half full, 1/4 full,

¾ full, error flags

Parity generation/checking

Fully asynchronous with

simultaneous read and write

operation

Output enable (OE)

CMOS or TTL compatible I/O

Single 5V ±10% power supply

Various flat pack options

www.honeywell.com

HX6218DENC Related Products

	HX6218DENC	HX6136FENC	HX6409TENC	HX6218DENT	HX6136FENT	HX6409TENT
Description	FIFO, 2KX18, 30ns, Synchronous, CMOS, CQFP68, CERAMIC, QFP-68	FIFO, 1KX36, 30ns, Synchronous, CMOS, CQFP132, CERAMIC, QFP-132	FIFO, 4KX9, 30ns, Synchronous, CMOS, CDFP32, CERAMIC, DFP-32	FIFO, 2KX18, 30ns, Synchronous, CMOS, CQFP68, CERAMIC, QFP-68	FIFO, 1KX36, 30ns, Synchronous, CMOS, CQFP132, CERAMIC, QFP-132	FIFO, 4KX9, 30ns, Synchronous, CMOS, CDFP32, CERAMIC, DFP-32
Parts packaging code	QFP	QFP	DFP	QFP	QFP	DFP
package instruction	QFF, QFP68,.99SQ,50	GQFF, TPAK132,2.5SQ,25	DFP, FL32,.6	QFF, QFP68,.99SQ,50	GQFF, TPAK132,2.5SQ,25	DFP, FL32,.6
Contacts	68	132	32	68	132	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	30 ns	30 ns	30 ns	30 ns	30 ns	30 ns
Maximum clock frequency (fCLK)	29.4 MHz	29.4 MHz	29.4 MHz	29.4 MHz	29.4 MHz	29.4 MHz
period time	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns
JESD-30 code	S-CQFP-F68	S-CQFP-F132	R-CDFP-F32	S-CQFP-F68	S-CQFP-F132	R-CDFP-F32
length	24.13 mm	24.13 mm	20.828 mm	24.13 mm	24.13 mm	20.828 mm
memory density	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	18	36	9	18	36	9
Number of functions	1	1	1	1	1	1
Number of terminals	68	132	32	68	132	32
word count	2048 words	1024 words	4096 words	2048 words	1024 words	4096 words
character code	2000	1000	4000	2000	1000	4000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX18	1KX36	4KX9	2KX18	1KX36	4KX9
Exportable	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF	GQFF	DFP	QFF	GQFF	DFP
Encapsulate equivalent code	QFP68,.99SQ,50	TPAK132,2.5SQ,25	FL32,.6	QFP68,.99SQ,50	TPAK132,2.5SQ,25	FL32,.6
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK, GUARD RING	FLATPACK	FLATPACK	FLATPACK, GUARD RING	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.5908 mm	2.7686 mm	3.81 mm	2.5908 mm	2.7686 mm	3.81 mm
Maximum standby current	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A
Maximum slew rate	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	0.635 mm	1.524 mm	1.27 mm	0.635 mm	1.524 mm
Terminal location	QUAD	QUAD	DUAL	QUAD	QUAD	DUAL
width	24.13 mm	24.13 mm	15.24 mm	24.13 mm	24.13 mm	15.24 mm
Maker	Honeywell	Honeywell	-	Honeywell	Honeywell	Honeywell
